Key Takeaways
Understanding titanium powder specifications is crucial for successful additive manufacturing, as the right material choice directly impacts part performance, cost-effectiveness, and regulatory compliance across aerospace, medical, and industrial applications.
• Grade selection drives performance: Ti-6Al-4V Grade 5 offers maximum strength for aerospace, while Grade 23 (ELI) provides superior biocompatibility for medical implants with lower oxygen content (0.13% vs 0.20%).
• Particle size must match your equipment: Laser-based systems (SLM/DMLS) require 15-45 μm powder, while electron beam melting uses coarser 45-105 μm distributions for optimal processing.
• Oxygen content is critical: Keep oxygen below 0.15 wt% for most applications, as higher levels reduce ductility and increase crack sensitivity in final parts.
• Sphericity above 0.92 ensures flowability: Spherical morphology with 0.93+ sphericity provides consistent powder bed spreading and uniform layer deposition during printing.
• Certification requirements vary by industry: Medical applications need ISO 13485:2016 compliance, aerospace requires AS9100D, while all grades must meet ASTM B348 and ISO 23301 standards.
Gas atomization remains the industry standard for producing spherical titanium powder, though plasma atomization offers higher yields of fine particles. Proper storage under inert atmospheres and safety protocols are essential due to titanium powder’s pyrophoric nature.
Titanium powder stands out as a versatile metallic material valued for its exceptional combination of high strength, low density, and corrosion resistance. Tensile strength ranges from approximately 240 MPa in Grade 1 to nearly 900 MPa in Grade 5. This gives designers remarkable flexibility for performance requirements. Titanium powder for 3d printing has then become critical for producing complex, high-performance components in aerospace, medical and automotive manufacturing.
You need to understand titanium grades, particle specifications and production standards to select the appropriate titanium powder additive manufacturing material. Spherical titanium powder morphology, chemical composition and compatibility with specific equipment (SLM, DMLS, or EBM) substantially affect final part performance. This piece explores titanium grades in detail and practical selection criteria that help manufacturers choose the optimal material for their applications.
Titanium Powder Grades for Additive Manufacturing
Ti-6Al-4V Grade 5: Industry Standard for High-Strength Applications
Grade 5 titanium powder represents the most commonly used titanium alloy in additive manufacturing. It accounts for over half of global titanium consumption. This alpha-beta alloy contains approximately 6% aluminum and 4% vanadium, with titanium as the balance. The material delivers high tensile strength while maintaining low specific weight. This makes it suitable for load-bearing structural components.
This grade withstands temperatures up to 300 degrees Celsius. Post-processing through welding and heat treatment can boost printed part strength. The chemical composition permits a maximum oxygen content of 0.20%. This is higher than medical-grade variants. Aerospace manufacturers specify Grade 5 for engine components and fuselage structural parts. Automotive applications include high-performance exhaust systems and suspension elements.
Ti-6Al-4V Grade 23 (ELI): Medical-Grade Titanium Powder
Ti-6Al-4V ELI (Extra Low Interstitials) maintains the same base composition as Grade 5 but enforces stricter purity requirements. The designation “ELI” refers to reduced interstitial element content. Oxygen is limited to a maximum of 0.13% compared to 0.20% in Grade 5. This lower oxygen content produces higher ductility and superior fracture resistance, though at reduced tensile strength.
The purity standards make Grade 23 the preferred material for biomedical implants. These include artificial joints, dental implants, and bone plates. Superior damage tolerance characteristics benefit cryogenic applications and critical aerospace components where fracture toughness outweighs absolute strength requirements.
Commercially Pure Titanium Grades 1-4
Commercially pure titanium grades contain minimal alloying elements. They offer excellent corrosion resistance and biocompatibility. Oxygen content separates these grades and affects mechanical properties. Grade 1 contains the lowest oxygen concentration. This results in maximum ductility but reduced strength. Grade 4, with 0.4% oxygen content, delivers the highest strength among CP grades while maintaining good corrosion resistance. Medical device manufacturers select these grades for implants under moderate loads and heat exchangers. Chemical handling equipment where corrosion resistance takes priority over maximum strength also uses these grades.
Specialized Beta Titanium Alloys
Beta titanium alloys retain the beta phase through addition of elements like niobium, tantalum, and molybdenum. These formulations achieve lower elastic modulus and improved biocompatibility compared to alpha-beta alloys. But beta alloys present processing challenges with selective laser melting technologies due to complex martensitic phase transformations. Limited commercial adoption in powder bed fusion reflects these difficulties. Directed energy deposition shows better compatibility, though.
Key Specifications of Spherical Titanium Powder
Particle Size Distribution Requirements (15-45 μm vs 45-105 μm)
Spherical titanium powder for additive manufacturing follows distinct particle size distributions matched to specific equipment technologies. Laser-based powder bed fusion systems require 15-45 μm particle size distribution, while electron beam melting operates with coarser 45-105 μm ranges. The finer 15-45 μm specification shows D10 values between 15-18 μm, D50 at 30-35 μm, and D90 under 45 μm. Particle size affects surface area exposure, with smaller distributions showing increased oxidation susceptibility during processing.

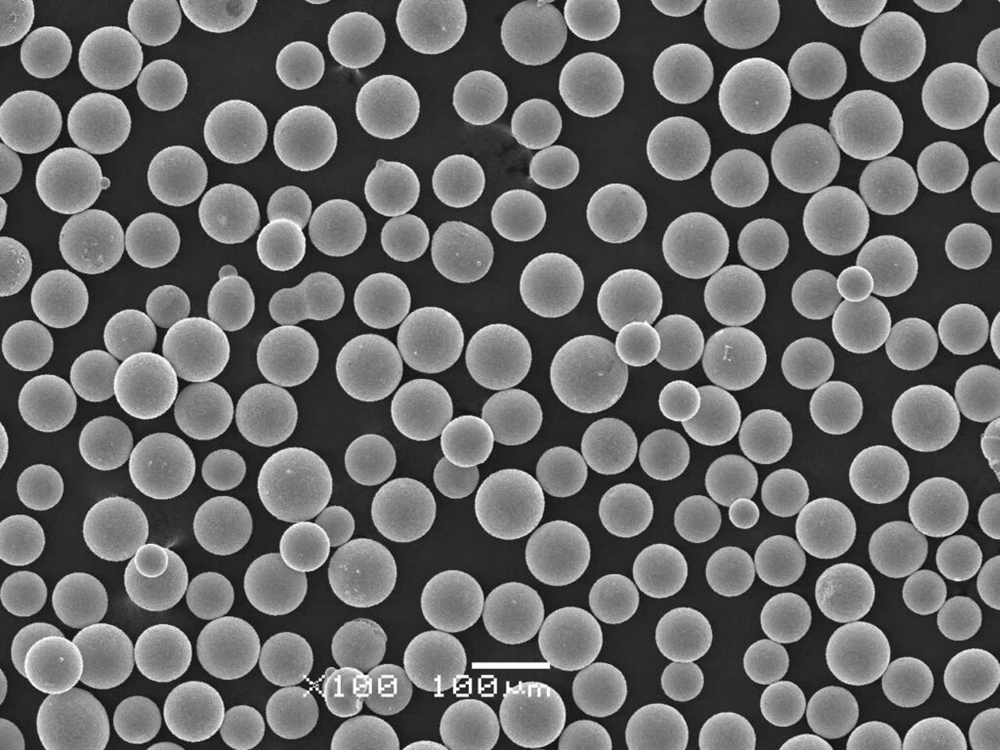

Powder Morphology and Sphericity Standards
Sphericity calculations measure the ratio of ideal surface area to actual surface area, where values exceeding 0.91 qualify as spherical. Commercially available titanium powder demonstrates sphericity around 0.93. Production standards target values above 0.92. This morphology will give consistent flowability through powder beds and creates uniform layer deposition. Higher sphericity reduces inter-particle resistance during spreading operations.
Chemical Composition and Purity Levels
Quality titanium powder maintains purity levels exceeding 99% titanium content. Suppliers verify composition through ICP analysis following ASTM E2371 protocols. Trace elements and impurity concentrations affect final part properties, especially crack sensitivity and mechanical performance.
Oxygen and Nitrogen Content Limits
Oxygen content represents the most critical interstitial specification for titanium powder. Most applications mandate oxygen below 0.15 wt% to meet component standards under 0.2 wt%. Grade 23 powder limits oxygen to 0.13 wt%, while nitrogen must remain below 400 ppm. Hydrogen content stays well under 150 ppm. Oxygen levels increase with powder reuse cycles, with Grade 23 material reaching the 0.13 wt% threshold after eight build cycles.
Flow Rate and Apparent Density Measurements
Flow characteristics undergo evaluation through Hall flowmeter testing and measure time for 50 grams to pass through a 2.5 mm orifice. Apparent density ranges between 2.7-3.7 g/cc, assessed via funnel method per ISO 3923-1 standards. These metrics predict powder bed packing behavior and fusion quality during manufacturing operations.
Manufacturing Process and Production Standards
Gas Atomization Technology
Commercial production relies on gas atomization methods where high-pressure inert gas disintegrates molten titanium into spherical particles. Free-fall gas atomization (FFGA) achieves around 15% yield of fine powder with standard gas-to-metal ratios. Close-coupled gas atomization (CCGA) improves this by directing gas impact just below the melt guide tube. Recent advances demonstrate D90 values below 60 μm with reduced gas consumption compared to conventional methods.
Plasma Atomization for Ultrafine Powder
Plasma atomization feeds pre-alloyed wire into zones heated to 10,000 K by plasma torches. This process yields over 40% fine powder for Ti-6Al-4V and exceeds gas atomization rates by a lot. The method produces ultrafine particles from 5-25 microns suitable for metal binder jetting applications. Advanced systems achieve d90 of 27.97 μm with 100% spheroidization.
Quality Certifications: ASTM B348, ISO 23301, AMS 4992
ASTM B348 covers titanium grades 1-4 and Grade 5 alloy compositions for bars and billets. ISO 23301 specifies additive manufacturing titanium powder with 10-45 micron distributions and interstitial limits. AMS 4992 defines aerospace-grade Ti-6Al-4V powder chemistry and purity standards.
Batch Consistency and Traceability Requirements
Each powder batch requires unique identification and production dates with complete certificates of analysis. Controlled atomization parameters maintain consistent particle size distribution across batches. Traceability systems document the trip from raw material sourcing through final certification and support ASTM and ISO compliance requirements.
How to Choose the Right Titanium Powder Material
Match Powder Grade to Application Requirements
Application environment dictates grade selection. Aerospace components just need Grade 5 for strength-to-weight optimization in turbine blades and structural frames. Medical implants mandate Grade 23 biocompatibility for artificial joints and bone plates. Commercially pure grades suit corrosion-intensive environments like heat exchangers and chemical processing equipment.
Review Particle Size for Your AM Equipment (SLM/DMLS/EBM)
Laser-based systems operate with 15-45 μm distributions. Electron beam melting accommodates coarser 45-105 μm ranges. Manufacturers specify compatible size ranges in technical documentation. Particle sizes below 45 μm present flammability hazards and require boosted safety protocols during handling operations.
Verify Supplier Certifications and Test Reports
Medical applications demand ISO 13485:2016 certification. Aerospace requires AS9100D compliance. Request material test reports that document particle size distribution, oxygen content, Hall flow rate and apparent density values. Full traceability from raw material sourcing through atomization will give regulatory compliance.
Think About Cost vs Performance Trade-offs
Ti-6Al-4V pricing ranges $150-200 per kilogram. Modified HDH powder costs approximately one-tenth of gas-atomized material but requires additional spheroidization processing. Balance powder cost against reuse potential and build failure rates. Final part quality requirements matter too.
Storage and Handling Requirements
Titanium powder exhibits pyrophoric characteristics and can ignite in air. Store material wet in sealed containers under argon or nitrogen atmospheres. Maintain Class D fire extinguishers in handling areas. Proper ventilation and enclosed processing environments will prevent dust generation.
Conclusion
The appropriate titanium powder requires careful evaluation of grade specifications, particle characteristics and manufacturing standards. Grade 5 and Grade 23 dominate aerospace and medical applications respectively. Particle size distributions must line up with specific AM equipment capabilities. Chemical purity, particularly oxygen content, impacts final part performance and longevity.
JHMIM Titanium houses three distinct production technologies under one roof. This capability matches optimal manufacturing processes to each custom part and will give precision and quality across both small-batch bespoke projects and high-volume production requirements.
FAQs
Q1. What distinguishes Grade 5 from Grade 23 titanium powder in additive manufacturing? Grade 5 and Grade 23 share the same base composition (Ti-6Al-4V), but Grade 23 has stricter purity requirements with lower oxygen content (maximum 0.13% vs 0.20%). This makes Grade 23 more ductile with superior fracture resistance, specifically designed for medical implants and biocompatible applications, while Grade 5 offers higher tensile strength for aerospace and structural components.
Q2. Which commercially pure titanium grade offers the best balance of strength and corrosion resistance? Grade 4 commercially pure titanium provides the highest strength among CP grades with 0.4% oxygen content while maintaining excellent corrosion resistance. It’s ideal for applications requiring moderate loads combined with superior resistance to chemical environments, such as heat exchangers and chemical processing equipment.
Q3. Why do laser-based and electron beam systems require different particle size distributions? Laser-based powder bed fusion systems (SLM/DMLS) require finer 15-45 μm particle distributions for precise layer deposition and surface quality, while electron beam melting (EBM) operates effectively with coarser 45-105 μm ranges. The particle size directly affects powder flowability, layer uniformity, and the energy absorption characteristics of each technology.
Q4. How does oxygen content affect titanium powder quality and performance? Oxygen content is the most critical specification for titanium powder, with most applications requiring levels below 0.15 wt%. Higher oxygen concentrations increase strength but reduce ductility and fracture toughness. During powder reuse cycles, oxygen levels progressively increase, potentially affecting final part properties and crack sensitivity.
Q5. What safety precautions are necessary when handling titanium powder? Titanium powder exhibits pyrophoric characteristics and can ignite spontaneously in air, especially particles below 45 μm. Essential safety measures include storing powder in sealed containers under inert atmospheres (argon or nitrogen), maintaining Class D fire extinguishers nearby, ensuring proper ventilation, and using enclosed processing environments to prevent dust generation.
