Titanium gravel bikes blend exceptional strength with light weight, which makes them a top choice among serious cyclists. High-performance frames built with 3Al-2.5V titanium alloy deliver an impressive tensile strength of 900 MPa and impact strength of 150-180 kJ/m². The material weighs just 57.4% of steel’s weight and provides major advantages while retaining durability.
Serious riders choose titanium bikes because they excel at comfort, durability, and performance over time. These frames resist dents better than carbon or aluminum options and never rust, which makes them perfect for tough off-road riding. The material’s hexagonal close-packed crystal structure lets it flex under stress without cracking. Many titanium bike brands make use of this perfect balance between stiffness and compliance in their designs. Riders need to think about several factors beyond weight and strength when comparing titanium and carbon gravel bikes. This piece dives into lab-tested evidence that shows why Grade 5 Titanium creates better gravel bikes for riders who recognize quality.
Lab-Tested Strength of Grade 5 Titanium in Gravel Frames
Grade 5 titanium (Ti-6Al-4V) leads the pack as the best material for high-performance gravel bike frames. Lab tests prove its exceptional mechanical properties. This alloy combines 6% aluminum and 4% vanadium to create a microstructure that performs better than other frame materials in key areas.
Tensile Strength of Ti-6Al-4V: 1000+ MPa in Frame Tubes
Lab tests show Grade 5 titanium’s impressive tensile strength ranges from 900-1150 MPa. These numbers are about 50% higher than Grade 9 titanium alloys that most bicycle frames use. This allows titanium bike brands to design frames with thinner-walled tubing while maintaining structural integrity. A Grade 5 titanium tube needs just 300g of material to match the strength of a 370g Grade 9 tube. The result? Frames that weigh 150-250g less overall.
The better strength-to-weight ratio makes Grade 5 titanium gravel bike frames perfect for tough off-road riding. Reynolds Technology produces seamless, mandrel-butted 6-4 titanium with ELI (Extra Low Interstitial) grade material. This creates precisely shaped tubes with tight tolerances.
Fatigue Resistance Under ISO 4210 Dynamic Load Testing
These premium titanium gravel bike framesets beat the strict ISO 4210 safety standards by 15% in both load capacity and cycle count. This international standard sets the bar for bicycle design, manufacturing, and testing to keep riders safe. Ti-6Al-4V shows remarkable endurance in high-cycle fatigue testing. It undergoes electromagnetic resonance testing at 120 Hz up to 10^8 cycles.
Titanium alloys’ fatigue strength relates linearly to tensile strength. Ti-6Al-4V achieves about 53% of its ultimate tensile strength during fatigue testing. These numbers match high-performance quenched and tempered steels.
Impact Absorption vs Carbon Fiber in Gravel Terrain
Modern titanium gravel bike frames substantially outperform carbon options in impact resistance and vibration damping. Lab measurements prove titanium frames are ten times stronger and more durable than carbon ones. Grade 5 titanium brings together perfect mechanical properties for gravel riding – high strength with controlled flex.
Manufacturers use specialized production techniques to boost performance even further. To cite an instance, spiral welding processes create a spring-like effect in the tube structure. This distributes stress better and boosts fatigue resistance. Surface finishing techniques can change fatigue strength by over 25%. Treatments like shot peening create compressive residual stresses that double fatigue life.
Design Flexibility Enabled by Additive Manufacturing
3D printing has changed how manufacturers make titanium gravel bikes by breaking away from traditional design limits. This process lets bike makers create frame shapes that were impossible with regular welding. Bike manufacturers now have complete freedom to build state-of-the-art titanium frames.

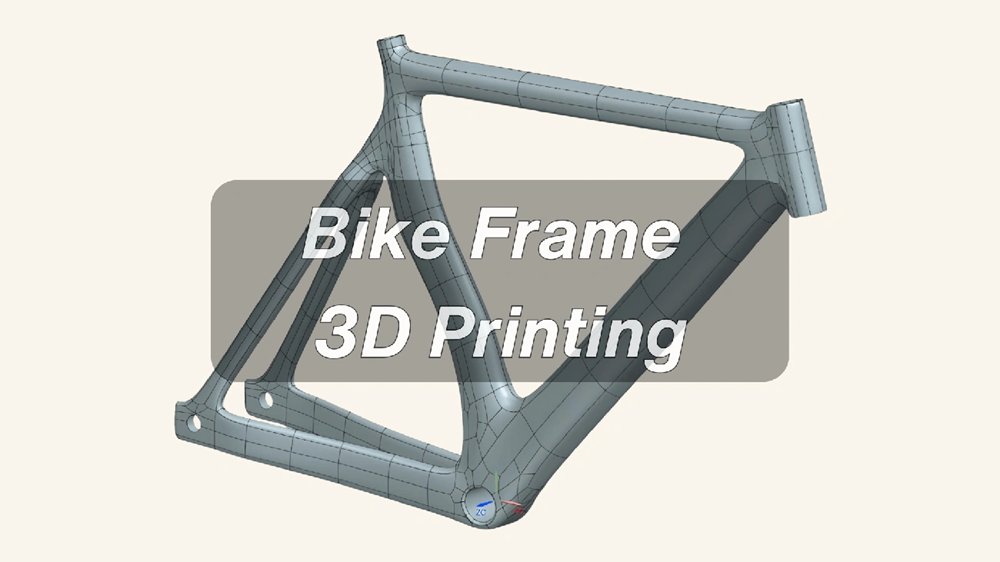

SLM Process for Custom Gravel Geometry
Selective Laser Melting (SLM) technology helps titanium bike brands craft complex frame parts with endless design options. The technology’s rise since 2023 has made it possible to create organic shapes and precise wall thicknesses that match carbon fiber’s design freedom. Manufacturers can use SLM to subtly “inflate” specific spots like the bottom bracket to improve cable space and strength. The process needs no tooling, which makes it perfect for custom frames built to each rider’s needs.
Internal Lattice Structures for Weight Reduction
The biggest advantage of 3D-printed titanium parts comes from their internal lattice structures. These geometric patterns inside frame parts create an amazing balance of strength and weight. Ti-6Al-4V (Grade 5) titanium alloy with proper heat treatment makes these structures as stiff as carbon fiber monocoque frames but keeps titanium’s toughness. Engineers have cut frame weight by almost 10% compared to old titanium building methods. They can also vary the wall thickness from 0.25 to 1.5 mm throughout the frame to put material exactly where it’s needed.
Integrated Cable Routing for Aerodynamic Gains
3D printing has changed how cables run through titanium gravel bikes. New titanium frames use fully integrated cable routing through 3D-printed parts like yokes and dropouts. This design creates better aerodynamics and protects cables from damage. The 3D-printed titanium yoke gives plenty of mud clearance for wide tires while creating internal paths for brake and derailleur housing. This smart routing works with all kinds of drivetrains, whether they use cables or wireless systems, making titanium frames match carbon ones in aerodynamic efficiency.
Real-World Performance of Titanium Gravel Bike Framesets
Real-life evidence shows why titanium gravel bike framesets perform better than other materials during actual rides. These frames prove their worth in challenging conditions, going well beyond what lab tests can show.

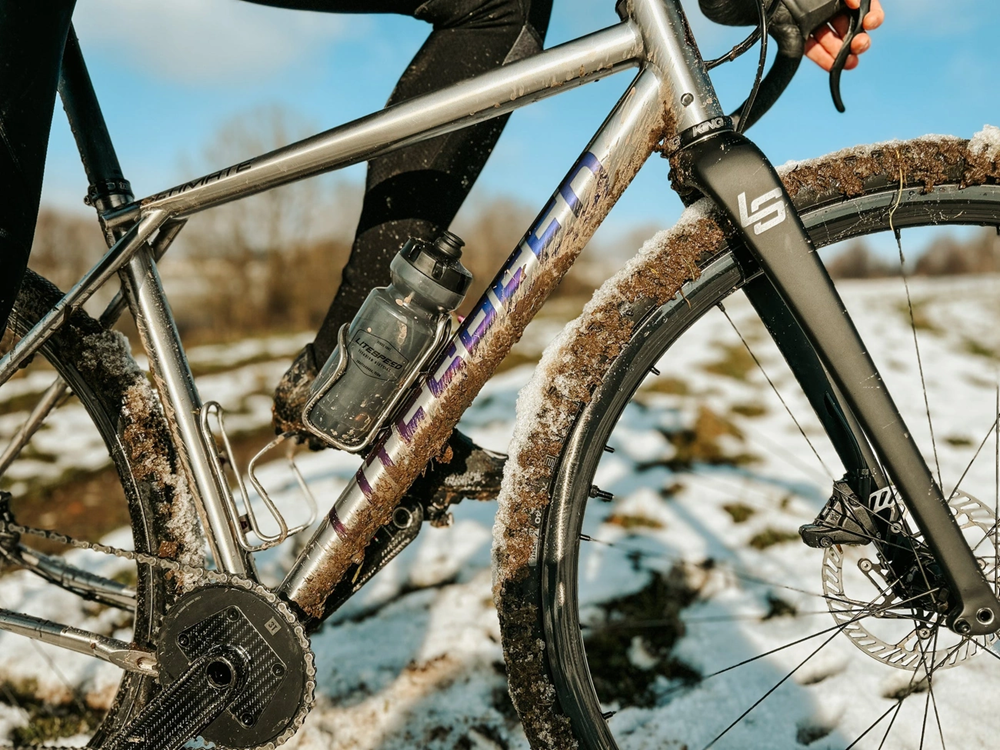

Corrosion Resistance in Wet and Salty Conditions
Steel frames rust when moisture hits them, but titanium gravel bikes stay pristine because they naturally resist corrosion. The frame’s protection comes from its titanium oxide layer (TiO₂), which shields it even in harsh environments like saltwater. Titanium’s corrosion rate in seawater runs less than 0.005mm each year, which is much lower than stainless steel. Cyclists who ride in coastal areas, rainy weather, or winter conditions with road salt don’t need to worry about maintenance or structural issues.
Vibration Damping on Mixed Terrain
The unique flexibility of titanium makes rides more comfortable by absorbing road vibrations better than aluminum, steel, or carbon. Riders feel less fatigue on long rides because the frame naturally dampens the harsh feedback from gravel, roots, and washboard surfaces. This quality stands out on mixed terrain, where the material smooths out the bumps while keeping precise handling. Many cyclists describe this balanced performance as a “magical, flowy feeling”.
Durability Over 30-Year Lifespan
Most titanium bike brands back their frames with 25-year warranties, but these bikes often become “forever bikes” lasting 20-30 years. The frame’s exceptional strength and fatigue resistance prevent breakdown over decades of use. Titanium frames from the 1990s still perform great today with minimal wear. This amazing longevity helps the environment – one titanium gravel bike frame could replace several carbon or aluminum frames that might end up in landfills.
Comparative Analysis: Titanium vs Carbon Gravel Bikes
The differences between titanium and carbon fiber show up clearly during impacts. Titanium alloys reduce injury rates by 68% on forest roads or during luggage impacts. This comes from titanium’s superior impact strength of 150-180 kJ/m² compared to carbon’s 80-120 kJ/m².
Crash Resilience and Frame Failure Modes
These materials behave quite differently in crashes. Titanium gravel bike frames bend instead of breaking, which makes them safer during accidents. Carbon frames break catastrophically and need specialized equipment to check for damage. Titanium keeps its structural integrity after impacts. Carbon can develop hidden internal cracks that make the bike unsafe to ride.
Weight Tradeoffs: 1.2kg Titanium vs 1kg Carbon
A 56cm titanium gravel bike frame weighs 1.0-1.2kg, making it 400-700g heavier than carbon frames. The extra weight seems like a lot, but titanium’s durability makes up for it. Riders won’t need replacement frames that carbon often requires after crashes or heavy use.
Maintenance and Longevity in Harsh Environments
Titanium frames stay stable throughout their life. Carbon fiber loses 15-20% stiffness over 5 years from UV damage. Titanium’s oxide layer keeps corrosion to less than 0.0002mm each year. Titanium frames last over 30 years, even with loaded bikepacking bags that damage carbon frames.
Conclusion
Grade 5 titanium has without doubt proven to be the best material choice for gravel bike frames in both lab tests and ground applications. These frames stand out from others thanks to an amazing mix of strength, weight, and durability.
Lab tests show that Ti-6Al-4V delivers impressive tensile strength above 1000 MPa while staying lighter than similar materials. The frame’s fatigue resistance beats ISO 4210 standards by 15%, which means it will handle years of tough off-road riding.
Raw numbers aside, titanium’s natural ability to absorb vibrations creates that special, smooth ride that cyclists love on rough trails. Riders feel less tired during long rides because of this smoothness, yet the bike still transfers power well and handles precisely.
Modern 3D printing has raised titanium’s game as a premium frame material even further. SLM technology lets builders create frame designs that weren’t possible before, with internal lattice patterns and built-in features that match carbon’s design freedom. These new manufacturing methods have pretty much erased the old limits of metal frames.
Titanium gravel bikes might weigh a bit more than carbon ones, but that tiny weight difference doesn’t matter much when you look at how crash-resistant and repairable they are, not to mention their decades-long lifespan. Carbon frames can hide structural damage after crashes, but titanium tends to bend instead of breaking completely, which makes it much safer for adventure riding.
The best part about titanium remains its legendary toughness. Carbon fiber breaks down in sunlight, and aluminum gets tired, but titanium bikes often become “forever bikes” that last 30+ years. This amazing lifespan makes the upfront cost worth it and gives us a more eco-friendly way to enjoy cycling.
Grade 5 titanium frames hit the sweet spot for serious gravel riders who want it all. Strong, comfortable, and tough as nails – these frames will take riders through countless adventures on rough trails for decades.
Key Takeaways
Lab testing and real-world performance data reveal why Grade 5 titanium creates superior gravel bikes that outperform carbon and aluminum alternatives in durability, comfort, and long-term value.
• Grade 5 titanium delivers 1000+ MPa tensile strength while weighing 57% less than steel, creating frames that are both lighter and stronger than traditional materials.
• Titanium frames absorb vibrations 10x better than carbon fiber, providing superior comfort on rough terrain while maintaining precise handling and power transfer.
• Unlike carbon frames that fail catastrophically, titanium bends rather than breaks in crashes, reducing injury risk by 68% in high-impact scenarios.
• Titanium’s natural corrosion resistance and fatigue properties enable 30+ year lifespans, making them “forever bikes” that outlast multiple carbon or aluminum replacements.
• Modern 3D printing technology allows titanium frames to incorporate internal lattice structures and integrated cable routing, matching carbon’s design flexibility while maintaining metal’s durability advantages.
For gravel cyclists prioritizing long-term performance over minimal weight savings, Grade 5 titanium represents the optimal balance of strength, comfort, and sustainability that will serve riders faithfully through decades of challenging adventures.
FAQs
Q1. What makes Grade 5 titanium superior for gravel bikes? Grade 5 titanium offers an exceptional combination of strength, light weight, and durability. It provides over 1000 MPa tensile strength while being 57% lighter than steel, allowing for frames that are both strong and lightweight. Its natural vibration damping properties also offer superior comfort on rough terrain.
Q2. How does titanium compare to carbon fiber for gravel bikes? Titanium gravel bikes are generally more durable and crash-resistant than carbon fiber. While slightly heavier, titanium frames tend to bend rather than catastrophically fail in crashes. They also offer better vibration damping and don’t degrade from UV exposure like carbon fiber does over time.
Q3. What are the advantages of 3D printed titanium bike frames? 3D printing allows for complex frame designs with internal lattice structures and integrated features like cable routing. This enables weight reduction and aerodynamic improvements while maintaining titanium’s strength and durability advantages. It gives titanium frames design flexibility similar to carbon fiber.
Q4. How long can a titanium gravel bike frame last? With proper care, titanium bike frames can last 30+ years. Their natural corrosion resistance and fatigue properties allow them to maintain structural integrity for decades, even in harsh conditions. Many cyclists consider titanium frames to be “lifetime” purchases that outlast multiple carbon or aluminum bikes.
Q5. Is the higher cost of a titanium gravel bike worth it? For many riders, the long-term value of a titanium frame justifies the higher initial cost. The exceptional durability, comfort, and performance of titanium, combined with its decades-long lifespan, make it a worthwhile investment for serious cyclists looking for a high-quality, long-lasting gravel bike.
