Titanium Metal Injection Molding (MIM) is an advanced manufacturing process. It produces complex titanium components with high precision. This method combines the shape-making capabilities of plastic injection molding with the material properties of titanium. The Titanium MIM market experiences significant growth.
Parts made through Titanium MIM achieve high densities, often approaching full density. These parts exhibit excellent strength characteristics, including a high strength-to-weight ratio. Manufacturers also achieve tight tolerances for these components. Understanding Titanium MIM Material Properties is crucial for design and application.
Key Takeaways
- Titanium MIM makes complex titanium parts with high precision.
- High density in Titanium MIM parts means stronger, more durable components.
- Titanium MIM parts have great strength, similar to wrought titanium.
- The MIM process allows for very precise part sizes and shapes.
- Titanium MIM is useful for medical, aerospace, and electronics parts.
- New methods and research keep making Titanium MIM better.
- Titanium MIM parts resist rust well and last a long time.
Understanding Titanium MIM Material Properties: Density
What is the Significance of Density in Titanium MIM?
Density is a critical characteristic for Titanium Metal Injection Molding (MIM) components. It directly influences a part’s performance and suitability for various applications. High density in MIM parts means less porosity, which translates into superior mechanical properties.
How Does Density Impact Lightweight Applications?
High-density titanium MIM parts are essential for lightweight applications. Titanium inherently offers an excellent strength-to-weight ratio. Achieving high density through MIM ensures that designers can create strong, durable components without adding unnecessary mass. This is particularly valuable in industries like aerospace and medical devices, where every gram counts.
What are the Performance Benefits of High Density?
High density provides numerous performance benefits. Parts with minimal internal voids exhibit greater strength, improved fatigue resistance, and enhanced corrosion resistance. A dense structure also contributes to better surface finish and dimensional stability, ensuring the component performs reliably under demanding conditions.
What are the Typical Density Values for Titanium MIM?
Understanding the achievable density values helps engineers design and specify Titanium MIM parts effectively. The process aims to maximize density to unlock titanium’s full potential.
What is the Relative Density of Titanium MIM?
For Ti-6Al-4V titanium alloy MIM parts, the relative density typically ranges between 95% and 98%. Under high-vacuum sintering conditions, a peak relative density of 97.6% is achievable. In terms of absolute density, titanium alloy Ti-6Al-4V MIM parts reach 4.3-4.4 g/cm³, which is very close to its theoretical density of 4.43 g/cm³. These values demonstrate the process’s capability to produce near-net-shape parts with excellent material integrity.
How is Full Density Achieved in Titanium MIM?
Achieving full density in Titanium MIM involves careful control throughout the manufacturing process. The primary method is sintering, where high temperatures fuse powder particles. Advanced sintering techniques, often in a vacuum or inert atmosphere, minimize porosity. Post-sintering treatments can further enhance density.
What Factors Influence Titanium MIM Density?
Several factors critically influence the final density of Titanium MIM components. Manufacturers meticulously control these elements to ensure optimal Titanium MIM Material Properties.
How Do Powder Characteristics Affect Density?
Powder characteristics significantly impact density. Particle size distribution, quantified by median particle size, affects how powders pack together. Particle shape, measured by tap density, also plays a crucial role in powder flow and compaction. Interstitial levels, such as oxygen and carbon, influence sintering behavior. Manufacturers prefer deagglomerated, pore-free powders, which are dense, discrete particles without entrapped gas pockets, for optimal results.
What Role Do Sintering Parameters Play in Density?
Sintering parameters are paramount for achieving high density. These include sintering temperature, time, and atmosphere. Higher temperatures and longer durations generally promote greater densification by allowing more atomic diffusion. A controlled atmosphere, typically a vacuum, prevents oxidation and contamination, which can hinder densification.
How Do Post-Processing Techniques Enhance Density?
Post-processing techniques can further enhance the density of Titanium MIM parts. Hot Isostatic Pressing (HIP) is a common method. HIP applies high pressure and temperature simultaneously, collapsing any remaining internal pores and increasing the part’s overall density and mechanical performance.
Titanium MIM Material Properties: Strength Characteristics
The strength characteristics of Titanium MIM components are crucial for their performance in demanding applications. These properties define how a material withstands various forces and stresses.
What is the Tensile Strength of Titanium MIM?
Tensile strength measures a material’s resistance to breaking under tension. Titanium MIM parts exhibit impressive tensile strength, making them suitable for critical components.
What is the Ultimate Tensile Strength of Titanium MIM?

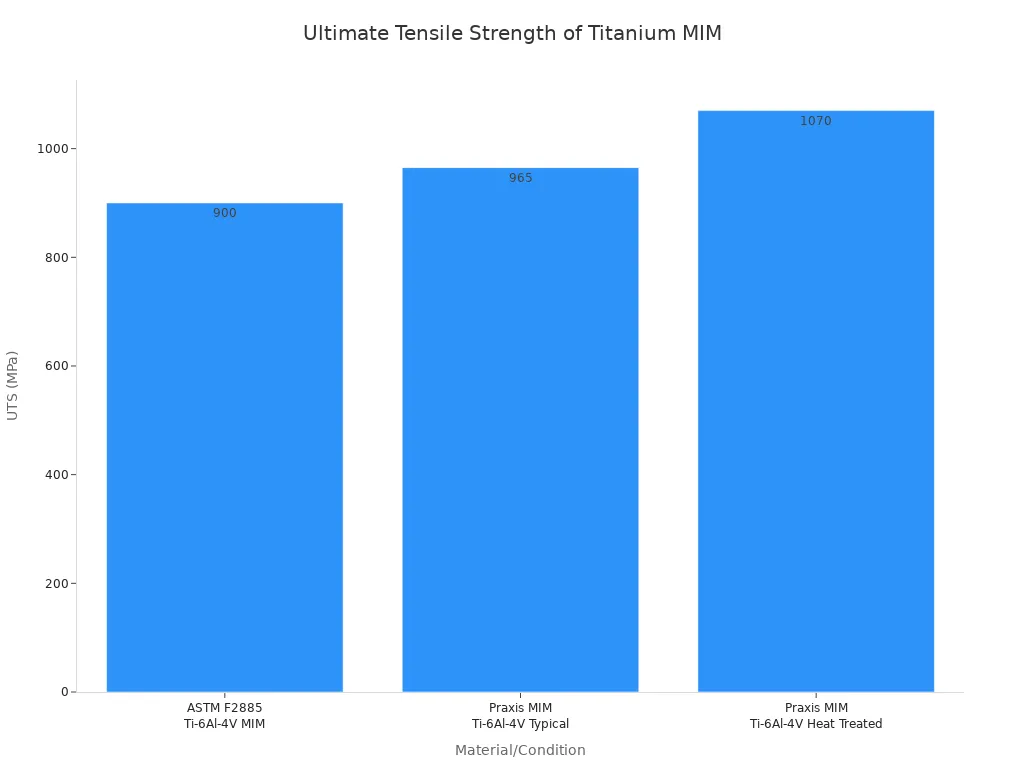

Ultimate Tensile Strength (UTS) represents the maximum stress a material can endure before it fractures. Titanium MIM components, particularly those made from Ti-6Al-4V, show high UTS values. For instance, ASTM F2885 Ti-6Al-4V MIM parts typically achieve a UTS of 900 MPa (130 ksi). Praxis MIM Ti-6Al-4V parts often reach 965 MPa (144 ksi), and heat-treated versions can even exceed 1070 MPa (155 ksi). This demonstrates the material’s robust nature.
| Material/Condition | UTS MPa (ksi) |
|---|---|
| ASTM F2885 Ti-6Al-4V MIM | 900 (130) |
| Praxis MIM Ti-6Al-4V Typical Values | 965 (144) |
| Praxis MIM Ti-6Al-4V Heat Treated | 1070 (155) |
What is the Elongation at Break for Titanium MIM?
Elongation at break indicates a material’s ductility, or its ability to deform plastically before fracturing. For Ti-6Al-4V, the sintering temperature influences this property. Sintering at 1150°C yields an elongation at break of 9.61%, while 1250°C results in 6.57%.
| Material | Sintering Temperature | Elongation at Break |
|---|---|---|
| Ti-6Al-4V | 1150°C | 9.61% |
| Ti-6Al-4V | 1250°C | 6.57% |
The oxygen content significantly affects ductility. The ASTM F2885-11 standard specifies that oxygen in titanium alloys should not exceed 0.35 wt.%. Exceeding this limit causes a rapid decrease in elongation. Typical elongation values for Ti-6Al-4V and Ti-6Al-7Nb MIM parts are around 10%.
| Material | Elongation at Break |
|---|---|
| Ti-6Al-4V | 10% |
| Ti-6Al-7Nb | 10% |
What are the Yield Strength and Hardness of Titanium MIM?
Yield strength and hardness are other vital indicators of a material’s mechanical performance.
What are the Typical Yield Strength Values for Titanium MIM?
Yield strength measures the stress a material can withstand before permanent deformation occurs. Titanium MIM parts typically exhibit high yield strength, which contributes to their structural integrity and ability to maintain shape under load. These values often align closely with their ultimate tensile strength, showcasing the material’s resilience.
What are the Hardness Scales for Titanium MIM?
Hardness describes a material’s resistance to localized plastic deformation, such as indentation. Various scales measure hardness. For titanium, common scales include Rockwell (HRB, HRC) and Vickers (VHN). For example, pure titanium can have an HRB of 95, while Hot Isostatic Pressed (HIP) titanium reaches 195 VHN. Ti-6Al-4V (Titanium -6-4) can achieve 35 HRC, and general MIM Titanium often shows 30 HRC.
| Material | Hardness Scale | Hardness Value |
|---|---|---|
| Titanium | HRB | 95 |
| Titanium (HIP) | VHN | 195 |
| Titanium -6-4 | HRC | 35 |
| Material | Hardness Scale | Hardness Value |
|---|---|---|
| MIM Titanium | HRC | 30 |
How Does Titanium MIM Strength Compare to Wrought Titanium?
Comparing MIM titanium to wrought titanium helps understand its application potential.
What is the Strength Comparison Between MIM and Wrought Titanium?
Titanium MIM parts can achieve strength levels comparable to wrought titanium, especially with optimized processing and post-sintering treatments like HIP. The MIM process allows for the creation of complex geometries that are difficult or impossible to produce with traditional wrought methods, without sacrificing significant strength.
What are the Ductility Considerations for Titanium MIM?
While Titanium MIM Material Properties include high strength, MIM parts may exhibit slightly lower ductility compared to wrought titanium. This difference often stems from residual porosity or microstructural variations inherent in powder metallurgy processes. However, continuous advancements in powder quality and processing techniques consistently narrow this gap, improving the overall ductility of MIM titanium components.
What Factors Affect Titanium MIM Strength?
Several critical factors influence the strength of Titanium MIM components. Manufacturers carefully manage these elements to ensure optimal performance. Understanding these influences helps engineers design robust parts.
How Does Microstructure Influence Strength?
The microstructure of a Titanium MIM part significantly determines its strength. Controlling sintering parameters, such as temperature profiles, atmosphere composition, and cooling rates, helps achieve high densities and favorable microstructures. These parameters minimize grain growth. Alloying elements also play a crucial role. Elements like aluminum, vanadium, iron, molybdenum, and zirconium promote solid solution strengthening. They also facilitate precipitation hardening or the formation of desirable intermetallic phases. For instance, TiC precipitates, distributed along grain boundaries, enhance both ductility and strength. They resist crack initiation and propagation. Carbon doping also promotes multi-stage densification, reducing porosity. Grain refinement and the formation of beneficial secondary phases further contribute to increased strength.
What is the Impact of Porosity Levels on Strength?
Porosity levels directly impact the mechanical strength of Titanium MIM parts. Pores reduce the effective cross-section available for load bearing. They also act as stress concentration sites within the material. These factors lead to a decrease in both strength and ductility. For example, as-sintered samples, which typically contain higher porosity, exhibit lower tensile strength compared to as-HIPed samples. The application of MIM and atomized powder can reduce the strength if porosity is not controlled. Therefore, controlling porosity and pore size is crucial for achieving desired mechanical properties. This is especially important for medical implants requiring an elastic modulus similar to natural bones.
How Does Heat Treatment Affect Titanium MIM Strength?
Heat treatment processes profoundly affect Titanium MIM Material Properties, particularly strength. Techniques like solution annealing, aging, or quenching induce controlled microstructural changes. These changes include the formation of fine precipitates or the manipulation of grain sizes and textures. Hot Isostatic Pressing (HIP) is a post-processing technique that further enhances strength. HIP closes internal pores, increases density and homogeneity, and refines the microstructure. This optimization of precipitation behavior leads to superior strength and ductility in the final component.
Titanium MIM Material Properties: Tolerance Guide
Achieving precise tolerances is a critical aspect of Titanium Metal Injection Molding (MIM). Tolerances define the permissible variation in a part’s dimensions. The MIM process offers excellent control over these variations, producing highly accurate components.
What are the Achievable Tolerances for Titanium MIM?
Titanium MIM parts can achieve impressive dimensional accuracy. Manufacturers carefully control each step of the process to meet strict specifications.
What are the Standard Tolerances for Titanium MIM?
Standard tolerances for Titanium MIM parts vary with feature size. For features smaller than 3 mm (0.12 inch), a tolerance of ± 0.03 mm (0.0012 inch) is achievable. Features between 3 and 6 mm (0.12 to 0.25 inch) typically hold a tolerance of ± 0.05 mm (0.002 inch). For features ranging from 6 to 15 mm (0.25 to 0.6 inch), the tolerance is ± 0.08 mm (0.003 inch). Features between 15 and 30 mm (0.6 to 1.2 inch) achieve ± 0.15 mm (0.006 inch). Lastly, for features between 30 and 60 mm (1.2 to 2.4 inch), a tolerance of ± 0.25 mm (0.01 inch) is typical.
What are the Precision Tolerances for Titanium MIM?

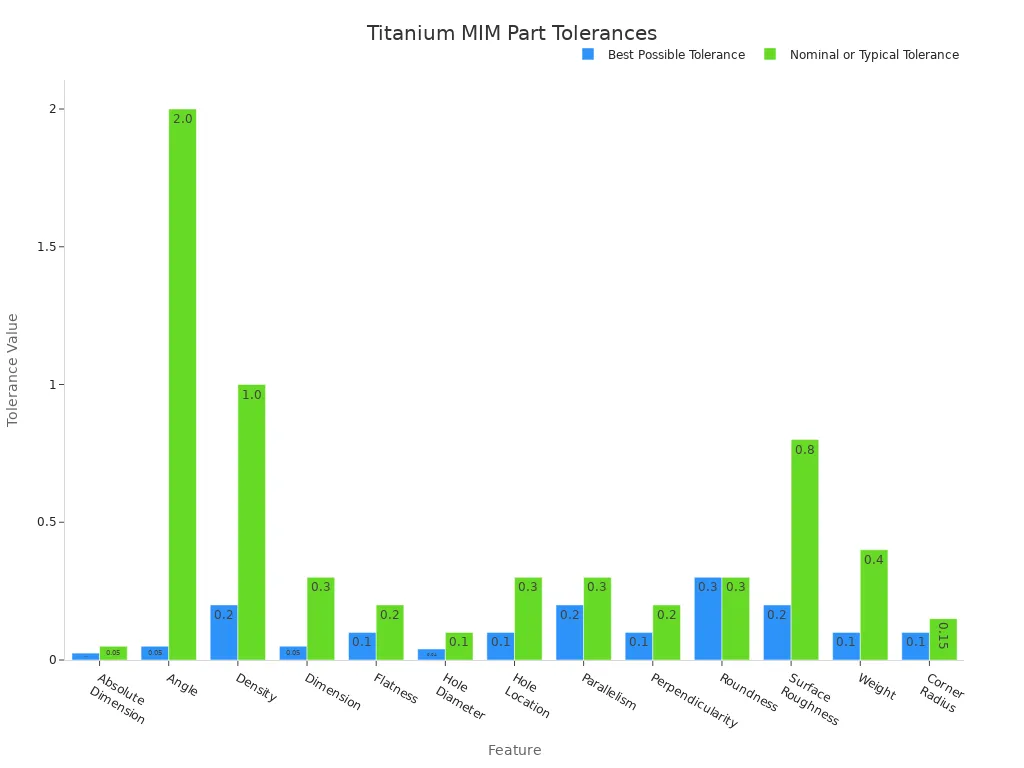

Precision tolerances for Titanium MIM parts are quite impressive across various characteristics. The table below illustrates typical and best possible tolerances.
| Feature | Best Possible ± | Nominal or Typical ± |
|---|---|---|
| Absolute Dimension | 0.025 mm (0.001 inch) | 0.05 mm (0.002 inch) |
| Angle | 0.05° | 2° |
| Density | 0.2% | 1% |
| Dimension | 0.05% | 0.3% |
| Flatness | 0.1% | 0.2% |
| Hole Diameter | 0.04% | 0.1% |
| Hole Location | 0.1% | 0.3% |
| Parallelism | 0.2% | 0.3% |
| Perpendicularity | 0.1% or 0.1° | 0.2% or 0.3° |
| Roundness | 0.3% | 0.3% |
| Surface Roughness | 0.2 µm (8 µ inch) | 0.8 µm (32 µ inch) |
| Weight | 0.1% | 0.4% |
| Corner Radius | 0.1 mm (0.004 inch) | 0.15 mm (0.006 inch) |
For metal injection molding (MIM) parts, including Titanium MIM parts, sintered tolerances of +/-0.3% of nominal (e.g., 1.000″ +/-.003″) are typically achievable. This +/-0.3% tolerance is generally achieved after the injection and sintering process. Various factors inherent to the MIM process, such as different materials, designs, part structures, mold structure, parting line position, and gate position, can influence the precise tolerance capabilities. These factors potentially lead to tolerances less than or greater than the +/-0.3% range.
What Factors Influence Titanium MIM Tolerance?
Several factors significantly influence the final tolerances of Titanium MIM components. Understanding these influences helps optimize the manufacturing process.
How Does Part Geometry Complexity Affect Tolerance?
Complex part geometries can present challenges for maintaining tight tolerances. Intricate features, sharp corners, and varying wall thicknesses can lead to differential shrinkage during sintering. This differential shrinkage makes precise dimensional control more difficult.
What is the Role of Tooling Design in Tolerance?
Tooling design plays a crucial role in achieving desired tolerances. A well-designed mold accounts for material shrinkage and ensures uniform filling. Precise tooling minimizes flash and ensures consistent part dimensions.
How is Sintering Shrinkage Controlled for Tolerance?
Sintering shrinkage is a natural part of the MIM process. Manufacturers control this shrinkage through careful material selection and precise temperature profiles. They use compensation factors in mold design to account for predictable shrinkage.
What Post-Sintering Operations Impact Tolerance?
Post-sintering operations can further refine tolerances. These operations include sizing, coining, or machining. Hot Isostatic Pressing (HIP) can also improve dimensional stability by reducing porosity.
What are the Design Considerations for Optimal Titanium MIM Tolerances?
Designers must consider specific guidelines to achieve optimal tolerances for Titanium MIM parts. These considerations ensure manufacturability and performance.
How Does Wall Thickness Uniformity Affect Tolerance?
Maintaining consistent wall thickness is crucial in MIM. It ensures uniform shrinkage and minimizes warping during sintering. Recommended wall thickness ranges between 1 mm to 6 mm, depending on the overall size of the part. Designers prefer keeping the thickness consistent wherever possible. Sections thicker than 12.5 mm (0.5 inches) should be avoided. They can lead to non-uniform shrinkage and increased sintering times. If thick sections are necessary, core them out to maintain balance. Designing with excessively thick or thin walls can lead to inconsistencies during sintering, including sinks, cracks, and warping. Optimize wall thicknesses for uniform mold filling during injection.
What are the Feature Size Limitations for Titanium MIM?
Most Metal Injection Moulding (MIM) parts are restricted to sizes smaller than about 100 mm. Wall thickness can range from 0.1 mm to 10 mm. Hole diameters can be less than 0.1 mm. The thinnest wall thickness mentioned is 0.3 mm, with a typical range of 2 mm to 3 mm. Maximum overall dimension for MIM parts can be between 25 mm to 35 mm, with the largest reaching 250 mm.
What are the Surface Finish Requirements for Titanium MIM?
Surface finish is another important aspect of Titanium MIM Material Properties. The MIM process typically produces parts with a good as-sintered surface finish. Further post-processing, such as polishing or tumbling, can achieve even finer surface finishes if required for specific applications.
Applications Benefiting from Titanium MIM Material Properties
Titanium Metal Injection Molding (MIM) offers unique advantages across various industries. Its ability to produce complex, high-strength, and lightweight components makes it a preferred manufacturing method for critical applications.
Why is Titanium MIM Used in Medical and Dental Implants?
The medical and dental fields extensively utilize Titanium MIM due to its exceptional material characteristics. These properties are vital for long-term patient safety and device performance.
What are the Biocompatibility Advantages?
Medical-grade titanium alloys, such as Ti-6Al-4V, are highly biocompatible. They remain inert within the human body. This means the body generally accepts components made from these alloys without adverse reactions. Titanium’s passive oxidation layer prevents corrosion and chemical reactions with surrounding tissues, bodily fluids, or bone. This significantly reduces the likelihood of adverse reactions.
How Does it Enable Custom Geometries?
Titanium MIM excels at creating custom geometries for implants. The process allows for the production of intricate shapes and porous structures. These designs promote osseointegration, where bone grows directly onto the implant surface. This capability is crucial for patient-specific implants and complex dental prosthetics.
How Does Titanium MIM Benefit Aerospace Components?
The aerospace industry constantly seeks materials that offer high performance with minimal weight. Titanium MIM provides significant advantages in this sector.
What are the Weight Reduction Advantages?
Titanium MIM produces lightweight, strong aerospace parts with complex shapes. Titanium offers a high strength-to-weight ratio, making it ideal for robust brackets and fasteners. Unlike precision machining, where excess material removal adds cost and time, MIM allows for features to be incorporated into tooling with excess material cored out. This process significantly saves part weight, manufacturing time, and material. Additionally, MIM can combine multiple parts into a single component, eliminating the need for screws, adhesive bonding, soldering, and welding. This reduces both weight and the cost associated with multiple components. This directly supports the long-term aircraft design goal of lightweighting.
What is the High Strength-to-Weight Ratio?
MIM produces aerospace parts with outstanding strength-to-weight ratios. This is essential for lightweight components. Titanium is preferred for aerospace due to its exceptional strength-to-weight ratio, making components lightweight yet strong. This characteristic is critical for fuel efficiency and overall aircraft performance.
Why is Titanium MIM Used in Consumer Electronics?
Consumer electronics demand smaller, more durable, and aesthetically pleasing components. Titanium MIM meets these requirements effectively.
How Does it Support Miniaturization?
Titanium MIM supports miniaturization by producing small, intricate parts with high precision. The process creates components with fine details and thin walls. This enables designers to pack more functionality into smaller devices. This is crucial for modern smartphones, wearables, and other compact gadgets.
How Does it Enable Complex Shapes?
The MIM process allows for the creation of highly complex shapes that are difficult or impossible to achieve with traditional manufacturing methods. This capability enables innovative designs and ergonomic forms in consumer electronics. Manufacturers can produce components with internal features, undercuts, and integrated functionalities in a single step.
What are the Advantages of Titanium MIM in Automotive and Industrial Parts?
Titanium Metal Injection Molding (MIM) offers significant benefits for automotive and industrial applications. Its unique properties make it ideal for components requiring high performance and longevity. Manufacturers can produce complex parts efficiently, meeting the rigorous demands of these sectors.
What is the Corrosion Resistance of Titanium MIM?
Titanium MIM parts exhibit exceptional corrosion resistance, a critical advantage in harsh environments. Titanium naturally forms a protective oxide layer. This layer makes it highly resistant to rust and environmental degradation. This inherent property ensures components maintain their integrity even when exposed to aggressive substances. For example, manufacturers use titanium MIM for:
- Marine-grade hardware in saltwater environments.
- Electronic housings requiring robust corrosion resistance.
Titanium fasteners are also used in critical areas of vehicles, such as racing and aerospace-inspired road cars. Here, corrosion resistance is paramount for safety and performance. This resistance extends the lifespan of parts and reduces maintenance needs, offering long-term cost savings.
What is the Durability of Titanium MIM?
The durability of Titanium MIM components is another key advantage for automotive and industrial parts. These parts withstand significant wear and tear, ensuring reliable operation over extended periods. The MIM process creates dense, strong components that resist fatigue and impact. This robustness makes them suitable for demanding applications where parts experience constant stress and movement. For instance, industrial machinery often operates under heavy loads and continuous cycles. Titanium MIM parts can endure these conditions without premature failure. In automotive applications, components like engine parts or structural elements benefit from titanium’s inherent strength and resilience. This high durability translates into fewer replacements and greater operational efficiency for both automotive and industrial systems. The ability to produce complex, durable shapes also allows for innovative designs that enhance overall system performance and reliability.
Advanced Processing and Future Trends in Titanium MIM Material Properties
Titanium Metal Injection Molding (MIM) continues to evolve. Advanced processing techniques and ongoing research push the boundaries of what this technology can achieve. These innovations enhance material properties and expand application possibilities.
What are the Innovations in Titanium MIM Powders?
Innovations in powder characteristics and alloy development are crucial for advancing Titanium MIM technology. These advancements lead to superior components.
What are the Advances in Powder Metallurgy?
Powder metallurgy has seen significant advances. In 2015, researchers developed a novel Granulation-Sintering-Deoxygenation (GSD) method. This method produces low-cost spherical titanium and titanium alloy powders. GSD technology specifically addresses critical characteristics of spherical Ti powder. These include particle size, size distributions, flowability, and especially oxygen content. The goal is to produce powders with oxygen content below 0.15 wt.%, meeting industrial standards for final components (< 0.2 wt.%). The GSD process ensures low oxygen content through a breakthrough deoxygenation technique. This technique relies on a newly discovered thermodynamic principle. The GSD process is an integrated three-step method. First, titanium alloy is hydrogenated and then milled into fine hydride particles. Second, these fine hydride particles are granulated into spherical granules using spray-drying. Third, the spherical granules are sintered to achieve densified spherical Ti powder. Finally, the densified spherical Ti powder undergoes deoxygenation with Magnesium to reduce oxygen content to required levels.
What is the Role of Alloy Development?
Alloy development plays a vital role in enhancing Titanium MIM. Researchers develop new biocompatible materials, including advanced titanium alloys. These alloys offer superior strength, corrosion resistance, and compatibility with human tissues for medical and dental devices. Nanotechnology is also incorporated to enhance mechanical properties and surface characteristics of MIM components. Furthermore, bioresorbable metals are under development. These metals dissolve in the body, eliminating the need for additional surgeries. The integration of AI reveals new ways to strengthen titanium alloys and accelerate manufacturing. This approach optimizes material properties like density, strength, and ductility. It also models other critical factors such as fatigue resistance or corrosion. This AI-driven method significantly reduces the time needed to understand how new materials respond in various environments. It enables rapid manufacturing of enhanced alloys. Specialized titanium alloys are also created. These alloys are tailored for specific industry applications to enhance performance.
How are Post-Processing Techniques Enhancing Titanium MIM?
Post-processing techniques significantly enhance the performance and reliability of Titanium MIM parts. These methods refine the material’s structure and surface.
What is Hot Isostatic Pressing (HIP) for Titanium MIM?
Hot Isostatic Pressing (HIP) is a critical post-processing technique. HIP applies high pressure and temperature simultaneously to sintered parts. This process eliminates internal porosity, increasing density and improving mechanical properties. HIP enhances fatigue life and overall structural integrity, making parts more robust for demanding applications.
What are the Surface Treatments for Titanium MIM?
Various surface treatments further enhance Titanium MIM components. These treatments improve wear resistance, corrosion resistance, and biocompatibility. Examples include anodizing, plasma nitriding, and various coatings. These treatments tailor the surface properties to meet specific application requirements, such as reducing friction or promoting osseointegration in medical implants.
What are the Emerging Applications and Research in Titanium MIM?
The scope of Titanium MIM continues to expand. New industry adoptions and material science breakthroughs drive this growth.
What are the New Industry Adoptions?
The biomedical industry increasingly adopts Titanium MIM. This includes parts for orthopedic prosthetics (hip, knee, spine), dental and orthodontic implants, and metal elements for bone fixation systems. Ti-6Al-4V is a common material for these applications. Emerging trends include Micro-MIM for microcomponents (parts smaller than 1 mm). The development of composite materials and specific alloys for implantable devices is also growing. Combining MIM with Additive Manufacturing creates customized parts. Post-MIM functional coatings enhance biocompatibility and wear resistance. Implantable devices like artificial joints, pacemakers, and bone plates also utilize Titanium MIM. The aerospace industry also sees increased adoption.
What are the Material Science Breakthroughs?
Material science breakthroughs continue to advance Titanium MIM. These include ongoing advancements in material science and manufacturing technologies. Researchers explore new alloy compositions and processing parameters. These efforts aim to further optimize density, strength, and ductility. The integration of AI and machine learning accelerates the discovery of new materials and processing routes. This leads to more efficient and higher-performing titanium components.
Titanium MIM consistently delivers high density, ensuring superior performance across various applications. This process offers strength comparable to wrought titanium, particularly for intricate designs. Manufacturers achieve remarkable precision and tight tolerances, making it ideal for critical components. Its broad applicability in medical, aerospace, and consumer electronics highlights its versatility. Ongoing advancements promise an even more impactful future for Titanium MIM.
FAQ
What is Titanium Metal Injection Molding (MIM)?
Titanium MIM combines plastic injection molding’s shape-making with titanium’s material properties. It produces complex, high-precision titanium components. This advanced manufacturing process creates near-net-shape parts efficiently.
Why is high density crucial for Titanium MIM parts?
High density in Titanium MIM parts means less porosity. This translates into superior mechanical properties. Dense components exhibit greater strength, improved fatigue resistance, and enhanced corrosion resistance. High density ensures reliable performance under demanding conditions.
How does Titanium MIM strength compare to wrought titanium?
Titanium MIM parts achieve strength levels comparable to wrought titanium. Optimized processing and post-sintering treatments, like Hot Isostatic Pressing (HIP), contribute to this. MIM allows complex geometries without significant strength sacrifice.
What are the typical tolerances for Titanium MIM components?
Standard tolerances for Titanium MIM parts vary with feature size. For features under 3 mm, a tolerance of ±0.03 mm is achievable. Overall, sintered tolerances of +/-0.3% of nominal dimensions are typical.
Which industries benefit most from Titanium MIM?
Medical, dental, and aerospace industries significantly benefit from Titanium MIM. Its biocompatibility, high strength-to-weight ratio, and ability to create complex, lightweight parts are ideal for implants, prosthetics, and aircraft components.
How does heat treatment affect Titanium MIM strength?
Heat treatment profoundly affects Titanium MIM strength. Techniques like solution annealing and aging induce controlled microstructural changes. Hot Isostatic Pressing (HIP) further enhances strength by closing internal pores and refining the microstructure.
Can Titanium MIM produce complex geometries?
Yes, Titanium MIM excels at producing highly complex geometries. The process allows for intricate shapes, internal features, and undercuts. This capability enables innovative designs and miniaturization in various applications, including consumer electronics and medical devices.
