Titanium welding presents unique difficulties. Its reactive nature demands precise methods and careful control of defects. Contamination from atmospheric gases, especially oxygen and nitrogen, causes embrittlement. Managing heat input is crucial due to low thermal conductivity, preventing distortion. Weld porosity and cracking in the heat-affected zone are common issues. Specialized equipment and techniques are essential for a successful Titanium Welding Guide.
Key Takeaways
- Titanium welding is hard because titanium reacts easily with air.
- Always clean titanium parts very well before welding to stop problems.
- Use pure argon gas to protect the weld from air while it is hot.
- TIG welding gives clean welds, but laser welding causes less heat damage.
- Too much heat can make titanium weak; control it carefully.
- Check welds closely for cracks or holes to make sure they are strong.
- Good planning and careful work lead to strong titanium welds.
Understanding Titanium: Properties and Weldability for Welding
Unique Properties of Titanium
Titanium possesses several unique properties, making it highly valuable across various industries.
High Strength-to-Weight Ratio
Titanium offers an exceptional strength-to-weight ratio. This characteristic makes it ideal for applications where both strength and minimal mass are critical.
Excellent Corrosion Resistance
The metal exhibits excellent corrosion resistance. A passive oxide layer forms on its surface, protecting it from aggressive environments. This property ensures durability in harsh conditions.
Biocompatibility Applications
Titanium is highly biocompatible. This allows its extensive use in medical implants and prosthetics, as the human body tolerates it well.
Challenges in Welding Titanium
Despite its advantages, titanium presents significant challenges during welding.
Reactivity with Atmospheric Gases
Titanium’s high reactivity with atmospheric gases poses a major hurdle. At elevated temperatures, titanium readily reacts with oxygen, nitrogen, and hydrogen. This reactivity leads to the formation of brittle compounds like titanium oxide, which degrade the weld’s mechanical properties. Titanium’s sensitivity to atmospheric contamination at high temperatures is a key chemical property. Exposure to oxygen, nitrogen, or hydrogen during welding can lead to embrittlement, resulting in a loss of ductility and mechanical strength. Specifically, if oxygen or nitrogen from the air infiltrates the weld metal zone, the hardness of the titanium weld significantly increases, while its elongation decreases. This necessitates complete gas shielding during titanium welding.
High Melting Point Requirements
Titanium has a high melting point, approximately 3,034°F (1,668°C). This is significantly higher than steel or aluminum. Such a high melting point necessitates specialized welding equipment and techniques to achieve proper fusion.
Low Thermal Conductivity Issues
Titanium also exhibits low thermal conductivity. This property makes heat input management crucial. The heat-affected zone (HAZ) in titanium is highly susceptible to temperature changes. Rapid heating and cooling during welding can result in undesirable microstructures and reduced mechanical properties.
Importance of Cleanliness and Shielding
Successful titanium welding relies heavily on meticulous cleanliness and effective shielding.
Preventing Contamination
Preventing contamination is paramount. Titanium welding requires significant attention to cleanliness and auxiliary inert shielding gas. Before welding, thoroughly clean the titanium material, including workpieces and filler rods. Eliminate any contaminants that could compromise weld quality. A cleaner surface results in a stronger joint. Use a wire brush or grinder wheel to clean the surface, then wipe with a clean cloth or alcohol to remove residue. Ensure all edges are free of burrs and sharp edges. Confirm both pieces match perfectly without gaps or weak spots for strong welding. Hydrogen reduces weld metal impact toughness and ductility, leading to joint brittleness. Carbon, while enhancing strength in interstitial solid solution form, forms brittle TiC if it exceeds solubility (0.1% limit), prone to crack formation. Thorough cleaning of workpieces and welding wire is crucial to prevent carbon contamination.
Maintaining Material Integrity
Maintaining material integrity requires strict atmospheric protection. Shield molten titanium weld metal from air pollution entirely. Protect heat-affected zones until they cool below 800°F (427°C). Oxygen and nitrogen permeate titanium above 400°C (752°F), increasing tensile strength but causing embrittlement. Use shielding gas to protect the weld from contamination and ensure a strong weld, maintaining an inert atmosphere until the workpiece cools below 400°C. This comprehensive approach is vital for any Titanium Welding Guide.
TIG Welding Titanium: A Comprehensive Guide
TIG (Tungsten Inert Gas) welding stands as a preferred method for joining titanium. This process offers the precision and control necessary to manage titanium’s unique challenges. Welders achieve extremely clean and high-quality welds with TIG, eliminating slag and the need for post-weld cleaning. This prevents weld contamination, crucial for maintaining titanium’s integrity.
Principles of TIG Welding for Titanium
TIG welding titanium demands strict adherence to specific principles. These principles ensure the production of strong, ductile, and contamination-free welds.
Arc Stability Control
Maintaining a stable arc is paramount when welding titanium. A consistent arc provides uniform heat distribution, which prevents localized overheating or insufficient fusion. Welders must precisely control the arc to achieve consistent penetration and bead profile. This control minimizes defects and ensures the weld metal solidifies correctly.
Heat Input Management
Effective heat input management is critical for titanium welding. Titanium’s mechanical properties are significantly affected by welding temperatures. Prolonged exposure to high temperatures can cause grain growth, a characteristic concern in titanium welding. This growth degrades the material’s strength and ductility. Welders must use concentrated heat sources to achieve the high melting point of titanium efficiently. Precise temperature control helps manage microstructural changes and prevents the formation of undesirable phases, especially concerning beta phase stability above 880 °C.
Essential Equipment and Consumables
Successful TIG welding of titanium relies on selecting the correct equipment and consumables. Each component plays a vital role in achieving high-quality results.
Power Source Requirements
Welders typically use a DC (Direct Current) power source for TIG welding titanium. Specifically, they employ DC Electrode Negative (DCEN) polarity. This setup concentrates heat on the workpiece, promoting deeper penetration and a narrower weld bead. A high-frequency start feature is also beneficial. It initiates the arc without touching the tungsten to the workpiece, preventing contamination.
Torch Selection Criteria
Torch selection depends on the amperage required and the duty cycle. Air-cooled torches are suitable for lower amperage applications. Water-cooled torches become necessary for higher amperages and extended welding periods. They prevent the torch from overheating, ensuring consistent performance and operator comfort. The torch body should be robust and provide good gas coverage.
Tungsten Electrode Types
Choosing the correct tungsten electrode is essential for arc stability and weld quality. Several types work well for titanium:
- 2% Lanthanated (Blue): These electrodes offer excellent arc starting characteristics. They transmit high current without spitting and maintain a stable arc at both high and low currents. Many welders find them versatile for all metals, including titanium.
- 2% Ceriated (Grey): Ceriated electrodes provide good arc start and restart characteristics with no spitting. They are ideal for low- and medium-current welding on all metals.
- Rare Earth Tungsten (Chartreuse or Purple Mix): These electrodes offer the best low-current arc starting characteristics. Welders can use them on all metals, and they are often preferred for automated welding processes. Rare Earth Mix electrodes are fast, reliable, long-lasting, and highly durable, performing well in both AC and DC applications.
- 1.5% Lanthanated (Gold): These electrodes perform best in both AC and DC applications.
- 2% Thoriated (Red): While extremely long-lasting and durable, thoriated electrodes contain radioactive thorium. Many welders now opt for non-radioactive alternatives like lanthanated or ceriated electrodes.
The table below summarizes common electrode types suitable for titanium welding:
| Electrode Type | Color Code | Suitability for Titanium | Advantages for Titanium Welding |
|---|---|---|---|
| 1.5% Lanthanated | Gold | Yes | Best used in both AC & DC applications. |
| 2% Lanthanated | Blue | Yes | Relative ease of striking an arc, lower amperage required, performs exceptionally well in both AC & DC applications, popular general use electrode. |
| 2% Ceriated | Grey | Yes | Extreme ease of striking an arc with lower amperages, extraordinary performance with regard to both AC & DC welding applications. |
| 2% Thoriated | Red | Yes | Fast and reliable arc-striking, long-lasting, highly durable, performs well in both AC & DC applications. |
| Rare Earth Mix | Purple | Yes | Fast and reliable arc-striking, long lasting, highly durable, performs well in both AC & DC applications. |
Filler Metal Selection
Selecting the appropriate filler metal is crucial for matching the mechanical properties and corrosion resistance of the base titanium material. Welders typically use filler metals that closely match the grade of the titanium being welded. For example, when welding commercially pure titanium, they use a commercially pure titanium filler wire. This ensures the weld joint possesses similar strength, ductility, and corrosion resistance as the parent metal.
Shielding Gas Requirements
Titanium’s high chemical activity at elevated temperatures necessitates a robust protective atmosphere. This prevents contamination from elements like carbon, nitrogen, oxygen, and hydrogen.
High-Purity Argon Use
Welders must use 100% high-purity argon as the primary shielding gas for TIG welding titanium. Argon effectively prevents oxidation and improves weld purity. The gas creates an inert envelope around the molten weld pool and the tungsten electrode. This prevents atmospheric gases from reacting with the hot titanium. Gas purity standards are extremely strict; even trace amounts of contaminants can compromise weld quality.
Trailing Shield Application
A standard TIG torch provides primary shielding for the weld pool. However, titanium remains susceptible to oxidation as it cools. A trailing shield provides additional protection to the cooling weld bead and the heat-affected zone. This secondary shield extends the inert gas coverage behind the torch, protecting the hot metal until it cools below its critical oxidation temperature. This is a vital step in any comprehensive Titanium Welding Guide.
Purge Gas Necessity
Back purging is essential for titanium welding. This involves filling the backside of the weld joint with an inert gas, typically argon. Back purging prevents atmospheric contamination from the underside of the weld. Without it, the root of the weld can oxidize, leading to embrittlement and reduced mechanical properties. Welders often use specialized purge dams or tape to create an enclosed space for the purge gas.
Pre-Welding Preparation
Meticulous pre-welding preparation is fundamental for achieving high-quality titanium welds. This stage directly impacts the final weld’s integrity and mechanical properties.
Cleaning Procedures
Thorough cleaning of titanium workpieces is paramount. Welders must eliminate all contaminants before welding. For workpieces from stamping, shearing, or cutting, clean joint edges with a wire brush or carbide scraper. This removes oxide film and exposes the metallic luster. For gas-cut workpieces, remove at least 2-5mm of the machined layer. Then, use solvents like acetone, ethanol, or methanol to remove fingerprints, organic substances, and oil stains from grooves and welding wire. For hot-processed or heat-treated parts without protective gas, comprehensive cleaning, including spraying and chemical cleaning, is necessary.
Chemical cleaning also plays a crucial role. Hydrochloric acid is commonly used to clean welding wire surfaces. After pickling and water washing, the wire should be used within four hours or re-cleaned. Welding wire can be stored in an oven at 150-200 °C. Welders must wear clean white gloves when handling welding wire to prevent contamination. Cover welding parts with plastic cloth to prevent contamination, which can be scrubbed off with acetone or alcohol.
Tip: Always use dedicated tools for titanium cleaning to avoid cross-contamination from other metals.
Different types of cleaners serve specific purposes:
- Acidic Cleaners: These are for specialized oxide and scale removal, heat treat discoloration, or mineral deposits. Examples include solutions following AMS and ASTM specifications. These require rigorous control due to the risk of hydrogen embrittlement.
- Semi-Aqueous Cleaners: These effectively remove heavy-duty hydrocarbons, such as thick greases and protective waxes. Products like Nature-Sol Emulsion are used as a pre-cleaning step.
- Alkaline Cleaners: These are the most common choice for removing oils, greases, and organic contaminants. Strong alkaline detergents (pH 12-14) like AquaVantage® 815 QR-NF and Alkaline Deruster HD are for aggressive cleaning. Mild alkaline detergents (pH 9-11) like AquaVantage® 815 GD and AquaVantage® 1990 GD are preferred for many operations.
- Neutral pH Cleaners: These offer maximum material safety, removing light soils, dust, fingerprints, and water-soluble contaminants. An example is AquaVantage® 1696 GD (pH 7-9).
Joint Design Considerations
Proper joint design is essential for titanium welding. It influences heat distribution, penetration, and the overall mechanical performance of the weld. Welders typically use square butt joints for thin sections and V-groove or U-groove joints for thicker materials. Ensure precise fit-up with minimal gaps to prevent excessive heat input and reduce the risk of contamination. Backing bars, often made of copper or stainless steel, help support the weld pool and provide additional shielding for the root pass.
Welding Techniques and Parameters
Precise control over welding techniques and parameters is critical for successful titanium TIG welding. These settings directly influence the weld’s microstructure and mechanical properties.
Amperage Settings
Amperage settings directly control the heat input into the titanium workpiece. Welders must select an amperage that provides sufficient penetration without overheating the material. Too low an amperage results in incomplete fusion, while too high an amperage causes excessive melt-through and potential grain growth. Adjust amperage based on material thickness, joint design, and travel speed.
Travel Speed Optimization
Optimizing travel speed is crucial for managing heat input and achieving a consistent weld bead. A slow travel speed increases the heat input, potentially leading to grain growth and distortion. Conversely, a fast travel speed can result in insufficient penetration and lack of fusion. Welders maintain a steady, consistent travel speed to ensure uniform heat distribution and proper solidification of the weld pool.
Pulse Settings for Control
Pulse TIG welding offers enhanced control over heat input, making it highly beneficial for titanium. Pulsing involves alternating between a high peak current and a lower background current. The peak current provides the necessary heat for penetration, while the background current allows the weld pool to cool slightly, preventing overheating. This technique helps refine the grain structure, reduces distortion, and improves overall weld quality.
Post-Welding Considerations
The steps taken immediately after welding significantly impact the final properties of the titanium weld. Proper cooling and assessment are vital.
Cooling Methods
The cooling rate significantly influences the transformed β microstructure in the fusion zone and heat-affected zone of titanium alloys. Rapid cooling rates, specifically faster than 410 K/s, lead to a complete martensitic transformation, forming acicular α’. Conversely, slower cooling rates promote diffusion-controlled Widmanstätten α-formation. Intermediate cooling rates result in a basketweave microstructure, while very slow cooling rates favor a colony-type microstructure characterized by aligned and parallel α plates. Welders must manage cooling to achieve desired microstructures.
Post-weld heat treatments (PWHT) are often employed to mitigate residual stresses, stabilize and homogenize the weld zone microstructure, and enhance ductility. During PWHT, microstructural changes occur as the metastable α’ phase decomposes into equilibrium α and β phases, and the overall microstructure coarsens. This comprehensive approach is a key aspect of any effective Titanium Welding Guide.
Discoloration Assessment
Discoloration on the weld bead and surrounding heat-affected zone indicates the level of atmospheric contamination during welding and cooling. Welders use a color chart to assess the quality of the shielding.
- Bright silver: Indicates excellent shielding and minimal contamination.
- Straw yellow: Suggests slight oxidation, generally acceptable for many applications.
- Blue: Indicates moderate oxidation, often requiring re-evaluation of shielding.
- Purple or grey: Signifies significant contamination, indicating a poor weld that likely requires rework.
Welders strive for bright silver or light straw-colored welds to ensure optimal mechanical properties and corrosion resistance.

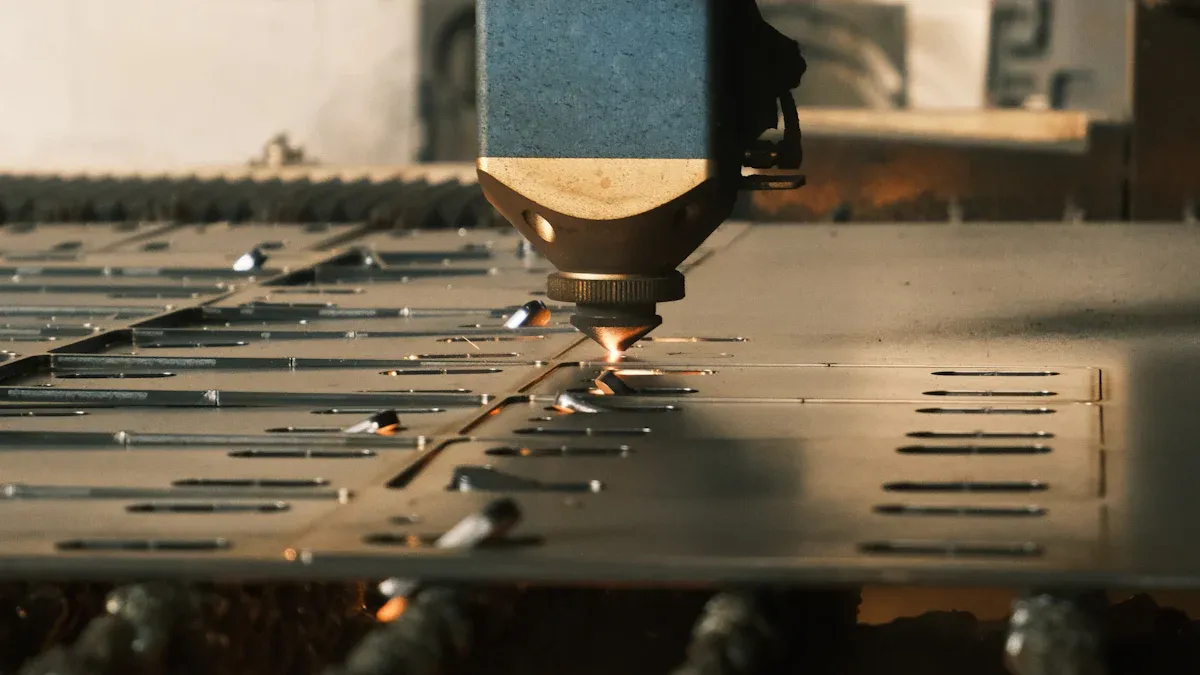

Laser Welding Titanium: Techniques and Advantages
Laser welding offers a modern and highly effective method for joining titanium. This process uses a concentrated beam of light to create precise, high-quality welds. It addresses many challenges associated with titanium’s reactive nature and sensitivity to heat.
Principles of Laser Welding for Titanium
Laser welding operates on fundamental principles that make it ideal for titanium. These principles allow for precise control over the welding process and the resulting weld properties.
High Energy Density
Laser welding delivers energy with exceptional concentration. A tightly focused laser beam directs energy at high levels, allowing for deep penetration with minimal heat spread into the surrounding material. This high energy density rapidly heats and melts the titanium, fusing it with adjacent material. The focused beam ensures heat localizes to the weld area. This concentrated energy delivery leads to rapid heating and cooling cycles, which minimize thermal distortion, residual stress, and microstructural degradation.
Narrow Heat-Affected Zone
The localized heat input in laser welding creates a very narrow heat-affected zone (HAZ). The tightly focused laser beam localizes heat to the weld area, reducing heat transfer to the surrounding material. This minimizes distortion, limits grain growth, and reduces oxidation. Laser welding is a low-heat process, meaning less heat transferred to the surrounding material. This reduces the need for post-weld treatments and allows for faster welding speeds. Parameters like power density, pulse duration, and beam diameter can be adjusted to control the penetration depth, weld width, and the size of the HAZ. Shorter pulse durations, for instance, minimize heat transfer and result in a smaller HAZ. Different operational modes, such as pulsed, continuous wave (CW), or modulated, also affect heat flow and HAZ formation. Pulsed mode minimizes HAZ width and thermal distortion, while modulated input offers better control over thermal cycling and cooling rates.
Advantages of Laser Welding
Laser welding provides several significant advantages when working with titanium, especially compared to traditional methods like TIG welding.
Precision and Accuracy
Laser welding offers unparalleled precision and accuracy. It creates smaller, more controlled welds, making it ideal for delicate or small parts. This non-contact process results in cleaner welds with minimal thermal distortion. The precision makes it perfect for intricate details, such as in electronics and medical device manufacturing.
High Welding Speed
Laser welding achieves high welding speeds. The rapid heating and cooling cycles, combined with the concentrated energy, allow for faster processing times. This efficiency can significantly increase production rates for titanium components.
Minimal Distortion
Laser welding produces minimal distortion in titanium workpieces. Its heat input is typically 10 to 100 times lower than conventional processes, dramatically reducing HAZ size and associated distortion. This minimal heat input allows welding of pre-machined components without subsequent dimensional correction, reducing costs and improving quality. Distortion remains minimal even on thin materials prone to warping with conventional methods, benefiting industries like aerospace and electronics. The narrow HAZ preserves base material properties adjacent to welds, maintaining strength and corrosion resistance, which is crucial for heat-sensitive materials like titanium alloys.
| Aspect | Laser Welding | TIG Welding |
|---|---|---|
| Precision & Quality | Finer focus, smaller, more controlled welds, ideal for delicate/small parts. | High aesthetic quality, suitable for visual appeal. |
| Heat Input & Distortion | Produces less heat, significantly reducing the risk of distortion and damage to surrounding materials; minimal HAZ. | Provides control over heat input, but excessive heat may still cause distortion. |
Types of Lasers Used
Several types of lasers are commonly employed for titanium welding, each with specific characteristics suitable for different applications. Understanding these types is an important part of any comprehensive Titanium Welding Guide.
Fiber Lasers
Fiber lasers are a popular choice for titanium welding. They offer high beam quality and efficiency, making them versatile for various industrial applications. Fiber lasers deliver a highly focused beam, which contributes to their ability to create narrow, deep welds with minimal heat input.
Nd: YAG Lasers
Nd :YAG (Neodymium: Yttrium-Aluminum-Garnet) lasers are another widely used type for welding titanium. These lasers provide high power output and can operate in both pulsed and continuous wave modes. Their wavelength allows for good absorption by metallic materials like titanium, making them effective for many welding tasks.
Other types of lasers used in titanium welding include CO₂ lasers and Disk (Yb: YAG ytterbium) lasers.
Equipment and Setup
A successful laser welding operation for titanium relies on a carefully configured setup. Each component plays a crucial role in achieving the desired weld quality and precision.
Laser Source Components
The laser source forms the core of the welding system. Common options include CO2 lasers and fiber lasers. Fiber lasers are noted for their efficiency, compact design, and ability to handle reflective materials. Solid-state lasers offer stability and a long service life for precision applications. The choice of laser source depends on the specific application requirements, including material thickness, desired weld depth, and production volume.
Optics and Focusing
The beam delivery system focuses and directs the laser beam onto the workpiece. This system utilizes fiber optics, mirrors, or lenses to ensure consistent power density and precise weld placement. Proper alignment and maintenance of these optical components are critical. They ensure the laser energy concentrates accurately at the weld joint, which is essential for achieving narrow, deep welds with minimal heat input.
Shielding Gas Delivery
Shielding gas supply is crucial for preventing oxidation and contamination at the weld site. Gases like argon or nitrogen are used to maintain a clean environment around the molten weld pool. This inert atmosphere protects the hot titanium from reacting with atmospheric oxygen and nitrogen. Effective shielding improves weld aesthetics and strength, preventing embrittlement. The delivery system must ensure a consistent and adequate flow of gas to the weld area and the cooling zone.
Process Parameters
Optimizing process parameters is vital for achieving high-quality laser welds in titanium. These settings directly influence the weld’s geometry, mechanical properties, and overall integrity.
Power Settings
Power settings determine the amount of energy delivered to the workpiece. Higher power generally leads to deeper penetration and faster welding speeds. However, excessive power can cause spatter, keyhole instability, or undesirable microstructural changes. Welders must carefully select power levels based on material thickness, joint design, and the desired weld characteristics.
Focus Control
Focus control refers to the precise positioning of the laser beam’s focal point relative to the workpiece surface. An optimal focal position ensures maximum energy density at the weld joint, leading to efficient melting and penetration. Adjusting the focus allows for control over weld width and depth. A slightly defocused beam can create a wider, shallower weld, while a sharply focused beam produces a narrow, deep weld.
Travel Speed
Travel speed dictates how quickly the laser beam moves across the workpiece. It directly affects the heat input per unit length of the weld. A faster travel speed reduces the total heat input, minimizing distortion and the heat-affected zone. Conversely, a slower travel speed increases heat input, which can lead to deeper penetration but also increases the risk of overheating and grain growth. Welders must balance travel speed with power settings to achieve consistent and high-quality welds.
Shielding Gas Flow
Shielding gas flow rates are critical for maintaining an inert atmosphere around the weld pool and the cooling metal. An insufficient flow rate can lead to contamination and discoloration. An excessive flow rate can disrupt the weld pool or cause turbulence, drawing in atmospheric gases. Welders must optimize the flow rate to ensure complete coverage without adversely affecting the weld process.
Applications of Laser Welding Titanium
Laser welding titanium finds extensive use across various industries due to its precision, speed, and ability to produce high-integrity welds. This method is particularly valuable for applications demanding stringent quality and performance. This comprehensive Titanium Welding Guide highlights its versatility.
Medical Device Manufacturing
In medical device manufacturing, laser welding is used for implants and products like pacemakers, surgical blades, and endoscopic equipment. Precise micro-welds, often less than 1 mm deep, are crucial for very thin metals in these applications. For instance, 1000W systems are used for thin titanium sheets or components requiring precision, such as medical devices. The biocompatibility of titanium combined with the precision of laser welding makes it an ideal choice for critical medical components.
Aerospace Component Fabrication
Aerospace component fabrication extensively utilizes laser welding for its precision. Applications include airframes and fuel tanks. A significant benefit in aerospace is the reduction in the total number of rivets and, consequently, aircraft weight, which is a critical factor for manufacturers. Different power systems cater to various needs:
- 1000W systems are used for small structural assemblies.
- 1500W systems are suitable for moderate-thickness parts like lightweight aerospace brackets.
- 2000W systems are used for applications needing stronger welds, including aircraft components.
- 3000W systems are employed in military and aerospace manufacturing where weld integrity under stress is critical.
- 6000W systems are utilized in heavy-duty applications such as thick-walled titanium pipes and structural aerospace elements.
Automotive Industry Uses
The automotive industry increasingly adopts laser welding for titanium components. Manufacturers use it for lightweighting initiatives, particularly in high-performance and luxury vehicles. Laser welding creates strong, lightweight structures, contributing to improved fuel efficiency and performance. Applications include exhaust systems, structural components, and specialized engine parts where titanium’s strength-to-weight ratio and corrosion resistance are beneficial.
Common Titanium Welding Defects and Solutions
Titanium welding presents specific challenges. Welders must understand common defects and their solutions to ensure high-quality, durable joints. This section details typical issues and provides practical strategies for prevention and correction.
Porosity Defects
Porosity refers to small gas pockets trapped within the solidified weld metal. These voids weaken the weld and can compromise its mechanical properties.
Causes of Porosity
Porosity defects in titanium welds primarily arise from titanium’s strong affinity for atmospheric gases at high temperatures. As titanium approaches its melting point, approximately 3,000°F, it becomes highly reactive. It readily absorbs oxygen, hydrogen, and nitrogen from the surrounding atmosphere. These absorbed gases then become trapped within the molten weld pool during solidification, forming pores. Contaminants on the workpiece surface, such as moisture, grease, or oxides, also contribute to gas formation and subsequent porosity.
Solutions for Porosity
Preventing porosity requires meticulous attention to cleanliness and shielding. Welders must diligently clean all components before welding. They should wear gloves to avoid transferring skin oils and other contaminants to the titanium surface. It is crucial to keep all steel traces away from titanium to prevent cross-contamination. During welding, using the largest possible shroud with the shortest arc length improves gas coverage. Employing gas lenses further enhances shielding effectiveness by providing a laminar flow of inert gas. A trailing shield ensures the metal cools in an oxygen-free environment, protecting the hot titanium from atmospheric exposure. Additionally, purging the weld back face with shielding gas prevents contamination from the underside of the weld.
Embrittlement and Contamination
Embrittlement and contamination severely degrade titanium weld quality, leading to reduced ductility and premature failure.
Causes of Embrittlement
Titanium hydriding represents a significant metallurgical degradation phenomenon. This process leads to brittle fracture, particularly in thin-wall titanium tubes. Hydrogen penetrates the titanium and reacts to form an embrittling hydride phase. This process often accelerates under galvanic corrosion conditions or due to iron contamination on the titanium surface. Furthermore, electron beam welding (EBW) of titanium alloys, despite its advantages, can lead to non-uniform microstructures and solidification defects like welded pores. These issues stem from high heat input and exposure to atmospheric contamination during the welding process. Welded pores are a primary cause of fatigue failure in welded joints, contributing to embrittlement.
Solutions for Contamination
Maintaining cleanliness during fabrication and repair is crucial to prevent embrittlement and contamination. Welders must ensure all surfaces are free from hydrogen-containing substances, such as moisture, oils, and greases. For EBW, ensuring consistent welding process parameters and utilizing techniques like beam oscillation improve weld quality and reduce defects. Proper shielding with high-purity inert gas, both during welding and cooling, remains paramount. This prevents the absorption of oxygen, nitrogen, and hydrogen from the atmosphere.
Cracking Issues
Cracking represents a critical defect in titanium welds, manifesting in various forms and at different temperatures.
Causes of Cracking
Cracking in titanium welds typically falls into two main categories: hot cracking and cold cracking.
- Hot Cracking: This type of cracking occurs at temperatures above 1000°F and often appears immediately as the weld solidifies. Hot cracks typically run in the longitudinal direction of the weld bead or directly adjacent to it. Common forms include centerline and crater cracks. Centerline cracking can result from segregation, where low-melting elements are pushed to the weld center during solidification. It can also occur due to bead shape cracking, which results from poor fit-up or weak joint design, leading to a wide bead with a thin throat. Crater cracking forms when a weld pass ends prematurely, creating a thin, wide depression that lacks sufficient strength to withstand cooling stresses. Other causes include material type or contamination, such as free machining steels or the presence of paint, rust, dirt, or zinc in the weld pool, which can decrease weld strength.
- Cold Cracking: Cold cracking occurs below 600°F and may not appear until hours or even days after the weld cools. It often starts in the base metal and spreads transversely into the weld. This phenomenon is frequently referred to as hydrogen-induced and/or heat-affected zone (HAZ) cracking. Cold cracking results from residual stresses from the base material restraining the weld, combined with the presence of diffusible hydrogen. Rapid cooling in thick materials can lead to the formation of brittle martensite in the HAZ, where diffusible hydrogen can coalesce, creating residual stresses that eventually cause cracking. In titanium welding, hydrogen-induced microcracks pose a significant quality challenge. Hydrogen absorption during welding is the primary cause of cold cracking. This occurs when moisture, oil contamination, and ambient humidity introduce hydrogen into the weld pool. As the weld cools, titanium’s solubility for hydrogen sharply decreases, leading to a supersaturated state that promotes embrittlement and cracking, particularly in stress concentration zones. Rapid cooling, especially in thin plates or cold environments, exacerbates this issue by preventing hydrogen diffusion. Cold cracking in titanium alloy welding is primarily influenced by hydrogen content and constraint stress. While the quenching hardened martensitic microstructure is a factor in some materials, it is not the main cause in titanium alloys due to their relatively low quenching hardness. The risk of delayed cracking is significant when residual stress exists in the welded structure and hydrogen invasion occurs, leading to hydride cracks and microcrack propagation under stress concentration. Cold welding cracks are more likely to appear days or weeks after the weld is complete. They often occur when hydrogen gathers around imperfections in the weld, increasing pressure on the weld structure. This process of hydrogen diffusion takes time, leading to delayed cracking.
Solutions for Cracking
Addressing cracking issues requires a multi-faceted approach. To prevent hot cracking, welders must ensure proper joint design and fit-up, avoiding wide beads with thin throats. They should also select appropriate filler metals that minimize segregation. Controlling heat input and maintaining consistent travel speed helps manage solidification stresses. For cold cracking, minimizing hydrogen sources is paramount. This involves thorough cleaning of the workpiece and filler metal, ensuring a dry welding environment, and using high-purity shielding gases. Controlling cooling rates, especially in thicker sections, can allow more time for hydrogen to diffuse out of critical areas. Preheating the workpiece can reduce thermal gradients and residual stresses, while post-weld heat treatments can help relieve residual stresses and promote hydrogen diffusion. Following a comprehensive Titanium Welding Guide helps prevent these critical defects.
Discoloration Problems
Causes of Discoloration
Solutions for Discoloration
Lack of Fusion and Penetration
Causes of Lack of Fusion
Solutions for Lack of Penetration
Discoloration Problems
Discoloration on a titanium weld indicates atmospheric contamination. This contamination compromises the weld’s integrity and mechanical properties. Welders must understand the different levels of discoloration and their implications.
Causes of Discoloration
Titanium’s high reactivity with atmospheric gases at elevated temperatures causes discoloration. When hot titanium comes into contact with oxygen, it forms various oxides, which appear as different colors. Even minor impurities in the shielding gas or insufficient gas coverage can lead to a blue tint and uneven marks on the final product. While some industries might intentionally produce purple and blue colors in titanium welds for aesthetic reasons, these are typically signs of contamination and a weakened weld. Therefore, experts do not recommend these colors for structural integrity.
The table below illustrates the relationship between peak temperature exposure and the resulting discoloration:
| Discoloration Level | Indication (Peak Temperature) |
|---|---|
| Silver-white | Below 200 °C |
| Pale yellow | ~300 °C |
| Golden | ~400 °C |
| Blue to violet | 500–600 °C |
| Dark gray (varying shade) | 700–900 °C |
Bright silver to light straw colors indicate adequate protection. Gold, blue, violet, or gray tones signify progressively higher exposure temperatures and/or insufficient shielding.
Solutions for Discoloration
Preventing discoloration requires meticulous attention to shielding gas quality and application. Welders must use high-purity argon gas (99.999%) as a shielding gas. Sourcing shielding gas from reputable suppliers is essential to ensure its purity and prevent discoloration. Proper shielding ensures the molten weld pool and the cooling heat-affected zone remain protected from atmospheric oxygen and nitrogen. This includes using a primary torch shield, a trailing shield, and back purging for complete coverage until the titanium cools below its critical oxidation temperature.
Lack of Fusion and Penetration
Lack of fusion and penetration are critical defects in titanium welding. They occur when the weld metal does not properly bond with the base material or previous weld passes. These defects create weak points in the weld, significantly reducing its strength and reliability.
Causes of Lack of Fusion
Several factors contribute to a lack of fusion and penetration in titanium welds. One common cause involves improper welding process parameters. For example, some studies directly attributed a lack of fusion and leaks in torque converter welds to the Lincoln Power Wave pulsed mode. This mode caused weld instability and insufficient weld energy for the deposition rates. This indicates that pulsed MIG, especially on certain parts, can lead to poor weld fusion due to inherent process issues. Certain weld processes, such as pulsed MIG, can inherently create weld defects like poor weld fusion, even with skilled welders and optimal parameters.
Another significant cause relates to surface preparation. Cutting methods that leave a smeared surface can cause a lack of fusion. This smeared metal prevents proper bonding. Contaminants on the joint surfaces, such as oxides, oils, or foreign materials, also hinder proper fusion.
Solutions for Lack of Penetration
Resolving issues with lack of fusion and penetration requires a comprehensive approach focusing on preparation, cleanliness, and process optimization.
- Surface Preparation: Welders should avoid cutting methods that leave a smeared surface. High-speed circular saws are preferred over band saws. If a smeared surface exists, welders must file it to remove the smeared metal before welding.
- Dedicated Tools: Use dedicated tools for cutting and grinding titanium, such as a carbide deburring tool or file. This prevents cross-contamination from other alloys.
- Cleaning Procedures: Follow a recommended cleaning procedure. Wipe surfaces with industrial cleaning agents like acetone or MEK. Remove oxides by grinding or filing, then wipe again. Welders must not use steel wool, abrasives, or chlorine-based cleaning agents.
- Filler Metal Preparation: Wipe filler metal with acetone or MEK. Clip the end just before welding to expose pure, clean titanium.
- Joint Fit-up: Ensure tight joint fit-up. This minimizes heat input and surface area exposure to oxygen, which helps prevent embrittlement and loss of corrosion resistance.
- Shielding Gas: Utilize 100% argon as both a shielding and backing gas. Pay close attention to purity levels and dew point specified in weld procedures. This protects the weld puddle from oxygen until it cools below 500-800°F.
- Process Adjustment: If a specific welding mode causes issues, adjust the process. For instance, switching off the pulsed mode and setting welds with the CV MIG spray transfer mode, along with a change in wire size, can resolve problems with insufficient weld energy and instability. This comprehensive Titanium Welding Guide emphasizes these critical steps for successful outcomes.
Best Practices for Successful Titanium Welding Guide
Achieving high-quality titanium welds consistently requires adherence to stringent best practices. These practices address titanium’s unique properties and mitigate its challenges. Following these guidelines ensures strong, ductile, and contamination-free weld joints, crucial for any Titanium Welding Guide.
Strict Cleanliness Protocols
Meticulous cleanliness forms the foundation of successful titanium welding. Contaminants can severely compromise weld integrity.
Surface Preparation
Welders must thoroughly clean all titanium surfaces before welding. This includes removing oxides, grease, oil, and any foreign particles. They often use dedicated tools, such as carbide scrapers or stainless steel brushes, to prevent cross-contamination from other metals. After mechanical cleaning, wiping surfaces with solvents like acetone or isopropyl alcohol removes residual organic matter.
Workspace Hygiene
Maintaining a clean welding environment is equally important. Dust, dirt, and airborne particles can settle on prepared surfaces or enter the shielding gas, leading to contamination. Welders should ensure their workspace is free from debris and use clean gloves when handling titanium components.
Optimized Shielding Gas Management
Effective shielding gas management is paramount for protecting reactive titanium from atmospheric contamination.
Gas Purity Standards
High-purity shielding gas is essential. Welders recommend using 99.99% or higher-grade argon to prevent oxidation and heat tint. For sensitive applications like titanium welding, impurity levels, particularly for oxygen and water vapor, should not exceed 10 ppm. Even minute amounts of atmospheric gases can lead to discoloration, brittle welds, and poor mechanical properties. The highest purity argon or argon-helium mixtures are required for effective shielding.
Flow Rate Control
Controlling shielding gas flow rates is critical. Typical TIG setups operate with flow rates between 15 and 25 CFH. For reactive metals like titanium, additional shielding is crucial. Welders often achieve this through trailing cups or back purging to extend the gas envelope and protect the metal as it cools. This prevents atmospheric gases from reacting with the hot titanium.
Controlled Heat Input
Managing heat input effectively prevents common titanium welding issues like distortion and grain growth.
Minimizing Distortion
Increased heat input leads to a larger heat-affected zone (HAZ), causing more material expansion and contraction, which heightens distortion risk. Conversely, fast cooling can cause sudden contraction and tensile stresses, leading to warping. Laser welding, due to its highly focused heat input, results in less heat loss to the surrounding metal compared to traditional processes like TIG welding. This lower heat input helps reduce or avoid excessive oxidation and residual stresses. Welders can optimize welding parameters, such as laser power, speed, and pulse settings, to balance heat input and penetration. Using fixtures and clamps secures parts, controlling movement and deformation during welding. Employing backing bars or heat sinks helps manage heat flow and stabilizes thin or heat-sensitive materials.
Preventing Grain Growth
Excessive heat input can also lead to excessive grain growth, weakening the metal. The higher welding speed of laser welding (approximately 4X faster than TIG) contributes to less heat input, as heat has less time to propagate into the HAZ, further reducing grain growth. In TIG welding, heat control is crucial to prevent grain growth in the heat-affected zone. Pulsed laser welding allows for further control over heat input for optimal titanium weld quality, helping to prevent grain growth.
Proper Joint Design and Fit-up
Proper joint design and precise fit-up are crucial for achieving high-quality titanium welds. These steps directly influence weld integrity and prevent defects. Welders must meticulously prepare the joint before any welding begins.
Gap Control
Maintaining a consistent butt gap and precise fit-up is critical, especially for thin tubes. This prevents issues like undercuts or burn-through. All weld areas must be free from oil, oxide layers, fingerprints, and dust. Specialized stainless steel wire brushes, used exclusively for titanium, should be applied shortly before welding. This ensures a clean surface for optimal fusion. Fixturing is commonly used to hold parts in place and minimize distortion during welding.
Edge Preparation
Edge preparation varies depending on the component. Titanium flanges are often welded with a beveled edge. This design allows for better penetration and a stronger weld. Titanium shells may use U- or V-grooves. These groove designs provide sufficient space for filler material and ensure full penetration, which is essential for structural integrity. Proper edge preparation minimizes the risk of incomplete fusion and other weld defects.
Post-Weld Inspection and Quality Control
After completing the welding process, thorough inspection and quality control are essential. These steps confirm the weld meets required standards and identify any potential flaws. This ensures the weldment’s suitability for its intended use.
Visual Inspection
After the weld bead is formed, post-weld inspections determine if the weld meets desired quality standards. These inspections identify surface defects that could compromise joint integrity. Common issues detected during this phase include undercut, burn-through, and porosity. Welders or inspectors also use measuring tools to visually assess the uniformity of the weld beads. While some defects may be visible on the surface, others remain hidden beneath the weld bead. They stay undetected without specialized inspection methods.
Non-Destructive Testing
Post-Weld Non-Destructive Testing (NDT) identifies internal flaws without compromising weld integrity. For non-code fabrication, NDE can be as straightforward as visual inspection or liquid/dye penetrant inspection. For code fabrication, specific mandatory inspections may be required. These NDE methods should be considered for both intermediate inspections during multi-pass welding and for final acceptance of the weldment.
Liquid/Dye Penetrant Inspection involves applying a penetrant. After a specified dwell time, excess penetrant is removed. A developer is then applied to draw out the penetrant from defects, making them visible to the inspector. Radiographic Testing (RT) uses X-rays or gamma rays to inspect the internal structure of welded joints. It provides a detailed image of the weld, revealing internal defects such as incomplete fusion, slag inclusions, or gas pockets. RT is particularly valuable for assessing critical welds not accessible for visual inspection. Ultrasonic Testing (UT) utilizes high-frequency sound waves to inspect welded joints for internal defects. A transducer generates ultrasonic waves that travel through the material. Internal flaws reflect these waves, allowing technicians to accurately determine the size, shape, and location of defects. This comprehensive approach to quality control is vital for any Titanium Welding Guide.
Mastering titanium welding requires a deep understanding of its unique properties. Welders must prioritize meticulous preparation, including thorough cleaning of the workpiece and using high-purity argon shielding gas. Precise technique, such as controlling heat input and maintaining optimal travel speed, is crucial for success. This approach prevents common issues like distortion and grain growth. Proactive defect management ensures strong, corrosion-resistant welds. For instance, proper shielding prevents oxygen contamination, which causes brittle, discolored weldments. Following this comprehensive Titanium Welding Guide leads to high-quality, durable titanium fabrications.
FAQ
What makes titanium welding so difficult?
Titanium welding is challenging due to its high reactivity with atmospheric gases. It readily absorbs oxygen, nitrogen, and hydrogen at elevated temperatures. This absorption causes embrittlement. Titanium also has a high melting point and low thermal conductivity, requiring precise heat management.
Which shielding gas is best for TIG welding titanium?
Welders use 100% high-purity argon as the primary shielding gas for TIG welding titanium. Argon effectively prevents oxidation and improves weld purity. It creates an inert envelope around the molten weld pool and the tungsten electrode.
How does laser welding reduce distortion in titanium components?
Laser welding minimizes distortion through its high energy density and narrow heat-affected zone (HAZ). The focused laser beam localizes heat to the weld area. This reduces heat transfer to surrounding material, minimizing thermal expansion and contraction.
What causes porosity defects in titanium welds?
Porosity defects in titanium welds primarily arise from trapped atmospheric gases. Titanium absorbs oxygen, hydrogen, and nitrogen from the air during welding. These gases become trapped within the molten weld pool as it solidifies, forming small voids.
How do welders prevent discoloration on titanium welds?
Welders prevent discoloration by using high-purity argon gas and effective shielding. This includes a primary torch shield, a trailing shield, and back purging. This protects the hot titanium from atmospheric oxygen until it cools below its critical oxidation temperature.
What is the difference between hot and cold cracking in titanium welds?
Hot cracking occurs at temperatures above 1000°F, often during weld solidification. Cold cracking appears below 600°F, sometimes hours or days after welding. Hydrogen absorption often induces cold cracking.
Why is meticulous cleanliness crucial for titanium welding?
Meticulous cleanliness is crucial because titanium is highly reactive. Contaminants like oils, grease, and oxides can lead to embrittlement, porosity, and other defects. Clean surfaces ensure proper fusion and maintain weld integrity.
