Key Takeaways
Titanium screws offer exceptional performance advantages that make them essential for demanding industrial applications across aerospace, medical, marine, and chemical processing sectors.
• Superior strength-to-weight performance: Titanium screws are 45% lighter than steel while maintaining equivalent strength, with Grade 5 delivering 4x the strength of 316 stainless steel.
• Unmatched corrosion resistance: Self-healing oxide layer provides 100x greater chloride resistance than stainless steel, enabling decades of service in harsh environments.
• Biocompatible and non-magnetic properties: Essential for medical implants with 95% success rates and MRI-compatible applications due to permeability of 1.00005-1.0001.
• Grade selection drives performance: Grade 2 offers cost-effective corrosion resistance, Grade 5 provides maximum strength, and Grade 7 delivers ultimate chemical resistance.
• Wide application versatility: From M3 titanium screws in electronics to M36 specifications in aerospace, titanium fasteners serve critical functions across temperature ranges from -253°C to 600°C.
The investment in titanium screws pays dividends through reduced maintenance costs, extended service life, and superior performance in applications where conventional fasteners fail.

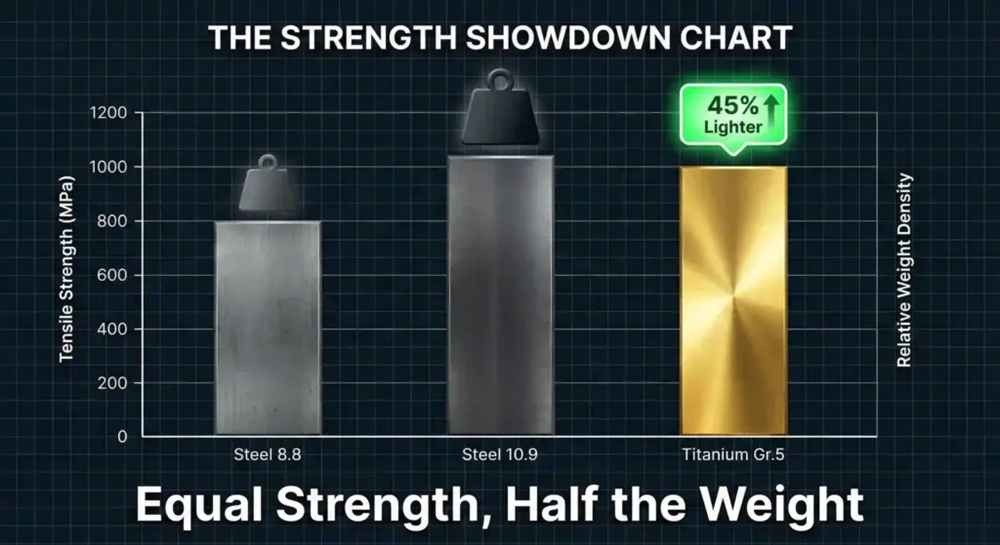

Titanium screws deliver a strength-to-weight ratio that sets them apart from conventional fasteners. They are 45% lighter than steel while maintaining equivalent strength. Grade 5 titanium proves 4 times stronger than 316 stainless steel. Grade 2 offers double the strength at half the weight. These fasteners exhibit outstanding corrosion resistance and can last many decades in polluted seawater. They form a natural oxide coating that protects against rust and chemical degradation. Their biocompatibility makes titanium screws for surgery essential in medical implants. These include orthopedic plates and screws, spinal fusion procedures, and dental applications. The material’s non-magnetic properties and extreme temperature tolerance extend its use in aerospace, marine, chemical processing, and electronics sectors. Engineers who know the distinct grades can select optimal fastening solutions for demanding applications. This knowledge spans everything from standard M3 titanium screws to specialized titanium set screws.
Core Properties and Material Characteristics of Titanium Screws
High Strength-to-Weight Ratio Performance
Titanium’s material density stands at 4.51g/cm³. This positions it between aluminum and steel while delivering strength characteristics that surpass both materials in specific applications. The density translates to approximately 60% less weight than stainless steel at 8.0g/cm³ and creates a performance advantage in weight-sensitive installations. Grade 2 pure titanium achieves 70 ksi ultimate tensile strength with 50 ksi yield strength. Grade 5 Ti-6Al-4V alloy reaches 148 ksi ultimate tensile strength and 138 ksi yield. Tensile strength in titanium grades ranges from 240 MPa for softer pure variants to over 1400 MPa for high-strength alloys. This provides engineers with diverse options for load-bearing requirements.
Corrosion Resistance in Harsh Environments
Titanium forms a stable titanium dioxide oxide layer upon exposure to oxygen. This creates a protective barrier that prevents further degradation. The passive film demonstrates self-healing capabilities and reforms faster when scratched or damaged in the presence of oxygen or water. The oxide layer maintains exceptional adherence without flaking, even under high temperatures or mechanical stress. Titanium screws resist pitting and crevice corrosion in chloride-rich environments, saltwater and acidic solutions. The material exhibits chloride ion resistance 100 times greater than stainless steel, with zero measurable corrosion rates below 200°C in most acids.
Biocompatibility and Non-Magnetic Properties
Titanium screws for surgery exhibit non-toxic characteristics with excellent compatibility to human tissue and blood. This enables widespread use in titanium plates and screws for orthopedic applications. The protective oxide layer shields the bulk material from biological environments while allowing osseointegration, where bone cells attach to the implant surface. Pure titanium possesses superior biological compatibility compared to stainless steel and cobalt-chromium alloys. Just as important, titanium maintains non-magnetic properties with permeability values of 1.00005-1.0001 at 955 H.m⁻¹. This allows patients with implants to undergo MRI scans without interference or safety concerns.
Temperature Resistance Capabilities
Titanium alloys maintain structural integrity in extreme temperature ranges. High-temperature applications benefit from titanium’s oxidation resistance up to 315°C, with newer alloys performing at 600°C or higher for extended periods. The material retains 85-90% of room temperature strength at 400°C, 70-75% at 500°C, and 50-55% at 600°C. Low-temperature titanium alloys, including TA7 and TC4 increase in strength as temperature decreases. They maintain ductility and toughness at cryogenic conditions between -196°C to -253°C without cold brittleness failures.
Titanium Screw Grades and Manufacturing Technologies
Grade 2 CP Titanium for Corrosion Applications
Grade 2 represents the most frequently used commercially pure titanium and contains approximately 99% titanium with small amounts of oxygen and iron as impurities. This grade achieves ultimate tensile strength of 345 MPa minimum with yield strength of 275 MPa. Elongation of 20-30% gives it excellent formability. The material demonstrates superior resistance to chlorides, chlorite solutions, hypochlorites and wet chlorine gas due to its self-regenerating oxide layer. Chemical processing equipment, desalination plants and marine applications benefit from Grade 2’s corrosion performance in seawater at temperatures up to 315°C.
Grade 5 (Ti-6Al-4V) Alloy for High-Strength Requirements
Ti-6Al-4V has 6% aluminum and 4% vanadium, creating an alpha-beta titanium alloy that accounts for 50% of worldwide titanium usage. This grade delivers tensile strength of 895-931 MPa with yield strength of 828-862 MPa, approximately 2 times stronger than Grade 2. The alloy maintains mechanical integrity at temperatures exceeding 350°C. It provides 60% lower thermal conductivity than commercially pure grades. Aerospace turbines, medical implants requiring osseointegration, and motorsport components use Grade 5 for its strength-to-weight advantages.
Grade 7 Palladium-Enhanced Titanium
Grade 7 matches Grade 2 mechanically while incorporating palladium as an interstitial element. This establishes it as the most corrosion-resistant titanium alloy. The palladium addition boosts crevice corrosion resistance at low temperatures and high pH environments, with particular effectiveness in reducing acids . Oil and gas production equipment, chemical processing vessels and military applications use Grade 7 where extreme corrosion resistance justifies the material premium.
Production Methods: Machining, Forging and Cold Heading
CNC machining produces small batches with high dimensional accuracy and flexible design modifications, though at higher per-unit costs. Cold heading achieves material utilization rates exceeding 90%. Production speeds reach 50-150 pieces per minute for pure titanium fasteners. Thread rolling improves fatigue life substantially compared to thread cutting through work hardening and grain flow preservation. JHMIM Titanium houses three distinct production technologies under one roof and matches optimal manufacturing processes to each custom part for unmatched precision.
Quality Control and Material Testing Standards
Titanium screws undergo dimensional measurement, thread gage inspection and mechanical property testing. Aerospace and medical applications require full material traceability with certificates of conformance documenting chemical composition verification. Non-destructive testing methods including ultrasonic inspection detect internal flaws without compromising fastener integrity.
Industrial Applications Across Critical Sectors
Medical and Surgical Applications with Titanium Plates and Screws
Surgical procedures worldwide rely on titanium screws for surgery due to their osseointegration capabilities, where bone bonds to the implant surface. The global market for titanium in medical implants reached USD 518.68 million in 2022 and is projected to grow to USD 754.73 million by 2030. Orthopedic applications include hip and knee replacements, spinal fusion devices using pedicle screws and rods, and fracture fixation with titanium plates and screws. Dental implants demonstrate success rates over 95%. Over 3 million Americans have titanium dental implants, and 500,000 new implants are added each year. Titanium screws surgery applications meet ASTM F543 standards for mechanical strength, dimensional accuracy, and biocompatibility.
Aerospace and Aviation Component Assembly
Aircraft manufacturers integrate titanium fasteners throughout their designs. The Boeing 737 Dreamliner contains 15% titanium by composition. A single narrow-body commercial jet uses over one million fasteners. Aerospace titanium screws reduce aircraft weight by up to 1,814 kilograms compared to steel alternatives. This improves fuel efficiency and payload capacity. Applications span airframe structures, landing gear assemblies, engine components, and control surfaces.
Marine Engineering and Saltwater Environments
Marine installations benefit from titanium’s chloride resistance. Pipelines and fasteners achieve service lives over 30 years without external damage. Titanium fasteners resist erosion at velocities up to 120 ft/sec in seawater and maintain performance in both stagnant and flowing conditions. Shipbuilding applications include hull construction, offshore drilling platforms, propeller shafts, and heat exchangers.
Chemical Processing and Industrial Equipment
Chemical plants employ titanium fasteners in reactors, storage tanks, and piping systems that handle aggressive acids and chlorine compounds. The pharmaceutical industry uses titanium set screws in drug manufacturing equipment where biocompatibility and resistance to cleaning chemicals will give product purity.
Automotive and Motorsport Performance Applications
Racing and high-performance vehicles use m3 titanium screws through M16 sizes in engine components, exhaust manifolds, and suspension systems. Popular motorsport sizes include M6, M8, and M10 bolts. Weight reduction improves acceleration, handling, and fuel economy.
Electronics and Non-Magnetic Assembly Requirements
Non-magnetic titanium screws eliminate electromagnetic interference in avionics, MRI equipment, and precision sensors. The material’s permeability of 1.00005-1.0001 ensures compatibility with sensitive electronic assemblies and medical diagnostic equipment that require signal integrity.
Selection Criteria and Specification Considerations
Choosing the Right Grade for Your Application
Application requirements dictate grade selection. Load analysis forms the foundations of material specification. Grade 5 titanium delivers 880 MPa yield strength and 950 MPa tensile strength. Grade 2 offers 345-480 MPa at 30-40% lower cost. An M8 Grade 5 fastener with 36.6 mm² stress area supports 32,200 Newtons before deformation. Aerospace specifications limit design stress to 60-70% of yield strength. Fatigue resistance reaches 50-60% of ultimate tensile strength at 10 million cycles. Grade 7 boosts corrosion performance through palladium addition and suits aggressive chloride environments.
Standard Sizes: M3 Titanium Screws to M36 Specifications
Manufacturers supply titanium screws from M1.6 through M36. M2, M3, M4, M5, M6, M8, M10, M12, M14, M16, M20, M24, M30, and M36 represent standard offerings. M3 titanium screws employ 0.5mm thread pitch. Coarse pitch serves as default across all diameters unless fine pitch is specified.
Titanium Set Screws and Specialty Fastener Types
Metric titanium set screws include M3×6, M4×8, M5×10, and M6×8 configurations. These fasteners resist seawater corrosion up to 260°C and withstand deep-sea pressure exceeding 1 mile depth.
Cost Analysis and Long-Term Value Assessment
Grade 5 commands a 30-50% premium over Grade 2. Maintenance costs drop 30% over five years in demanding applications. JHMIM Titanium houses three production technologies under one roof and matches optimal manufacturing processes to each custom part for precision and quality across batch sizes.
Conclusion
Titanium screws deliver unmatched performance in critical industries through their superior strength-to-weight ratio and exceptional corrosion resistance. Engineers selecting from Grade 2, Grade 5, or Grade 7 specifications gain access to fastening solutions that withstand extreme environments. These screws reduce system weight by up to 45%. JHMIM Titanium houses three production technologies under one roof and matches the best manufacturing processes to each custom part. This approach ensures unique precision for small batches and high-volume production requirements.
FAQs
Q1. What makes titanium screws stronger than steel screws despite being lighter? Titanium screws are approximately 45% lighter than steel while maintaining equivalent strength due to their exceptional strength-to-weight ratio. Grade 5 titanium is 4 times stronger than 316 stainless steel, and Grade 2 offers double the strength at half the weight. This is achieved through titanium’s unique material density of 4.51g/cm³ and tensile strength ranging from 240 MPa to over 1400 MPa depending on the grade.
Q2. Can titanium screws be used in medical implants and why? Yes, titanium screws are extensively used in medical implants due to their biocompatibility and osseointegration properties. They are non-toxic and compatible with human tissue and blood, allowing bone cells to attach directly to the implant surface. Titanium screws are commonly used in orthopedic plates, spinal fusion procedures, and dental implants, with dental implants showing success rates exceeding 95%.
Q3. How do titanium screws resist corrosion in harsh environments? Titanium screws form a natural titanium dioxide oxide layer when exposed to oxygen, creating a self-healing protective barrier that prevents degradation. This passive film reforms rapidly when damaged and maintains exceptional adherence without flaking. Titanium exhibits chloride ion resistance 100 times greater than stainless steel and can service many decades in polluted seawater with zero measurable corrosion rates below 200°C in most acids.
Q4. What is the difference between Grade 2 and Grade 5 titanium screws? Grade 2 is commercially pure titanium (99% titanium) with tensile strength of 345 MPa, offering excellent corrosion resistance and formability at lower cost. Grade 5 (Ti-6Al-4V) is an alloy containing 6% aluminum and 4% vanadium, delivering approximately 2 times the strength of Grade 2 with tensile strength of 895-931 MPa. Grade 5 commands a 30-50% premium but is preferred for high-strength aerospace and performance applications.
Q5. What temperature ranges can titanium screws withstand? Titanium screws maintain structural integrity across extreme temperatures. They resist oxidation up to approximately 315°C, with newer alloys performing reliably at 600°C or higher. The material retains 85-90% of room temperature strength at 400°C and 50-55% at 600°C. At cryogenic temperatures between -196°C to -253°C, titanium alloys actually increase in strength while maintaining ductility without cold brittleness failures.
