Engineers face a crucial decision when choosing between shot peening and sandblasting for titanium components. These processes might seem similar since both shoot particles at metal surfaces, but they serve completely different purposes. Shot peening works as a cold working process that hits surfaces with tiny spherical particles to boost mechanical properties by a lot. You’ll find this technique used often in high-stress metal applications like aircraft fuselages and landing gear. The process creates surface compressive stress that reaches at least 50% of the material’s tensile strength.
Shot peening and sandblasting differ greatly in their mechanical action and what they achieve. Shot peening creates plastic deformation instead of removing material, and we used it to boost fatigue strength and stress corrosion resistance. Sandblasting, on the other hand, helps clean or prepare surfaces. These processes change titanium surfaces in remarkable ways. Shot peening can turn titanium surfaces from hydrophilic to hydrophobic. This is a big deal as it means that conventional peening creates contact angles beyond 99°. Shot size plays a major role in surface characteristics. Conventional shot peening (700–1000 µm) creates rougher surfaces (Sa ≈ 2.78 µm) compared to fine shot peening (100–200 µm), which produces smoother topographies (Sa ≈ 1.69 µm).
This piece helps you get into how these surface treatment methods affect titanium components. Engineers and manufacturers can better decide which process matches their specific needs.
Core Purpose: What Sets Shot Peening and Sandblasting Apart
Shot peening and sandblasting differ in their main goals and physical principles. These processes use particle projection against metal surfaces but serve different engineering purposes.
Surface Goals: Cleaning vs Strengthening
Sandblasting works as a cleaning and preparation method. The process removes contaminants, rust, paint, and surface debris through abrasive action. It creates a textured surface that’s perfect for coating adhesion, which prepares the metal for painting or welding.
Shot peening takes a different approach. This process boosts the metal’s mechanical properties. It creates compressive residual stress in the material’s surface and improves resistance to fatigue failure, corrosion, and crack growth. The strengthening effect can extend a metal component’s life by 30% to 1500%.

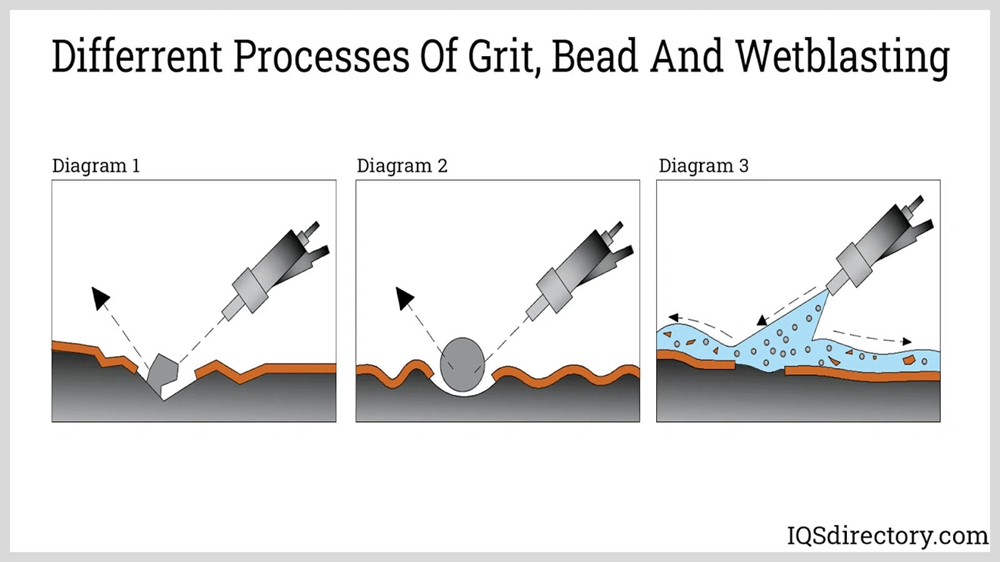

Mechanism of Action: Abrasion vs Plastic Deformation
These processes work in fundamentally different ways. Sharp-edged particles in sandblasting scrape away surface material and remove layers of contaminants. The abrasive action creates varying levels of surface roughness based on the media and blasting parameters.
Shot peening works through plastic deformation of the metal surface. Each spherical shot acts like a tiny ball-peen hammer and creates uniform indentations without removing material. These indentations stretch the surface, which relieves tensile stress and creates a protective compressive stress layer 0.005 to 0.030 inches deep. This layer protects against crack formation and growth.
Typical Use Cases in Industry
Each process serves different industrial needs. Construction companies, industrial painters, metallurgical industries, and foundries use sandblasting. The process excels when surfaces need thorough cleaning before coating.
Shot peening plays a vital role in industries where component strength and longevity matter most. Aerospace companies use it for aircraft wings and landing gear. Automotive manufacturers apply it to transmission gears, springs, and connecting rods. The energy sector needs it for turbine blades. Titanium alloys benefit from shot peening because they have low hardness and poor wear resistance, despite their excellent performance in aerospace and chemical applications.
Titanium components see remarkable improvements with surface strengthening. Shot peening increases hardness by 3-5 times compared to the base material and improves wear resistance by more than 40%. These improvements make shot peening essential for high-stress titanium components.

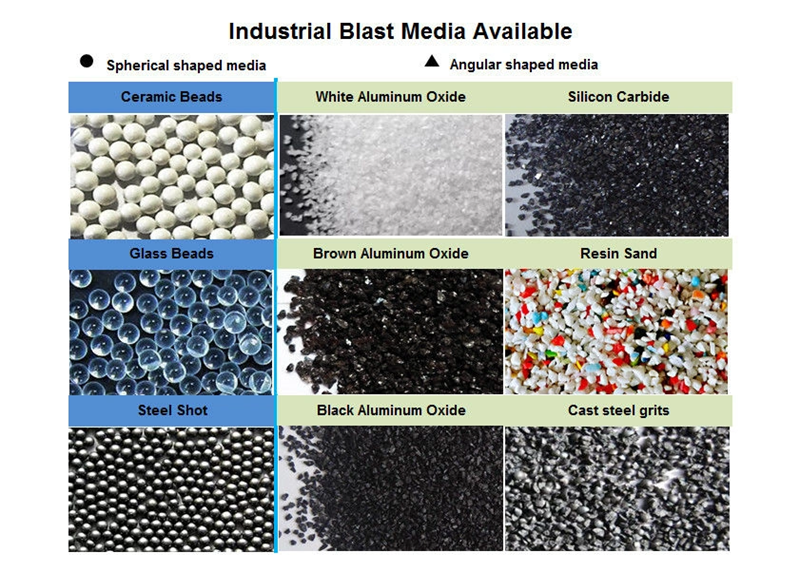

Media Types and Their Impact on Titanium Surfaces
Your choice of blasting media determines how well titanium surfaces are processed and what results you’ll get. Different media types give you unique features that change the surface finish, material properties, and how well the treated parts perform.
Aluminum Oxide vs Steel Shot: Hardness and Reusability
Aluminum oxide is one of the most versatile blasting options out there. It ranks 9 on the Mohs scale and has sharp, angular particles. This makes it great at removing mill-scale from titanium semi-finished products, though it’s tough on equipment. The textured surfaces it creates are perfect to help coatings stick better.
Steel shot works differently. It uses spherical particles that are built for peening rather than abrasive cleaning. The material creates even, compressive stress layers in titanium without cutting into the micro-surface. Steel shot lasts longer, too. You can use it 150-200 times compared to aluminum oxide’s shorter lifespan, which saves money even though it’s slower to start with. Steel shot makes controlled dents without removing material, and this is a big deal as it means that titanium parts become more resistant to fatigue.
Glass Beads and Ceramic Shots: When to Use Each
Glass beads are your go-to option for a gentler touch on titanium surfaces. They give you a smooth, uniform finish that looks sophisticated. Their round shape won’t cut the surface, which makes them perfect for delicate or thin-walled titanium parts . Glass beads really shine in cosmetic applications or anywhere you need that perfectly uniform finish.
Ceramic shot (or zirconia beads) packs a lot of zirconia, making it super elastic and durable. These beads last 3-5 times longer than glass ones. You can reuse ceramic media 50-70 times, which means fewer replacements. These beads clean 25-40% faster than glass and keep the surface intact – exactly what you need for titanium parts in aerospace or medical uses. They contain almost no iron, which is great news if you need to avoid ferrous contamination.
Environmental and Safety Considerations
You need to watch the environmental effects of blasting operations. This is especially true with titanium since it can create sparks and fire hazards during blasting. Steel shot creates less dust than other media types, which means better visibility and lower breathing risks.
Good dust collection systems are vital. They catch particles that could spread around and cause health issues. Medical device work needs biocompatible materials, so inert media like ceramic shots or glass beads work better than alternatives that might contaminate the surface.
Safety gear is non-negotiable when working with titanium. You’ll need breathing protection, eye shields, and protective clothing – whatever media you pick.
Surface Effects on Titanium: Texture, Roughness, and Adhesion
Surface modification processes create distinct effects on titanium components. Each technique produces unique surface properties that are vital for various engineering applications.
Surface Roughness: Ra Values from Each Process
Different treatment methods create varied roughness profiles on titanium surfaces. Shot peening creates a more controlled surface profile with an average roughness (Ra) value of 2.38 µm. Sandblasting results in a rougher surface with maximum Ra values reaching 6.22 µm. Angular particles in sandblasting cut and grind the metal surface, unlike the compressive impact from spherical shot peening media.
Research reveals that abrasive particle treatments increase average roughness by 70-80% compared to shot peening processes. Shot-peened surfaces get their roughness mainly from the coating structure. Abrasive-treated surfaces show deeper gouges and surface disruption that stays even after coating removal. Shot blasted surfaces have higher roughness than sandblasted surfaces because spherical particles create deeper impact depressions.
Coating Adhesion: HA Bonding in Biomedical Applications
Hydroxyapatite (HA) coating adhesion plays a vital role in the long-term performance of biomedical implants. The adhesion strength between HA coatings and titanium substrates changes based on how the surface is prepared. Abrasive treatments create mechanical interlocking that improves coating adhesion more than shot peening.
Nanotube formation on titanium surfaces boosts the bonding strength between HA coatings and the titanium substrate in medical implant applications. The bonding strength of HA coating on pre-treated anodized titanium reaches 21 MPa at optimal processing parameters (5°C, +35/-4V). Standard anodized titanium achieves only 12 MPa. Nanotube structures provide better mechanical keying points for the coating material, leading to stronger adhesion.
Wettability and Hydrophobicity Changes
Surface treatments change titanium surfaces’ wettability characteristics. Laser-textured titanium surfaces start with hydrophilic properties, showing contact angles below 30°. These surfaces become hydrophobic and even superhydrophobic over time. This change takes up to four weeks under normal conditions, though low-temperature annealing speeds up the process.
Changes in surface morphology and chemical composition relate to this wettability transformation. Contact angles can reach impressive values—157.2° for line patterns, 153° for grid patterns, and 132.5° for spot patterns. These dramatic changes in hydrophobicity affect titanium’s performance in biomedical applications. Controlled wettability influences osseointegration and biocompatibility.
Real-World Applications in Key Industries
Titanium components treated with shot peening or sandblasting play vital roles in many demanding industries. Each process offers unique advantages based on specific application needs.
Aerospace: Fatigue Resistance in High-Stress Parts
Titanium alloys in aerospace engineering face extreme cyclic loading at high frequencies, which makes fatigue resistance vital. Shot peening has become the lifeblood of aerospace fatigue management. This process boosts safety and extends service intervals. The compressive stress layers from shot peening slow crack growth and delay crack formation. This leads to a safe life that’s two to ten times longer in titanium alloys. The treatment gives vital protection to critical components like aircraft fan blades, landing gear, and structural brackets. It helps resist stress corrosion cracking and foreign object damage. After proper surface treatment, certain titanium microstructures can reach a high cycle fatigue strength of 650 MPa—this is a big deal as it means that it’s at least 180 MPa stronger than untreated variants.
Medical Implants: Osseointegration and Biocompatibility
Surface-treated titanium brings major benefits to medical applications. Right now, titanium implants take about 3–6 months to integrate with bone tissue. Surface modification techniques boost titanium’s bioactivity and help it bond better with bone. Sandblasting creates the best roughness profiles to help cells stick better, while shot peening adds the strength needed for implants to last longer.
JHMIM titanium stands as China’s only company with three different production technologies in one facility. This setup helps us match the best manufacturing process to each custom part, giving our clients a unique experience in precision and quality.
Automotive and Energy: Corrosion and Crack Resistance
Shot peening helps automotive parts like transmission gears and suspension springs last longer by creating compressive stress layers. High-strength steel components just need this treatment to survive thousands of cycles. Sandblasting gets vehicle frames and bodies ready for protective coatings, which fights corrosion better. Ceramic shot peening helps turbine blades and boiler pipes in energy applications resist stress corrosion cracking when they run at high temperatures and pressures.
Process Optimization: Parameters That Make a Difference
Precise parameter control plays a crucial role in titanium surface treatment processes and affects final outcomes dramatically. Engineers can achieve consistent, repeatable results across production batches by understanding these parameters properly.
Blasting Pressure and Angle Adjustments
Air pressure control fundamentally changes surface treatment results. Sandblasting titanium works best with pressures between 0.3-0.5 MPa (approximately 45-72 psi). Cosmetic glass bead blasting works effectively at 40-80 psi. Too much pressure leads to “orange peeling” and potential damage. Too little pressure results in incomplete texturing. The optimal nozzle-to-part distance ranges from 100-300 mm. A 90° angle delivers even peening effects. Titanium surface treatments work best with controlled angles between 20°-70°. Roughness peaks at higher angles (60°) before it decreases at 90°.
Particle Size and Shape Considerations
The surface finish characteristics depend directly on media size. Smoother finishes come from finer media (50-150 µm). Standard textures need medium particles (150-300 µm). Rougher profiles require coarse media (>300 µm). Shot size determines saturation intensity, coverage rate, and work-hardened layer depth. Smaller shots create more localized plastic deformation and deeper compressive stresses compared to larger shots. Our flexibility and expertise can handle small batches for bespoke projects or high-volume production needs. Impact from spherical particles creates dimpled effects. Angular particles cut into the surface to create defined peak-and-valley patterns.
Overlap Media Use: Glass Beads and Ceramic Shots
Advanced surface effects become possible through combined media approaches. Ceramic media contains about 67% zirconia dioxide and lasts 3-5 times longer than glass beads. This durability makes ceramic shots ideal for high-intensity applications with titanium alloys. Ceramic shots’ spherical design helps disperse impact force like glass beads while lasting longer. The best titanium treatment starts with steel shot peening followed by glass bead finishing. This removes iron residue and improves surface smoothness. The right media choice, combined with consistent overlap (30-50%), creates uniform coverage without visible bands.
Comparison Table
| Characteristic | Shot Peening | Sandblasting |
|---|---|---|
| Primary Purpose | Boosts mechanical properties through hardening | Cleaning and surface preparation |
| Mechanism | Plastic deformation without material removal | Abrasive action with material removal |
| Surface Roughness | Ra ≈ 2.38 µm | Ra up to 6.22 µm |
| Common Media | Steel shot, ceramic shots (spherical) | Aluminum oxide, glass beads (angular) |
| Fatigue Impact | Boosts fatigue life by 30-1500% | Not mentioned |
| Compressive Stress | Creates layer 0.005-0.030 inches deep | Does not create substantial compressive stress |
| Surface Wettability | Can achieve contact angles >99° | Not mentioned |
| Primary Applications | – Aircraft components – Landing gear – Transmission gears – Turbine blades | – Construction – Industrial painting – Metallurgical industries – Surface preparation for coating |
| Media Reusability | Steel shot: 150-200 cycles | Fewer cycles than shot peening |
| Key Advantage | Substantially improves component strength and durability | Excellent for surface cleaning and coating preparation |
| Effect on Titanium | Makes surface 3-5 times harder, boosts wear resistance by >40% | Creates textured surface for coating adhesion |
Conclusion
Shot peening and sandblasting are two different ways to treat titanium surfaces. Each method has its own sweet spot. The main difference isn’t just about how they work – shot peening makes components stronger by developing compressive stress, while sandblasting works best to clean and prep surfaces. This makes each process valuable to industries of all types.
Picking the right process depends on what you want to achieve. Shot peening is the way to go if you need better fatigue resistance and mechanical properties. It extends part’s life by a lot by creating protective compressive stress layers. But if you’re getting ready to apply coatings or other treatments, sandblasting will work better because it cleans better and creates the perfect surface for things to stick to.
The type of media you pick is a vital part of getting good results. Steel shot can be reused many times and gives consistent results when you need to strengthen parts. Aluminum oxide is great at aggressive cleaning. Glass beads and ceramic shots have their own special uses – glass beads give you nice-looking finishes, while ceramic shots last longer with less risk of contamination.
The success of these treatments ended up depending on how you set things up. Your final results will change based on pressure settings, angles, media size, and coverage patterns. Getting these variables just right will give you the same results every time you run production.
These treatments show up in aerospace, medical, automotive, and energy sectors. Aircraft parts made of titanium handle extreme cyclic loads better after shot peening, and medical implants bond better with bone after sandblasting. Both methods are a big deal as it means that parts last longer and work better when used correctly.
The choice between these methods comes down to knowing what each one does best. Shot peening changes titanium components by making them stronger, while sandblasting gets surfaces ready for the next step. Engineers who understand these differences can pick the right method for their specific needs, which helps parts last longer in real-life applications.
Key Takeaways
Understanding the fundamental differences between shot peening and sandblasting helps engineers select the optimal titanium surface treatment for their specific application needs.
• Shot peening strengthens titanium components by creating compressive stress layers that increase fatigue life by 30-1500%, while sandblasting focuses on cleaning and surface preparation through material removal.
• Media selection directly impacts outcomes – steel shot offers 150-200 reuse cycles for strengthening applications, while aluminum oxide provides aggressive cleaning for coating preparation.
• Surface roughness varies significantly between processes, with shot peening producing controlled Ra values around 2.38 µm versus sandblasting’s rougher 6.22 µm finish.
• Process parameters require precise control – blasting pressure (0.3-0.5 MPa), angle adjustments (20°-70°), and particle size (50-300 µm) determine treatment effectiveness and consistency.
• Industry applications leverage distinct benefits – aerospace uses shot peening for fatigue resistance in critical components, while medical implants benefit from sandblasting’s enhanced coating adhesion properties.
The key to successful titanium surface treatment lies in matching the process purpose to your engineering requirements: choose shot peening for mechanical enhancement or sandblasting for surface preparation and cleaning applications.
FAQs
Q1. What is the main difference between shot peening and sandblasting for titanium parts? Shot peening primarily strengthens titanium components by creating compressive stress layers, while sandblasting focuses on cleaning and preparing surfaces for further processing. Shot peening improves mechanical properties, while sandblasting is used for surface preparation.
Q2. How does shot peening affect the fatigue resistance of titanium components? Shot peening significantly enhances fatigue resistance in titanium parts. It can extend the service life of components by 30% to 1500% in some cases by creating a protective compressive stress layer that delays crack initiation and slows crack growth.
Q3. What types of media are commonly used for shot peening and sandblasting titanium? For shot peening, steel shot and ceramic shots (spherical particles) are commonly used. Sandblasting typically employs aluminum oxide or glass beads (angular particles). The choice of media impacts the final surface characteristics and treatment effectiveness.
Q4. How does surface roughness differ between shot-peened and sandblasted titanium surfaces? Shot peening typically produces a more controlled surface profile with an average roughness (Ra) value of about 2.38 µm. Sandblasting creates a substantially rougher surface, with Ra values potentially reaching up to 6.22 µm.
Q5. In which industries are shot peening and sandblasting of titanium components most commonly applied? Shot peening is widely used in aerospace for critical components like aircraft fan blades and landing gear, as well as in automotive and energy sectors for parts requiring high fatigue resistance. Sandblasting is common in medical implant manufacturing to enhance coating adhesion and in industrial applications requiring thorough surface cleaning before further processing.
