    Hero Image for Metal 3D Printing for the Medical Device Industry 3D printing medical technology has transformed healthcare, as more than 85% of the top 50 medical device manufacturers now use this technology to create prototypes, manufacturing aids, or end-use devices. This technology has changed both R&D and production by speeding up development cycles and cutting costs. A real-world example showed its value during the COVID-19 pandemic when a team created a 3D printed nasal swab prototype in just 12 days, which led to over 70 million COVID tests across 25 countries.

    Medical professionals keep finding new ways to use 3D printed devices, especially in orthopedic implants and surgical instruments. These devices work so well because they can be made with complex shapes and designs. Medical manufacturers often choose titanium and stainless steel for their durability, light weight, and resistance to corrosion. On top of that, processes like binder jetting have cut prototype development time from months to weeks. The cost to get started with in-house 3D printed medical equipment can be as low as $5,000, which makes this technology available to startups. The future looks bright too – experts predict the global market for medical 3D printing will grow to $32 billion by 2025 and exceed $60 billion by 2030.

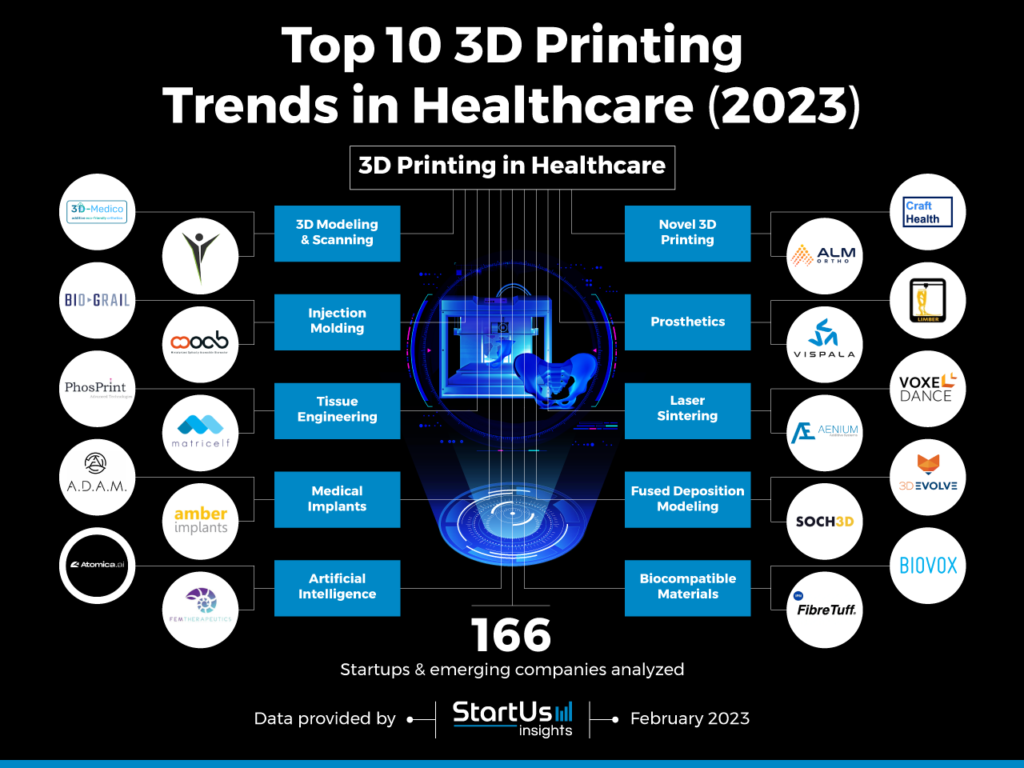

    Key Applications of Metal 3D Printing in Medical Devices


    Metal 3D printing is revolutionizing medical device manufacturing with its unmatched precision and design flexibility. This technology creates custom solutions that traditional manufacturing just can’t deliver.

    Orthopedic Implants Using Ti6Al4V

    Ti6Al4V titanium alloy stands out as the top choice for orthopedic implants thanks to its biocompatibility and mechanical properties. The selective laser melting (SLM) process creates porous structures that look just like natural bone architecture. These implants have interconnected pores ranging from 100-400 μm, which create perfect conditions for bone cells to grow. Research shows implants with 607 μm pores lead to better bone growth and stability. The unique topology of these structures helps bones grow better than traditional implants.

    Custom Surgical Instruments for Minimally Invasive Procedures

    3D printing lets doctors create custom surgical instruments that make minimally invasive procedures better. These tools blend metal and polymer parts to replace standard stainless steel instruments while offering better ergonomics. The cable-driven steerable instruments made this way give surgeons 2-DOF (degrees of freedom) movement with just one hand. Surgeons can get handles that fit their hand size perfectly, which helps them work longer without getting tired.

    3D Printed Prosthetics and Orthotics with SLS Nylon

    SLS technology has changed how we make prosthetics by creating tough, light parts at much lower costs. Regular prosthetics typically cost $1,500-$8,000, but 3D printed versions can cost as little as $50. One company printed 160 prosthetic fingers in just two days using SLS. This helps kids who quickly outgrow their prosthetics since designs can be scaled up and printed again easily.

    Hearing Aids and Dental Devices with Patient-Specific Fit

    3D printing became the go-to method for hearing aids by 2007, boosting trade by 60% and cutting production costs. The process starts with digital scans of the ear canal to create devices that fit perfectly. Better fit means better comfort and sound quality. What used to take nine steps now takes just one day to make, and almost every modern hearing aid uses 3D printing.

    Comparison of Metal 3D Printing Technologies


    Manufacturing precision varies among different metal 3D printing methods. Each method brings its benefits to medical applications. These technologies shape device functionality, production costs, and clinical performance.

    Direct Metal Laser Sintering (DMLS) vs Selective Laser Melting (SLM)

    DMLS and SLM are both powder bed fusion technologies with different performance specs. SLM uses more power (1000 watts) than DMLS (400 watts, which leads to faster production speeds. SLM machines use 12 lasers while DMLS uses 4 lasers. This makes SLM more efficient for larger production runs. DMLS achieves finer minimum feature sizes (100 microns) compared to SLM (140 microns). This makes it better for intricate medical components that need precise details. The cost difference is a big deal – DMLS systems cost between $250,000-$800,000, while SLM systems range from $400,000 to over $1 million.

    Binder Jetting vs Metal Injection Molding (MIM)

    Binder jetting adds liquid binding agents to metal powder before sintering. MIM uses traditional injection molding and then sintering. Binder jetting costs less for production runs under 20,000 pieces. It eliminates tooling costs that slow down prototyping. MIM becomes cost-effective only after 20,000 units. Binder jetting doesn’t deal very well with parts larger than 50mm because of shrinkage during sintering.

    Material Properties: Stainless Steel 17-4 vs Titanium Ti6Al4V

    17-4PH stainless steel delivers high tensile strength (up to 1100 MPa) and resists corrosion well. Ti6Al4V weighs 45% less than steel while keeping similar tensile strength around 1000 MPa. Medical applications like bone screws and joint replacements often use Ti6Al4V because of its superior biocompatibility.

    Surface Finish: 70–125 Ra in Binder Jetting vs 32–40 Ra in MIM

    These technologies produce different levels of surface smoothness. Binder jetting creates rougher surfaces (70-125 Ra) without extra processing. This happens because it applies layers between 50-100 microns high. MIM produces smoother finishes (32-40 Ra). This makes it better for medical devices where surface quality affects biological integration and helps prevent contamination.

    Benefits and Limitations in Medical Use

    Metal 3D printing has revolutionized medical manufacturing. It brings compelling benefits but also comes with technical challenges that need proper handling to succeed.

    Rapid Prototyping of Functional Medical Components

    3D printing has sped up medical device development dramatically. Companies now make prototypes twice as fast while cutting costs by 70%. Teams can produce working prototypes within hours instead of waiting weeks for traditional manufacturing. This speed helps startups, especially one medical device company made prototypes in less than 24 hours. They spent 10-20 times less money compared to outsourcing. These anatomically accurate prototypes let teams test durability, biocompatibility, and ergonomics early before regulatory submission.

    Design Freedom for Complex Geometries

    3D printing removes the usual manufacturing limits. Designers can focus on function first without worrying about manufacturing constraints. They can create complex internal channels, voids, and honeycomb structures that were impossible before. Orthopedic applications benefit from lattice structures that boost bone ingrowth. Surface textures can be engineered precisely to help osseointegration between living bone tissue and implant surfaces.

    Challenges in Micro-Component Resolution

    Metal 3D printing still has limits with micro-scale parts. Standard printers don’t deal very well with high-precision intricate components. Quality issues include dimensional variations, surface irregularities, and inconsistent layer bonding. Skilled technicians often need to machine these parts further, which can offset the initial savings. Printer build volume also limits the size of custom implants.

    Post-Processing Requirements for Biocompatibility

    Device safety depends on vital post-processing steps. Teams must remove extra metal powder, eliminate support structures, and verify dimensions before final cleaning. This process takes 3-4 days while meeting strict quality standards. Biocompatibility testing must match ISO 10993 and ISO 18562 standards based on patient contact time and type. Regulatory approval often gets delayed due to incomplete biocompatibility data. This makes standardized post-treatment protocols a necessity.

    Regulatory and Biocompatibility Considerations


    Medical device manufacturers need to follow detailed standards that balance patient safety with state-of-the-art technology in 3D printing. The path to market approval depends on the type of device and its intended use.

    ISO 10993 and ISO 18562 Testing Standards

    Biocompatibility testing is a vital requirement for regulatory submissions worldwide, which includes 510(k) and premarket approval (PMA) processes. The ISO 10993 series sets protocols to evaluate medical devices biologically. The testing needs depend on how long the device is used and where it touches the body. Some 3D printed devices must also meet ISO 18562 standards. These standards focus on breathing gas pathways that traditional biocompatibility frameworks don’t deal with very well. The standard has sections on particulate emissions, volatile organic compounds, and leachables in condensate. Each section clearly defines the maximum acceptable levels.

    FDA 21 CFR Part 820 Compliance for Metal Devices

    The FDA oversees 3D printed medical products—not the printers—through 21 CFR Part 820 quality system regulations. These rules cover “design, manufacture, packaging, labeling, storage, installation, and servicing of all finished devices intended for human use”. The FDA groups devices into three risk-based categories: Class I (low risk), Class II (moderate risk), and Class III (high risk). Higher risk means more regulatory oversight. Class III devices must submit detailed clinical data through premarket approval applications. Most Class II devices go through a 510(k) review to prove they match existing products.

    Direct vs Indirect Patient Contact Classification

    The way a device contacts patients determines what tests it needs. Devices fall into three groups: Direct Contact (touches the patient), Indirect Contact (touches fluids or materials that contact the patient), or No Contact (needs no biocompatibility testing). Direct-contact devices face tougher requirements. Before biological testing can start, materials must be analyzed under ISO 10993-18. This analysis identifies all leachable substances and checks their toxicity.

    Quality Management Systems for Medical 3D Printing

    Strong quality management systems are the life-blood of regulatory compliance for 3D printed medical devices. ISO 13485:2016 certification meets European requirements. Many organizations build their QMS frameworks based on this standard. A proper QMS needs documented procedures for design control, production specifications, and post-processing validation. Manufacturers must prove biocompatibility even with materials that printer manufacturers have tested. This requirement exists because printing settings and post-processing substantially change the device’s final properties. The manufacturers also need to track each device’s history from design through production.

    Conclusion

    The Future of Metal 3D Printing in Medical Device Manufacturing

    Metal 3D printing is pioneering medical state-of-the-art technology that revolutionizes patient care through customized implants and devices. This piece explores how technologies like SLM and DMLS create patient-specific solutions with amazing precision. Ti6Al4V implants show better osseointegration than traditional options, and custom surgical instruments lead to better procedural outcomes with their ergonomic designs.

    The advantages are clear, but challenges still exist. Manufacturing workflows become complex due to post-processing needs, especially for biocompatibility. On top of that, it faces resolution limits for micro-scale components, though this gap keeps getting smaller as technology gets better.

    High costs kept many away at first, but prices have dropped. Even smaller organizations can now afford to invest in specialized medical solutions. The market keeps growing and should hit $60 billion by 2030.

    Safety remains the priority while regulatory frameworks adapt to these new manufacturing methods. Medical device makers must now guide through ISO 10993 standards and FDA 21 CFR Part 820 requirements based on their device types.

    Metal 3D printing has altered the map of medical devices. Better resolution and lower costs will push this technology beyond what we see today. Design freedom, quick production, and custom materials make metal 3D printing crucial for future medical breakthroughs that will give patients better, more personalized care.

    FAQs

    Q1. What are the main applications of metal 3D printing in the medical device industry?

    Metal 3D printing is widely used for creating orthopedic implants, custom surgical instruments, prosthetics, orthotics, hearing aids, and dental devices. It allows for patient-specific designs and complex geometries that enhance functionality and fit.

    Q2. How does metal 3D printing compare to traditional manufacturing methods for medical devices?

    Metal 3D printing offers greater design freedom, faster prototyping, and the ability to create complex geometries. However, it can be more expensive for large-scale production and may require additional post-processing steps to ensure biocompatibility and meet regulatory standards.

    Q3. What are the key regulatory considerations for 3D printed medical devices?

    3D printed medical devices must comply with FDA 21 CFR Part 820 regulations, ISO 10993 and ISO 18562 biocompatibility standards, and undergo appropriate testing based on their classification (Class I, II, or III) and patient contact type (direct, indirect, or no contact).

    Q4. What are the challenges in using metal 3D printing for medical devices?

     Challenges include achieving micro-component resolution, ensuring consistent material properties, managing post-processing requirements, and addressing potential issues like porosity, residual stress, and surface finish. Additionally, the high initial equipment cost can be a barrier for some manufacturers.

    Q5. How is metal 3D printing impacting the future of medical device manufacturing?

     Metal 3D printing revolutionizes medical device manufacturing by enabling rapid prototyping, personalized implants, and complex designs that improve patient outcomes. As the technology advances and becomes more accessible, it is expected to play an increasingly important role in developing innovative medical solutions and enhancing personalized care.
