Titanium 3D printing plays a crucial role across various industries, including aerospace, medical, and automotive. Its unique properties, such as high strength-to-weight ratio and corrosion resistance, make it a valuable material. However, the technology faces several challenges. Common issues include designing support structures for complex geometries and managing thermal behavior to prevent warping. Addressing these challenges is essential for optimizing production efficiency and achieving high-quality results. Effective solutions can significantly enhance the performance and application of titanium 3D printing.
Key Takeaways
- Titanium 3D printing is valuable for industries like aerospace and medical due to its strength and corrosion resistance.
- Complex designs can lead to warping and increased costs; careful design consideration is essential for success.
- Software limitations can hinder the design process; using advanced tools can improve modeling for titanium parts.
- Implementing Design for Additive Manufacturing (DfAM) principles enhances part performance and reduces waste.
- High-quality titanium powder is crucial; it affects flowability and mechanical properties, impacting print success.
- Proper handling and storage of titanium powder prevent contamination and degradation, ensuring quality.
- Optimizing printing parameters and using predictive simulations can significantly reduce print failures.
- Post-processing techniques like polishing and heat treatment improve surface finish and mechanical properties.
Design and Modeling Challenges in Titanium 3D Printing
Complexity of Designs
Designing parts for titanium 3D printing often involves intricate geometries that can complicate the printing process. Complex designs may lead to several issues, including:
- Warping and poor surface quality, which can significantly affect print success rates.
- Increased production costs due to the high price of titanium powder, although 3D printing can reduce material waste for complex parts.
- Traditional manufacturing methods may prove more economical for large, simple geometries, highlighting the financial implications of design complexity.
These challenges necessitate careful consideration during the design phase to ensure successful outcomes.
Software Limitations
The software used for modeling titanium parts can also present challenges. Many design programs struggle to handle the unique requirements of titanium 3D printing. Common limitations include:
- Inadequate support for complex geometries can lead to failed prints.
- Difficulty in simulating thermal behavior, resulting in unexpected warping or cracking during the cooling process.
- Limited capabilities in optimizing designs for additive manufacturing can hinder the overall performance of the final product.
Addressing these software limitations is crucial for enhancing the design process and ensuring the manufacturability of titanium components.
Design for Additive Manufacturing (DfAM)
Implementing Design for Additive Manufacturing (DfAM) principles can significantly improve the performance and manufacturability of titanium 3D printed parts. Key principles include:
- Increased design freedom allows for innovative structures that traditional methods cannot achieve.
- Lightweighting by strategically placing material only where necessary, maintaining strength while reducing weight.
- Material efficiency through the use of internal lattice structures, which minimizes waste and enhances performance.
Adhering to DfAM guidelines can lead to improved part performance, reduced material waste, and the ability to create complex geometries that cater to specific industry needs. By leveraging the unique capabilities of titanium 3D printing, designers can optimize their creations for better functionality and efficiency.

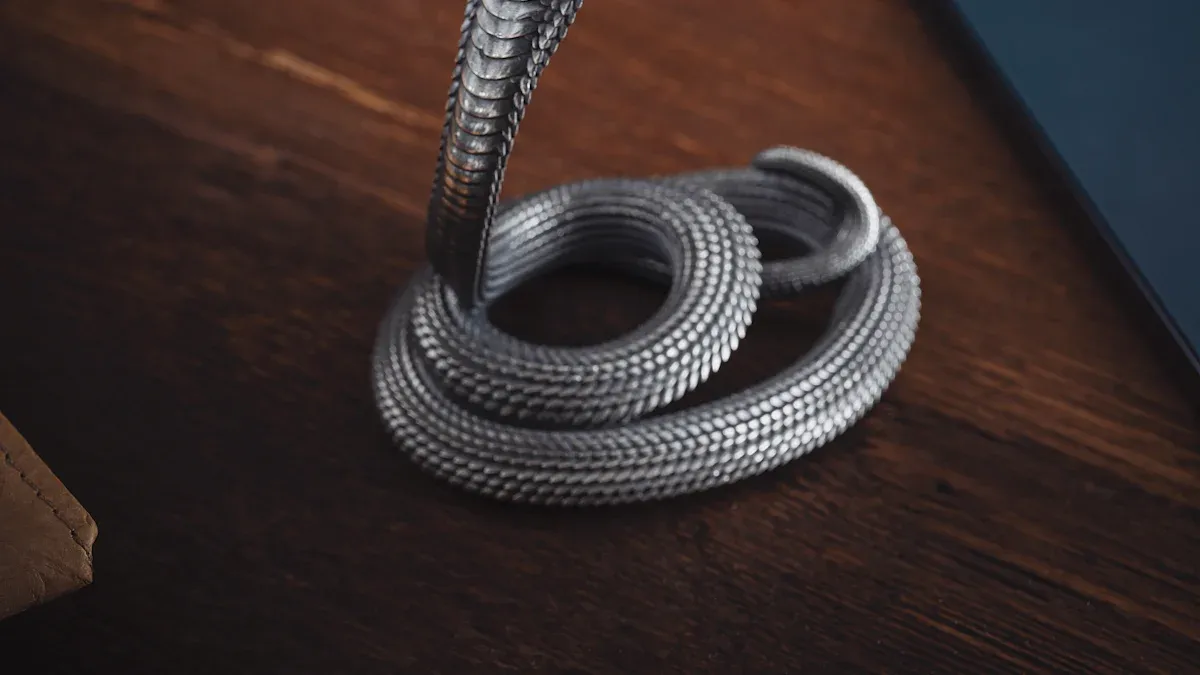

Material Preparation Issues in Titanium 3D Printing
Powder Quality
The quality of titanium powder significantly influences the success of 3D printing processes. Industry standards provide guidelines to ensure that the powder meets specific requirements. The following table outlines key standards for titanium powder quality in additive manufacturing:
| Standard | Description |
|---|---|
| ASTM F2924: 2014 | Specification for additive manufacturing titanium-6 aluminum-4 vanadium with powder bed fusion, detailing classifications, feedstock, microstructure, mechanical properties, and chemical composition. |
| ASTM F3001: 2014 | Specification for titanium-6 aluminum-4 vanadium ELI, covering materials classification, manufacturing plans, chemical composition, and quality program requirements. |
| ASTM F3049: 2014 | Guide for characterizing properties of metal powders used in additive manufacturing, including techniques for powder characterization applicable to various processes. |
To achieve optimal results, manufacturers should focus on several powder properties, including:
- Particle size, morphology, and chemical composition.
- Techniques for handling and storing powders.
- Methods for testing and ensuring powder quality.
A well-controlled particle size distribution (PSD) ensures smooth flow, reducing processing issues. For instance, a PSD of 15-45 μm improves surface finish and part density, while excessively fine powders can negatively impact flowability and increase the risk of agglomeration. Additionally, reusing titanium powders can lead to increased oxygen content, which adversely affects the mechanical properties of printed components. The presence of interstitial elements like oxygen can cause lattice expansion, resulting in increased hardness and yield strength, while decreasing ductility.
Handling and Storage
Proper handling and storage of titanium powder are crucial to prevent contamination and degradation. Here are some best practices:
- Store titanium and its alloys in sealed containers or vacuum-sealed packaging to prevent oxidation.
- Maintain a controlled environment with regulated humidity and temperature to avoid contamination.
- Transport metal powders in sealed containers to minimize exposure to moisture and contaminants.
Environmental factors such as humidity and temperature can significantly impact the quality of stored titanium powder. Maintaining oxygen concentration and humidity below 10 ppm is essential to mitigate oxidation. High humidity can cause moisture to condense on titanium powder, accelerating oxidation and leading to agglomeration of particles. It is advisable to keep the relative humidity below 30% and use desiccants to absorb moisture.
Pre-Processing Techniques
Pre-processing techniques play a vital role in preparing titanium powder for 3D printing. These techniques include:
- Sifting and sieving: This process removes oversized particles and ensures a consistent particle size distribution, which is critical for achieving uniform flow and packing density.
- Deoxygenation: Reducing the oxygen content in titanium powder enhances its mechanical properties. Techniques such as vacuum heat treatment can effectively lower oxygen levels.
- Blending: Mixing different batches of powder can help achieve a more uniform composition and improve the overall quality of the final product.
Implementing these pre-processing techniques can lead to improved powder quality and, consequently, better performance of titanium 3D printed parts.
Process-Related Failures in Titanium 3D Printing
Print Failures
Print failures in titanium 3D printing can arise from various factors, leading to wasted time and resources. Common causes include improper settings, material inconsistencies, and environmental conditions. To mitigate these issues, manufacturers can employ several effective troubleshooting methods:
| Method | Description |
|---|---|
| Predictive Simulation | Utilizes inherent strain methods and thermomechanical finite element analysis to predict part behavior during printing. |
| High Substrate Temperature | Preheating the substrate to 500°C reduces component deflection by 95%, minimizing thermal gradients and preventing cracks. |
| Advanced Support Removal | Employs specialized equipment with controlled vibration and advanced cleaning technologies to effectively remove supports. |
Implementing these strategies can significantly reduce print failures, ensuring a smoother production process.
Inconsistent Layer Adhesion
Inconsistent layer adhesion poses a significant challenge in titanium 3D printing. This issue can lead to several detrimental effects on the final product:
- Layer separation can significantly impact the structural integrity of 3D prints.
- It affects dimensional accuracy and overall functionality.
- Such issues can render the printed parts unsuitable for functional applications or end-use products.
Damage between layers initiates the destruction of 3D prints. Defects like voids and air gaps create weak points in the structure. Microscopic observations reveal local delamination, which reduces the strength of the bond between materials. To improve layer adhesion, manufacturers should focus on key process parameters:
| Process Parameter | Influence on Layer Adhesion |
|---|---|
| Beam Current and Size | Determines the energy delivered to the material, affecting density and adhesion between layers. |
| Layer Thickness | Impacts accuracy and printing time; thinner layers yield better surface finish and adhesion. |
| Number and Speed of Scans | Affects frequency and speed of beam strikes, influencing material density and inter-layer adhesion. |
| Building Direction | Influences the physical and mechanical properties of the printed titanium parts, affecting overall adhesion. |
Recent advancements, such as the use of functionalized Janus nanosheets, have shown promise in improving layer adhesion by 115.7%. These innovations enhance the melt flow rate and mechanical performance, leading to stronger, more reliable parts.
Thermal Distortion
Thermal distortion occurs due to the deformation of titanium caused by uneven heating and cooling during the 3D printing process. This issue arises particularly in metal 3D printing, where high temperatures from lasers or electron beams lead to non-uniform contraction as the material cools. Localized heating is a significant factor contributing to this distortion, which can result in dimensional inaccuracies and affect the mechanical properties of the printed parts.
To minimize thermal distortion, manufacturers should consider several strategies:
- Key process variables such as power and scanning speed significantly influence thermal distortion.
- Non-dimensional parameters like Marangoni and Fourier numbers are critical in understanding thermal strain.
Post-Processing Limitations in Titanium 3D Printing
Surface Finish Requirements
Titanium 3D printed parts often exhibit rough surfaces due to the layer-by-layer printing process. In aerospace and medical applications, these parts require specific surface finishes to meet performance and aesthetic standards. The initial roughness necessitates finishing processes to enhance overall quality.
| Print Technology | Initial Ra Values (µin) | Applications |
|---|---|---|
| DMLS | 200 – 400 | Aerospace, Medical |
| EBM | ~1000 | Aerospace, Medical |
Post-processing techniques are essential for improving the appearance, durability, and performance of titanium components. Common methods include:
- Abrasive blasting: This technique removes surface roughness and contaminants using high-speed particles.
- Polishing: Both manual and automated polishing can be employed, depending on production scale.
- Chemical etching: This method selectively removes surface material for a smoother finish.
Different post-processing techniques yield varying levels of surface roughness, impacting mechanical performance. For instance, hot isostatic pressing enhances fatigue resistance, while CNC machining achieves tight tolerances. Modern dry electropolishing can reduce surface roughness to under 0.01 microns, making it a preferred choice for high-precision applications.
Machining Challenges
Machining titanium 3D printed parts presents unique challenges. The directional properties (anisotropy) and internal stresses in printed metals complicate the machining process. Key challenges include:
- Tool wear: The hardness and abrasiveness of titanium lead to accelerated tool wear.
- Heat management: Effective heat management is crucial to maintain part integrity during machining.
- Securing complex shapes: Complex-shaped components can be difficult to secure during machining operations.
The microstructure of additively manufactured titanium alloys contributes to these challenges. Compared to wrought titanium, additively manufactured titanium exhibits a unique acicular microstructure, resulting in higher yield strength. This increased strength leads to higher cutting forces and tool wear, significantly affecting machinability.
| Aspect | Additively Manufactured Titanium | Wrought Titanium |
|---|---|---|
| Microstructure | Unique acicular microstructure | Conventional microstructure |
| Surface Roughness | 10 to 70 μm (Ra) | 0.4 to 6.3 μm (Ra) |
| Yield Strength | Higher due to rapid thermal cycles | Lower |
| Cutting Force | Increased due to higher strength | Lower |
| Tool Wear | Accelerated due to higher hardness | Reduced |
Heat Treatment Processes
Heat treatment processes play a vital role in enhancing the mechanical properties of titanium 3D printed parts. Common methods include:
| Heat Treatment Process | Description |
|---|---|
| Stress-relief annealing | Reduces residual stresses by heating the part to just below its melting point and cooling slowly. |
| Age hardening | Involves heating to promote the formation of fine precipitates, increasing hardness and strength. |
| Solution annealing | Enhances ductility and toughness by dissolving precipitates and then cooling rapidly. |
| Sintering | Increases density and strength by heating the material below its melting point to bond particles. |
| Tempering | Improves toughness and reduces brittleness by reheating hardened material to a lower temperature. |
These processes significantly influence the fatigue strength and ductility of titanium components. For example, stress-relieving minimizes residual stresses, enhancing fatigue strength. Similarly, aging alters the microstructure, improving overall mechanical properties.
Titanium 3D printing presents several challenges that manufacturers must address to optimize production efficiency and part quality. Key issues include high production costs, uneven mechanical properties, and the risk of defects such as cracking and porosity. Addressing these challenges is crucial for achieving successful outcomes in titanium 3D printing.
Implementing best practices, such as using high-quality metal powders and optimizing printing parameters, can lead to significant improvements. Manufacturers can expect benefits like reduced weight, enhanced product performance, and lower operational costs. By adopting these solutions, they can unlock the full potential of titanium 3D printing.
FAQ
What are the main advantages of titanium 3D printing?
Titanium 3D printing offers high strength-to-weight ratios, excellent corrosion resistance, and design flexibility. These properties make it ideal for aerospace, medical, and automotive applications.
How does powder quality affect titanium 3D printing?
Powder quality directly influences print success. High-quality titanium powder ensures better flowability, density, and mechanical properties, reducing the risk of defects in the final product.
What is Design for Additive Manufacturing (DfAM)?
DfAM refers to design principles that optimize parts for 3D printing. It emphasizes lightweight structures, material efficiency, and the ability to create complex geometries that traditional methods cannot achieve.
How can manufacturers reduce print failures?
Manufacturers can minimize print failures by optimizing process parameters, using predictive simulations, and preheating substrates. These strategies help ensure consistent results and reduce wasted materials.
What post-processing techniques improve titanium part quality?
Common post-processing techniques include abrasive blasting, polishing, and chemical etching. These methods enhance surface finish, durability, and overall performance of titanium components.
Why is heat treatment important for titanium 3D printed parts?
Heat treatment enhances mechanical properties by relieving residual stresses and improving ductility. Techniques like stress-relief annealing and age hardening significantly boost fatigue strength and toughness.
What challenges do manufacturers face during machining?
Machining titanium 3D printed parts presents challenges such as tool wear, heat management, and securing complex shapes. These factors complicate the machining process and require careful planning.
How can designers address thermal distortion in prints?
Designers can mitigate thermal distortion by controlling key process variables, such as power and scanning speed. Understanding thermal strain helps maintain dimensional accuracy in printed parts.
