Choosing the right surface treatment for titanium is a critical decision. It depends entirely on the desired aesthetic, functional properties, and application requirements. This decision impacts the material’s performance and longevity. Understanding the unique characteristics of each surface treatment method is essential. This post guides you through making that informed decision.
Key Takeaways
- Anodizing changes titanium’s surface into a protective oxide layer. Electroplating adds a new metal layer on top of titanium.
- Anodizing is great for medical implants and colorful designs. It makes titanium safe for the body and gives it many colors.
- Electroplating makes titanium much harder and more resistant to wear. It also improves how well titanium conducts electricity.
- Anodizing keeps titanium’s original size. Electroplating can make the surface thicker.
- Anodizing has less impact on the environment. Electroplating uses more chemicals that need careful handling.
- Choose anodizing for bright colors, medical uses, or electrical insulation. Choose electroplating for hardness, wear resistance, or better electrical flow.
- Both methods need clean surfaces before treatment. This helps the treatment work well.
- You can combine anodizing and electroplating. This creates surfaces with many benefits from both methods.
Understanding Anodizing as a Surface Treatment for Titanium
What is Titanium Anodizing?
Process Overview
Anodizing is an electrochemical process that oxidizes the surface of metals and their alloys to create a protective oxide coating. During this process, titanium acts as the anode, while other metals, such as stainless steel, serve as the cathode. An electrochemical cell, powered by a DC source and containing a specific electrolyte, facilitates the oxidation of the titanium alloy surface. This controlled oxidation forms a layer of titanium dioxide (TiO2), resulting in a durable and protective surface coating.
Types of Anodizing for Titanium
Various standards govern titanium anodizing processes, ensuring quality and performance across different applications. For instance, AMS 2488 specifies gray Type 2 coatings for aerospace, guaranteeing consistent performance in demanding environments. ASTM F86 outlines the preparation and cleaning of titanium surfaces for medical implants, while ISO 10993 assesses the biocompatibility of medical devices. These standards ensure the anodized layer meets specific requirements for thickness, color, adherence, and biological safety.
Key Benefits of Anodizing Titanium
Enhanced Corrosion Resistance
Anodized titanium exhibits significantly improved corrosion resistance compared to untreated titanium. The formed titanium dioxide layer acts as a robust barrier. Anodized samples show higher corrosion resistance in electrochemical impedance spectroscopy (EIS) results. They also display clear passivation performance without pitting corrosion and have decreased corrosion current density. For example, specific anodization processes can improve polarization resistance by 195% compared to a neat titanium sheet.
Biocompatibility for Medical Applications
The naturally occurring and anodically formed titanium dioxide layer is highly biocompatible. This property makes anodized titanium an ideal material for medical and dental implants. The surface promotes osseointegration, which is the direct structural and functional connection between living bone and the surface of a load-bearing artificial implant. This reduces the risk of adverse reactions or rejection in the human body.
Aesthetic Coloration and Decorative Uses
Titanium anodizing offers a unique ability to produce a wide spectrum of vibrant colors without using dyes or pigments. The color results from the interference of light waves reflecting off the varying thicknesses of the transparent oxide layer. This aesthetic versatility makes anodized titanium popular for decorative items, jewelry, and consumer goods where visual appeal is crucial.
Non-Additive Layer and Dimensional Stability
Anodizing converts the existing titanium surface into an oxide layer rather than adding a new material on top. This process maintains the original dimensions of the component with minimal change. The non-additive nature ensures dimensional stability, which is critical for precision parts where tight tolerances are essential.
Electrical Insulation Properties
Titanium dioxide is an electrical insulator. The anodized layer provides excellent electrical insulation properties to the titanium component. This characteristic is beneficial in applications where electrical isolation is necessary, preventing current flow through the treated surface.
Limitations of Anodizing Titanium
Limited Thickness and Wear Resistance
While anodizing enhances durability, the oxide layer typically has limited thickness. Type 2 anodizing usually produces layers of 1-5 microns, while Type 3 can reach 25-100 microns. Thicker layers offer better protection, but even these have limitations in extreme wear conditions. This means anodized titanium may not withstand severe abrasive environments as effectively as other surface treatments.
No Significant Hardness Increase
Anodizing primarily forms a protective oxide layer. It does not significantly increase the base material’s intrinsic hardness. While the oxide layer itself is hard, it is relatively thin. Therefore, the overall component does not experience a substantial increase in bulk hardness.
Challenges with Color Consistency
Achieving consistent color across multiple batches or even on different areas of a single complex part can be challenging. Factors such as electrolyte concentration, voltage, temperature, and surface finish variations influence the oxide layer’s thickness and, consequently, the resulting color. This requires precise control during the anodizing process.
Susceptibility to Abrasion
Despite improved corrosion resistance, the relatively thin anodized layer remains susceptible to abrasion and scratching under harsh mechanical contact. While it offers good protection against chemical degradation, physical wear can compromise the integrity of the oxide layer, especially in applications involving frequent friction or impact.
Ideal Applications for Anodized Titanium
Medical and Dental Implants
Anodized titanium finds extensive use in the medical and dental fields. Its exceptional biocompatibility and corrosion resistance make it a preferred material for devices implanted in the human body. Medical professionals use anodized titanium for general orthopedic implant components. In dentistry, anodized titanium is crucial for various dental implants. These include abutments, cover screws, and healing screws, which function as transgingival elements. The anodized layer promotes osseointegration, ensuring the body accepts the implant well and reducing the risk of rejection.
Aerospace Components
The aerospace industry relies heavily on anodized titanium. Components in aircraft and spacecraft require materials that withstand harsh environments. Anodized titanium offers superior corrosion resistance, protecting parts from atmospheric conditions and chemical exposure. Its lightweight nature also contributes to fuel efficiency and overall performance. Engineers use anodized titanium for structural components, fasteners, and various other parts where durability and weight are critical factors.
Consumer Goods and Jewelry
Anodized titanium’s ability to produce a wide range of vibrant colors without dyes makes it popular for consumer goods and jewelry. Manufacturers create visually appealing products like watches, eyeglasses, and decorative items. Jewelers appreciate the material’s hypoallergenic properties and its unique aesthetic appeal. The anodized layer provides a durable, scratch-resistant surface, maintaining the product’s appearance over time. This makes anodized titanium a versatile choice for designers seeking both beauty and resilience.
Architectural Elements
Architects and designers incorporate anodized titanium into modern building designs. Its excellent corrosion resistance ensures longevity, even in challenging outdoor environments. The material’s unique coloration capabilities allow for striking aesthetic effects on building facades and interior features. Anodized titanium offers a sophisticated and durable option for architectural elements, combining functional performance with contemporary design. It provides a long-lasting, low-maintenance solution for various structural and decorative applications.
Understanding Electroplating as a Surface Treatment for Titanium
What is Titanium Electroplating?
Process Overview and Mechanism
Electroplating is a process that deposits a thin layer of metal onto a conductive surface using an electric current. For titanium, this involves placing the titanium component into an electrolyte solution. The component acts as the cathode, attracting positively charged metal ions from the solution. At the cathode, reduction reactions occur; metal ions in the electrolyte are reduced and deposit onto the surface. At the anode, oxidation reactions take place. For example, oxygen evolution or metal ion oxidation can occur, depending on the electrolyte and applied potential. Often, titanium anodes are coated with catalytic materials like platinum or iridium to enhance their electrocatalytic activity.
Essential Pre-treatment Steps
Successful electroplating on titanium requires meticulous pre-treatment. Titanium’s high reactivity and tendency to form a passive oxide layer present significant adhesion challenges. Acid-based treatments, such as etching with glycol-fluoride or chromic-hydrofluoric acid, are common. However, these methods often result in poor adhesion. Alkaline-based activation offers superior adhesion. This method uses an aqueous solution containing an alkaline Group IA hydroxide and hydrogen peroxide. For instance, a solution with sodium hydroxide and hydrogen peroxide can etch the surface for about an hour at room temperature. An electrochemical treatment method also exists. This method increases the substrate surface area and provides an oxide-free surface. It involves an electrolyte and an anodic/cathodic etch/activate methodology. This promotes microetching and reduces the surface oxide, crucial for excellent adhesion.
Common Plating Materials on Titanium
Manufacturers can electroplate various metals onto titanium. These include nickel, copper, gold, silver, and chromium. The choice of plating material depends on the desired functional properties. For example, nickel enhances conductivity, while chromium provides hardness and corrosion resistance.
Key Benefits of Electroplating Titanium
Enhanced Hardness and Wear Resistance
Electroplating significantly increases the surface hardness and wear resistance of titanium components. The deposited metal layer provides a robust barrier against abrasion and erosion. This makes electroplated titanium suitable for demanding mechanical applications.
Improved Electrical Conductivity
Titanium has relatively low electrical conductivity compared to metals like copper. However, electroplating with conductive materials dramatically improves this property. Applying a thin layer of metals such as nickel or a Mixed Metal Oxide (MMO) coating significantly increases the electrical conductivity of titanium. This overcomes the problem of unstable, low-conductive oxides that naturally form on titanium surfaces.
Diverse Material Deposition
Electroplating allows for the deposition of a wide range of metals onto titanium. This versatility enables engineers to tailor the surface properties precisely. They can achieve specific characteristics not inherent to titanium itself.
Thicker and More Robust Coatings
Electroplating can produce thicker and more robust coatings compared to anodizing. These thicker layers offer enhanced protection and durability, especially in environments requiring significant resistance to wear or impact.
Aesthetic Versatility with Metallic Finishes
Electroplating provides a wide range of metallic finishes. This offers aesthetic versatility for various applications. Designers can achieve different appearances, from shiny chrome to matte gold, depending on the chosen plating material.
Limitations of Electroplating Titanium
Significant Adhesion Challenges
Electroplating on titanium faces unique challenges due to the metal’s high reactivity. Titanium tends to form a passive oxide layer. This layer impedes the adhesion of metal coatings. This requires specialized plating processes to ensure strong bonding. The passive film prevents adequate bonding of the metal coating, rendering the process ineffective without proper pre-treatment.
Potential for Hydrogen Embrittlement
Some electroplating processes can introduce hydrogen into the titanium substrate. This can lead to hydrogen embrittlement. Hydrogen embrittlement reduces the material’s ductility and strength, making it more susceptible to cracking under stress.
Environmental and Regulatory Concerns
The electroplating industry uses potentially harmful materials like nickel, cadmium, and chromium. Major laws like The Clean Air Act and The Clean Water Act regulate these emissions. Hexavalent chromium, a common plating material, is a known human carcinogen. It produces toxic waste requiring strict treatment before disposal. Authorities like the UK’s Health and Safety Executive (HSE) highly regulate its use. The EPA and OSHA also regulate the handling, storage, and waste discharge of materials used in electroplating.
Higher Cost and Process Complexity
Electroplating titanium is often more expensive and complex than anodizing. The need for specialized pre-treatment, precise control of plating parameters, and waste management contributes to higher operational costs.
Impact on Biocompatibility
Electroplated coatings can impact titanium’s inherent biocompatibility. The deposited metals may not be as biocompatible as titanium dioxide. This limits the use of electroplated titanium in medical implant applications where direct contact with human tissue is critical. This Surface Treatment method requires careful material selection for medical uses.
Ideal Applications for Electroplated Titanium
Industrial Tools and Components

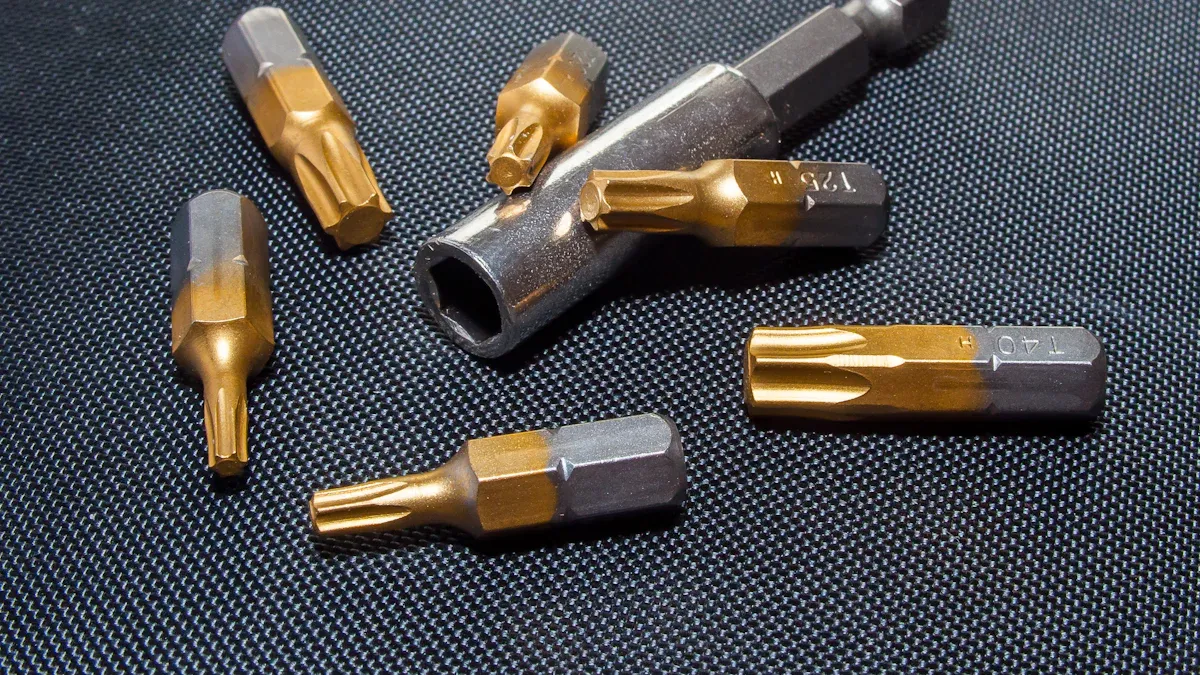

Electroplated titanium finds significant use in various industrial tools and components. Nickel plating on titanium substrates proves beneficial for high-stress industrial applications. This process enhances corrosion resistance and reduces wear susceptibility. Additionally, titanium coatings improve lubricity in moving components and enhance solderability. For instance, manufacturers apply titanium nitride coatings to cutting tools. This significantly extends their service life and improves cutting efficiency. Coating gear hobs with titanium nitride can extend their service life by three to four times. This allows for increased cutting speeds and reduced processing time and cost. These coatings also provide higher wear resistance and heat resistance.
Electrical Contacts and Connectors
Titanium’s inherent properties make it less suitable for direct electrical contact applications. However, electroplating transforms its surface. Applying highly conductive metals like gold, silver, or copper onto titanium creates excellent electrical contacts and connectors. This improves signal integrity and reduces resistance in electronic assemblies. These applications benefit from the combination of titanium’s strength and the plated material’s superior electrical properties.
Specialized Wear Parts
Electroplating enhances the durability of specialized wear parts. Components exposed to constant friction or abrasive environments benefit greatly from a hard, wear-resistant coating. For example, high-speed steel tools receive titanium nitride coatings. This enhances their performance without affecting their inherent characteristics or dimensions. The low processing temperature (around 350°C) during physical vapor deposition (PVD) ensures this. Such coatings are crucial for machinery parts that require extended operational life and reduced maintenance.
Decorative Finishes with Specific Material Properties
Electroplating offers aesthetic versatility combined with functional benefits. Designers can achieve various metallic finishes on titanium, from shiny chrome to elegant gold. This makes electroplated titanium suitable for decorative items where specific material properties are also desired. For instance, a gold-plated titanium piece offers the luxurious look of gold with titanium’s underlying strength and lightweight nature. This combination is popular in luxury goods, automotive trim, and high-end consumer electronics.
Direct Comparison of Anodizing and Electroplating Surface Treatment for Titanium
Aesthetic vs. Functional Priorities
Color and Appearance
Anodizing titanium offers a unique aesthetic. It produces a spectrum of vibrant, iridescent colors. These colors result from light interference with the transparent oxide layer. The process does not use dyes or pigments. This creates a distinct, often metallic, sheen. The final appearance depends on the oxide layer’s thickness. Electroplating, conversely, provides a wide range of metallic finishes. It deposits a new metal layer onto the titanium. This allows for finishes like shiny chrome, matte gold, or various other metallic hues. The aesthetic is determined by the chosen plating material.
Performance and Durability
Anodizing primarily enhances titanium’s inherent properties. It improves corrosion resistance and biocompatibility. It also provides electrical insulation. The anodized layer offers good protection against chemical degradation. However, its contribution to mechanical durability, such as wear resistance, is limited. Electroplating focuses on adding new functional properties. It significantly boosts hardness and wear resistance. It also improves electrical conductivity. Electroplating allows for the deposition of materials with specific performance characteristics. This makes it suitable for applications requiring robust mechanical properties.
Surface Layer Characteristics
Oxide Layer Formation (Anodizing)
Anodizing forms an integral oxide layer on the titanium surface. This process converts the existing titanium into titanium dioxide (TiO2). The oxide layer is not an added coating. It grows from the base metal itself. This ensures excellent adhesion. The layer typically ranges from a few nanometers to several micrometers in thickness. It maintains the original dimensions of the component with minimal change.
Deposited Metal Layer (Electroplating)
Electroplating creates a distinct, deposited metal layer on the titanium. This layer consists of a different material, such as nickel, copper, or chromium. The process adds this new material onto the titanium substrate. This layer is separate from the base metal. It can be significantly thicker than an anodized layer. This allows for substantial changes in the surface properties.
Durability and Wear Resistance
Anodized Titanium Wear Properties
Anodized titanium exhibits limited wear resistance. The oxide layer is hard but relatively thin. It can be susceptible to abrasion and scratching under harsh mechanical contact. While it protects against corrosion, it does not significantly increase the bulk hardness of the titanium component. Frequent friction or impact can compromise the integrity of the anodized layer.
Electroplated Titanium Wear Properties
Electroplated titanium offers significantly enhanced wear resistance. The deposited metal layer provides a robust barrier against abrasion and erosion. Materials like chromium or nickel, when electroplated, impart superior hardness to the surface. This makes electroplated titanium suitable for demanding mechanical applications. It withstands conditions involving constant friction or abrasive environments more effectively. This Surface Treatment method is ideal for parts requiring extended operational life.
Corrosion Protection Mechanisms
Environmental Impact and Regulations
Anodizing Environmental Footprint
Anodizing generally presents a lower environmental footprint compared to electroplating. The process primarily uses acids like sulfuric or phosphoric acid for the electrolyte. These acids require careful handling and disposal. However, anodizing does not typically involve heavy metals or highly toxic substances. The waste streams from anodizing often contain spent electrolyte and rinse waters. Facilities must neutralize these waste streams before discharge. They also need to remove any metal ions present. Regulations govern the discharge limits for these substances. Many anodizing facilities implement closed-loop systems. These systems recycle and reuse process water. This significantly reduces overall water consumption and waste generation. The environmental impact of anodizing is manageable with proper waste treatment and responsible operational practices.
Electroplating Waste Management
Electroplating poses more significant environmental challenges. The process frequently uses hazardous materials. These include heavy metals like nickel, chromium, and cadmium. It also involves strong acids, bases, and complexing agents. These substances generate toxic waste streams. Hexavalent chromium, a common plating material, is a known carcinogen. Its use and disposal face strict regulations worldwide. Electroplating waste includes spent plating baths, rinse waters, and sludge. These wastes often contain high concentrations of heavy metals and other pollutants. Facilities must treat these wastes extensively before disposal. This treatment involves processes like precipitation, filtration, and ion exchange. These steps remove hazardous components. Regulatory bodies like the Environmental Protection Agency (EPA) in the United States enforce stringent rules. These rules cover the handling, storage, and discharge of electroplating waste. Compliance with these regulations adds significant cost and complexity to electroplating operations. Improper waste management can lead to severe environmental contamination and legal penalties.
Making the Choice: When to Anodize and When to Electroplate Titanium for Your Surface Treatment Needs
Selecting the appropriate surface treatment for titanium requires a clear understanding of project goals. Engineers and designers must weigh aesthetic desires against functional requirements. They also consider the specific environmental conditions the component will face. This section guides decision-makers through the critical factors for choosing between anodizing and electroplating.
Choose Anodizing If…
Aesthetic Coloration is a Priority
Anodizing offers a unique method for coloring titanium. It creates a spectrum of vibrant, iridescent colors without using dyes or pigments. The oxide layer’s thickness determines the final color. This process is ideal when visual appeal is paramount. Specific applications prioritize aesthetic coloration over functional properties. These include:
- Jewelry
- Watches
- Electronic device casings
- Art & Sculptures
- Commercial Product Lines
- Novelty Items
- General Aesthetics
Biocompatibility is Crucial
Anodized titanium is highly biocompatible. The naturally formed titanium dioxide layer promotes osseointegration. This makes it an excellent choice for medical and dental implants. The body readily accepts anodized titanium. This reduces the risk of adverse reactions or rejection.
A Thin, Protective Layer is Desired
Anodizing converts the existing titanium surface into an oxide layer. This layer is typically thin, ranging from a few nanometers to several micrometers. It provides effective corrosion protection. This process is suitable when a robust, yet thin, protective barrier is needed.
Minimal Dimensional Change is Required
The anodizing process converts the base metal into an oxide. It does not add a new material on top. This ensures minimal dimensional change to the component. Precision parts with tight tolerances benefit greatly from this characteristic. The original dimensions remain largely intact.
Electrical Insulation is Needed
Titanium dioxide is an electrical insulator. The anodized layer provides excellent electrical insulation properties. This is beneficial in applications where electrical isolation is necessary. It prevents current flow through the treated surface.
Choose Electroplating If…
Enhanced Hardness or Wear Resistance is Essential
Electroplating significantly increases the surface hardness and wear resistance of titanium. The deposited metal layer provides a robust barrier against abrasion and erosion. This makes electroplated titanium suitable for demanding mechanical applications. Components withstand harsh conditions more effectively.
Specific Electrical Properties are Required
Titanium has relatively low electrical conductivity. Electroplating with conductive metals like copper, nickel, or gold dramatically improves this property. This process is crucial for applications requiring enhanced electrical performance. It ensures efficient current flow and signal integrity.
A Different Surface Material is Needed
Electroplating allows for the deposition of a wide range of metals onto titanium. This versatility enables engineers to tailor surface properties precisely. They can achieve characteristics not inherent to titanium itself. This includes magnetic properties or specific catalytic activities.
Significant Coating Thickness is Desired
Electroplating can produce thicker and more robust coatings compared to anodizing. These thicker layers offer enhanced protection and durability. This is especially true in environments requiring significant resistance to wear or impact. The added material provides a substantial protective barrier.
High Abrasion Resistance is a Key Factor
Components exposed to constant friction or abrasive environments benefit greatly from electroplating. A hard, wear-resistant coating significantly enhances durability. This extends the operational life of parts. It also reduces maintenance in machinery that experiences high wear.
Advanced Considerations for Titanium Surface Treatment
Pre-treatment and Surface Preparation
Importance for Both Processes
Effective surface treatment for titanium, whether anodizing or electroplating, relies heavily on meticulous pre-treatment and surface preparation. These initial steps are crucial. They ensure proper adhesion of the coating or oxide layer. They also guarantee the desired functional properties. Inadequate preparation leads to defects, poor performance, and premature failure of the treated component.
Specific Requirements for Titanium
Titanium’s unique properties demand specific preparation techniques. Its natural passive oxide layer must be managed effectively. For anodizing, thorough physical and chemical cleaning eliminates all contaminants. Surface inspection under controlled lighting conditions ensures cleanliness. Pre-treatment also involves chemical optimization of the surface and conductivity testing. A common sequence for preparing titanium for anodizing includes:
- Degreasing: This step removes oil from the titanium surface. It prevents uneven coloring during subsequent acid cleaning.
- Primary Acid Etching: A 5% hydrofluoric acid solution etches the titanium. This creates a pear skin texture.
- Secondary Acid Etching: After the primary etch, a mixture of hydrofluoric acid and hydrogen peroxide is applied. This removes powdery residue, stabilizes the titanium, and further cleans the surface.
Post-treatment and Sealing
Enhancing Anodized Layers
Post-treatment methods significantly enhance the durability and performance of anodized titanium layers. Chemical oxidation can restore corrosion resistance on damaged anodized titanium. This is particularly useful for localized treatments, small parts, or complex geometries where anodic oxidation might be unfeasible. It also restores mechanically disrupted oxide continuity caused by abrasions or scratches. Common reagents include alkoxides (e.g., NaOH, KOH) and hydrogen peroxide (H2O2). Chemical or thermal approaches are also implemented before or after anodization. These methods enhance the ability to form a biomimetic structure on the coating. They improve bioactivity and mechanical compatibility.
Improving Electroplated Coatings
Post-treatment for electroplated titanium often involves heat treatments or sealing processes. Heat treatments can improve the adhesion and hardness of the deposited layer. They also relieve internal stresses within the coating. Sealing processes, such as applying a clear coat or a conversion coating, enhance corrosion resistance. They also protect the electroplated surface from environmental degradation.
Emerging Technologies and Future Trends
Advanced Anodizing Techniques
New anodizing techniques are continuously improving titanium surface properties. Micro-Arc Oxidation (MAO) is an emerging method. It creates a modified ceramic coating on titanium under high temperature and pressure. This coating offers advantages like strong processing capacity and high production efficiency. MAO has been extensively researched for preparing titanium dioxide and hydroxyapatite layers. These layers enhance surface hydrophilicity for improved implant interaction and provide antibacterial properties. Titanium tetroxide anodization is also gaining traction. It offers exceptional conductivity and durability. This makes it valuable for electronic components, aerospace coatings, and precision instruments. Advancements in wear-resistant (Type-2) and color (Type-3) anodizing techniques are also ongoing. Innovations in plasma electrolytic oxidation and controlled electrolyte formulations optimize Type-2 anodizing. This makes large-scale production more economical.
Novel Electroplating Solutions for Titanium
Novel electroplating solutions are addressing current limitations in titanium surface treatment. Pulse plating techniques show significant promise. This method enables controlled deposition of metal ions. It leads to denser and more uniform coatings. Pulse plating also reduces defects and improves adhesion. This is critical for challenging titanium substrates.
Hybrid Surface Treatments
Combining Anodizing and Electroplating
Engineers often combine anodizing and electroplating to create multi-functional surfaces on titanium. This approach leverages the distinct advantages of each process. One common method involves anodizing titanium first. This forms a protective, biocompatible, or aesthetically colored oxide layer. Subsequently, manufacturers electroplate a different metal onto this anodized surface. This adds properties like enhanced hardness, wear resistance, or specific electrical conductivity. Conversely, some applications might require electroplating a base layer onto titanium. This prepares the surface for subsequent anodizing. For example, a conductive metal layer could facilitate more uniform anodizing or introduce new surface characteristics before the oxide formation. This strategic combination allows for highly customized surface engineering solutions.
Benefits of Multi-Layer Systems
Multi-layer systems offer significant advantages over single-process treatments. They provide a synergistic effect, combining the best attributes of both anodizing and electroplating.
- Enhanced Corrosion and Wear Resistance: An anodized base layer offers excellent corrosion protection. An electroplated top layer then provides superior wear resistance. This creates a highly durable surface.
- Improved Biocompatibility with Functional Properties: Anodizing ensures biocompatibility for medical devices. Electroplating can then add specific functional properties, such as radiopacity or antibacterial characteristics, without compromising the underlying biocompatibility.
- Tailored Electrical Characteristics: Anodizing provides electrical insulation. Electroplating can introduce conductive pathways or specific electrical contact properties. This allows for precise control over the material’s electrical behavior.
- Unique Aesthetic and Performance Combinations: Designers can achieve vibrant colors through anodizing. They can then apply a metallic finish via electroplating. This creates visually appealing components with robust performance.
- Overcoming Individual Limitations: Hybrid treatments mitigate the limitations of each process. For instance, electroplating can improve the wear resistance of a thin anodized layer. Anodizing can enhance the corrosion protection of certain electroplated metals.
These multi-layer systems enable the development of advanced titanium components. They meet complex performance requirements across diverse industries.
The optimal surface treatment for titanium—anodizing or electroplating—requires careful evaluation. Specific application demands for aesthetics, functional performance, and environmental considerations guide this choice. Understanding each process’s distinct advantages and limitations is key. This knowledge enables informed decisions, maximizing titanium’s potential. Engineers select the best method to achieve desired outcomes for durability, appearance, and functionality.
FAQ
What is the primary difference between anodizing and electroplating titanium?
Anodizing converts titanium’s surface into an oxide layer. This process changes the existing material. Electroplating deposits a new metal layer onto the titanium. This adds a different material to the surface.
Is anodized titanium safe for medical implants?
Yes, anodized titanium is highly biocompatible. The titanium dioxide layer promotes osseointegration. This makes it an excellent choice for medical and dental implants. The body readily accepts it.
Can electroplating titanium create different colors?
Electroplating provides a wide range of metallic finishes. It deposits metals like gold or chrome. This offers aesthetic versatility. However, it does not create the iridescent colors seen with anodizing.
Does anodizing significantly increase titanium’s hardness?
Anodizing forms a hard oxide layer. However, this layer is thin. It does not significantly increase the bulk hardness of the titanium component. It offers limited wear resistance against harsh abrasion.
Which surface treatment has a lower environmental impact?
Anodizing generally has a lower environmental footprint. It uses fewer hazardous materials. Electroplating often involves heavy metals and toxic chemicals. This requires more complex waste management.
Can engineers combine anodizing and electroplating on titanium?
Yes, engineers often combine these processes. This creates multi-functional surfaces. Anodizing can form a protective base layer. Electroplating then adds properties like enhanced hardness or specific electrical conductivity.
What are the main challenges when electroplating titanium?
Electroplating titanium faces significant adhesion challenges. Titanium’s passive oxide layer impedes bonding. This requires specialized pre-treatment. Hydrogen embrittlement is also a potential concern.
