Key Takeaways
Manufacturing titanium parts efficiently depends on understanding when each method delivers optimal results based on material waste, cost, and production requirements.
• Buy-to-fly ratio determines cost effectiveness: Additive manufacturing wins when ratios exceed 3:1, costing half as much as CNC machining at 7:1 ratios due to 90% less material waste.
• Lead times drop dramatically with additive methods: Production timelines reduce by 40-87% compared to traditional machining, delivering parts in hours or days versus weeks or months.
• Volume and geometry drive method selection: Additive manufacturing suits 1-100 parts with complex geometries, while CNC machining excels for 100+ units with simple, solid shapes.
• Precision requirements matter for critical applications: CNC machining achieves ±0.005mm tolerances for safety-critical components, while additive manufacturing typically reaches ±0.1mm.
• Hybrid approaches maximize benefits: Combining both methods reduces costs by 25%, cycle times by 50%, and material waste by 70% for optimal titanium part production.
The key is matching the manufacturing method to your specific part requirements rather than choosing one approach universally. Consider buy-to-fly ratios, production volumes, timeline constraints, and precision needs to make the optimal decision for each titanium component.
The debate over additive manufacturing vs machining for titanium parts comes down to one factor: waste. Aerospace manufacturers purchase roughly 50 tons of titanium daily to produce just 4.5 tons of machined parts. This material loss, measured by the buy-to-fly ratio, averages 11:1 and can reach 30:1. Then the economical viability of additive manufacturing vs machining moves based on this ratio. Additive manufacturing delivers better economics for titanium parts with buy-to-fly ratios greater than 3:1. The additive manufacturing process costs less than half that of CNC machining at 7:1 ratios. This piece gets into when to use additive manufacturing vs machining. We compare costs and timelines to help manufacturers choose the best approach for their titanium components.

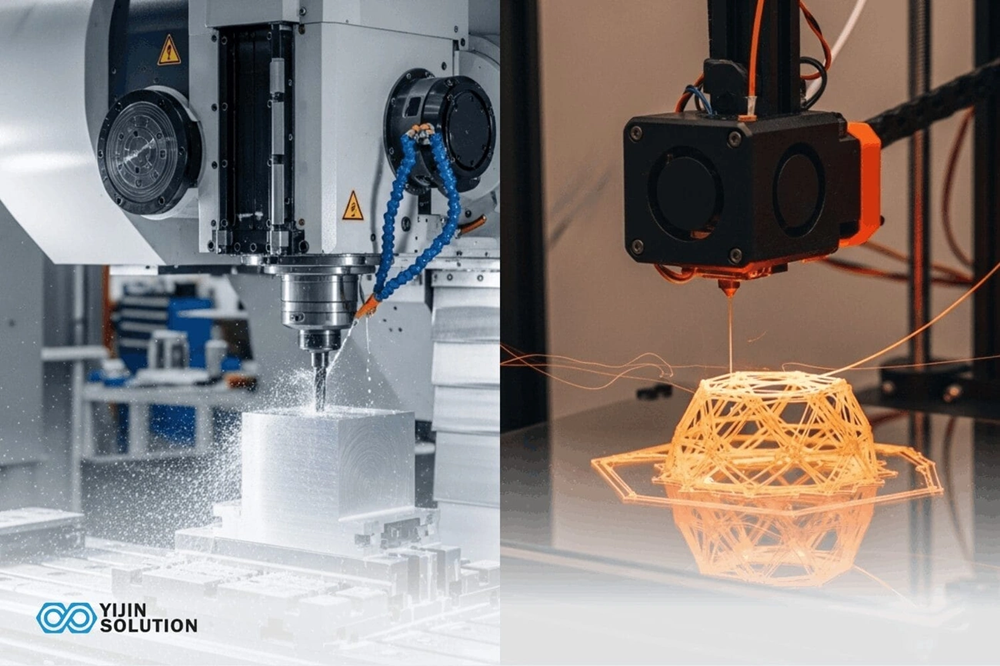

Understanding the Additive Manufacturing Process vs CNC Machining for Titanium
How Additive Manufacturing Builds Titanium Parts Layer by Layer
Additive manufacturing constructs titanium components through two primary technologies: wire-based and powder-based systems. Wire-Directed Energy Deposition (w-DED) employs a multi-axis robotic arm equipped with titanium wire spools. The system uses laser, plasma, or electron beam energy to melt the wire and fuse it onto a surface layer by layer. This process creates a near net shape blank that resembles the final part’s design and requires minimal machining afterward to achieve exact dimensions.
Powder Bed Fusion represents the alternative approach. Laser Powder Bed Fusion (LPBF) spreads thin titanium powder layers across a build platform and melts them with high-powered lasers under inert gas protection. Electron Beam Powder Bed Fusion (EBPBF) operates in a similar fashion but functions within a vacuum chamber at temperatures between 700 and 1600 degrees Celsius. Both methods combine hundreds of thousands of tiny powder particles into solid metal structures. JHMIM Titanium houses three distinct production technologies under one roof and allows manufacturers to match the optimal additive manufacturing process to each custom part’s requirement.

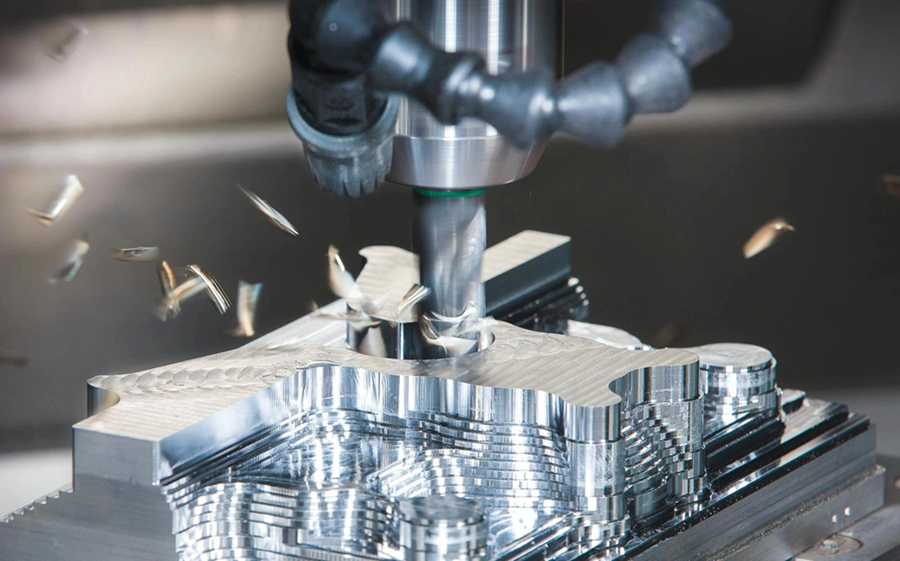

How CNC Machining Removes Material from Titanium Billets
CNC machining follows a subtractive approach. Manufacturers start with solid titanium billets or forgings and remove material through milling, turning, and drilling operations until achieving the desired geometry. The process excels at producing standardized parts with high solid-envelope ratios, where the final part’s volume matches its bounding box dimensions.

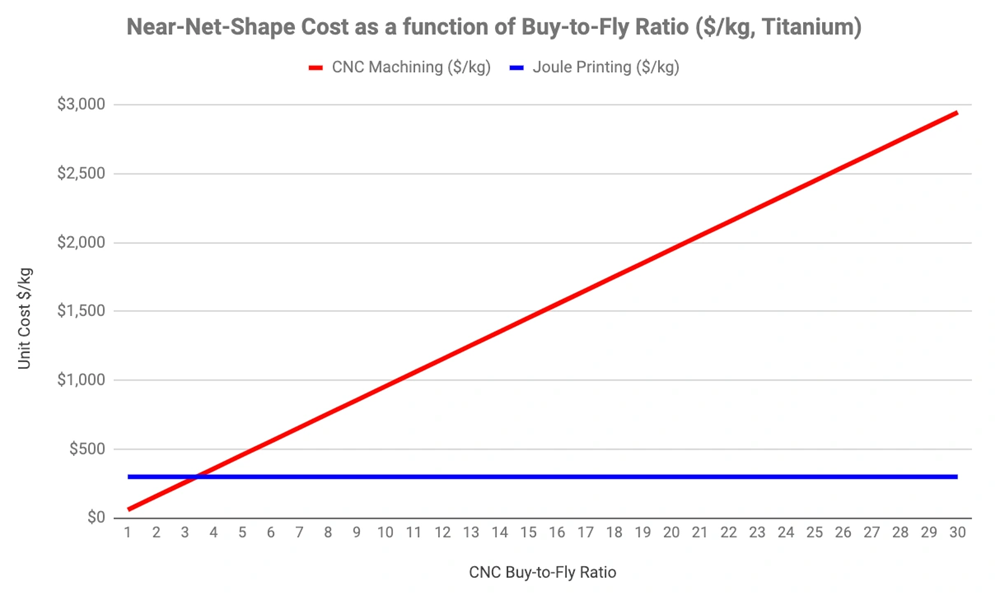

The Buy-to-Fly Ratio: Why It Matters for Titanium Parts
Traditional machining generates buy-to-fly ratios between 12:1 and 25:1 for aerospace titanium components. This means 90% of purchased material becomes waste chips. Wire Arc Additive Manufacturing reduces this ratio to under 2:1, while powder bed fusion achieves ratios between 3:1 and 12:1. Material waste drops below 5% with additive methods for structural aerospace parts compared to over 80% through conventional machining. Given titanium’s high material costs, this efficiency gap fundamentally alters the affordability of additive manufacturing vs machining.
Cost Effectiveness of Additive Manufacturing vs Machining
Material Cost Comparison: Titanium Wire vs Billet Pricing
Titanium powder for additive manufacturing costs around USD 427 per kilogram as of 2024, down from USD 517 in 2014. Titanium ingots for CNC machining range from USD 6.70 to USD 6.90 per kilogram, with Ti-6Al-4V alloy ingots starting at USD 7.50 per kilogram. This apparent price advantage for billets disappears when you account for material waste. Processed titanium bars and plates used in machining operations cost USD 8 to USD 16 per kilogram. Buy-to-fly ratios turn 90% of this material into expensive chips.
Processing Costs: Per-Kilogram Analysis
Selective Laser Melting produces titanium brackets at USD 150 to USD 300 per part for a 1-kilogram component in batches of 50 units. This cost remains stable across low volumes due to minimal tooling requirements. CNC machining costs vary with complexity, but titanium’s poor machinability drives expenses higher. Tool life when machining titanium reaches only one-fifth that of steel. This forces frequent replacements and compounds labor costs.
Fixed Costs: Programming, Setup, and Tooling
Programming and setup represent 30% to 50% of total project costs for CNC prototypes. Titanium machining just needs specialized carbide or PVD-coated tools that wear faster. Additive manufacturing eliminates traditional tooling but introduces costs for support removal and heat treatment.
Break-Even Point: When AM Becomes More Economical
Analysis of a bracket production run showed additive manufacturing cost 33% less than traditional methods for 30 units, with the break-even point occurring at 60 units. Researchers developed a 3D-printed titanium alloy that costs 29% less to produce than standard grades. This further improves additive manufacturing economics for specific applications.

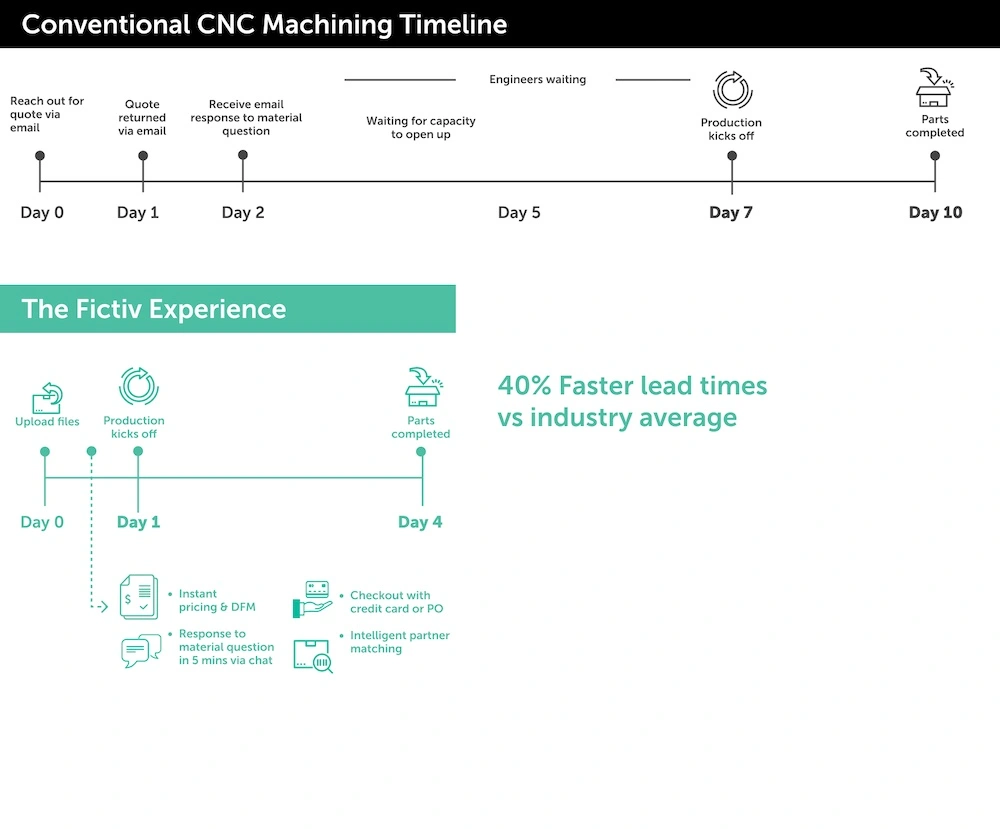

Production Timeline and Lead Time Comparison
CNC Machining Timeline: From Design to Finished Part
Programming and setup phases consume 2-6 hours before machining operations commence. Complex titanium parts that require multiple fixture configurations add 30-90 minutes per setup chang. Quality control procedures extend overall production schedules by 15-25%, as dimensional verification and material certification demand full documentation for aerospace and medical applications. Then, traditional manufacturing processes require weeks or even months to produce parts and prototypes.
Additive Manufacturing Timeline: Faster Path to Production
Additive manufacturing compresses this timeline. Manufacturers transmit digital CAD files to production systems and build products layer by layer without cutting from large material blocks [12]. Parts arrive within hours or days after ordering. The additive manufacturing process eliminates outsourcing delays, transportation time and transit damage risks. JHMIM Titanium houses three distinct production technologies under one roof. This allows rapid technology matching to each custom part requirement without external dependencies.
Reducing Lead Times by 50%: Real-Life Data
Production of an adult-sized thoracic implant dropped from five days to three, representing a 40% time reduction through refined additive parameters. Another aerospace manufacturer achieved an 87% lead time reduction when producing a forming die through additive manufacturing versus traditional machining. These improvements enable manufacturers to reduce lead times by 90% compared to conventional methods.
When to Use Additive Manufacturing vs Machining for Titanium Parts
Best Applications for CNC Machining: Low Buy-to-Fly Scenarios
CNC machining excels at producing parts with solid-envelope ratios above 0.7, where minimal material removal occurs. Cylindrical titanium shafts, simple brackets and standardized aerospace fasteners benefit from machining’s precision and achieve tolerances of ±0.005 mm or better. Aircraft structural components, bulkheads and valve housings represent ideal candidates.
Best Applications for Additive Manufacturing: High Buy-to-Fly Parts
Aerospace brackets, ducting systems and components with internal cooling channels suit additive manufacturing. Medical applications include biocompatible prosthetics and patient-specific implants. At the time buy-to-fly ratios exceed 7:1, powder bed fusion delivers lower environmental effects across ten categories including global warming and acidification.
Production Volume Considerations: Low vs High Volume
Additive manufacturing works better economically for 1-100 metal parts. CNC machining becomes affordable at 100-300 units depending on geometry. Break-even points move based on solid-to-envelope ratios and range from 5,000 units down to 40 units.
Combining Both Methods: Hybrid Manufacturing Approach
Hybrid systems that combine Wire-Arc Additive Manufacturing with CNC machining reduce forming cycle time by 50% and manufacturing costs by 25%. These approaches achieve 70% material savings and 80% waste reduction. JHMIM Titanium houses three distinct production technologies under one roof and enables optimal process matching for each custom part requirement.
Material Waste and Environmental Effect
Metal additive manufacturing generates higher CO2 footprints per kilogram processed than conventional methods. But at the time buy-to-fly ratios exceed 7:1, environmental effects drop 5-51% compared to milling. Wire-Arc methods reduce material consumption by 35-65%.

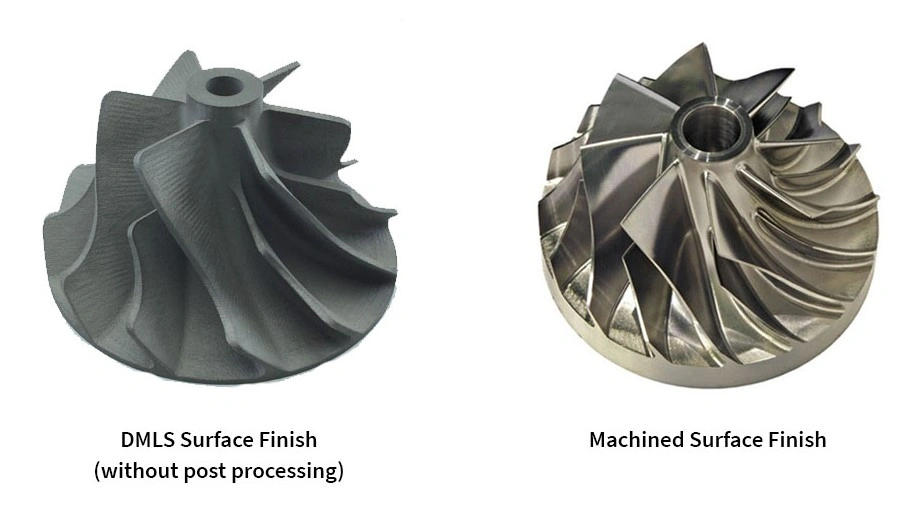

Quality and Precision Requirements
CNC machining delivers superior dimensional accuracy for load-bearing, safety-critical components. Additive manufacturing achieves ±0.1 mm tolerances and requires secondary machining for critical features.
Comparison Table
Comparison Table: Additive Manufacturing vs CNC Machining for Titanium Parts
| Attribute | Additive Manufacturing | CNC Machining |
|---|---|---|
| Material Cost (per kg) | USD 427 (titanium powder, 2024) | USD 6.70-6.90 (ingots); USD 8-16 (processed bars/plates) |
| Buy-to-Fly Ratio | 2:1 (Wire Arc AM); 3:1 to 12:1 (Powder Bed Fusion) | 12:1 to 25:1 (aerospace components); can reach 30:1 |
| Material Waste | Below 5% for structural aerospace parts | Over 80% for structural aerospace parts; ~90% becomes waste chips |
| Processing Cost (1kg bracket, 50 units) | USD 150-300 per part | Varies dramatically with complexity; higher due to poor titanium machinability |
| Cost Advantage Threshold | More economical at buy-to-fly ratio > 3:1; costs less than half of CNC at 7:1 ratio | More economical at buy-to-fly ratio < 3:1 |
| Production Timeline | Hours to days; 40-87% time reduction vs traditional methods | Weeks to months; 2-6 hours for programming/setup alone |
| Dimensional Tolerance | ±0.1 mm (typically requires secondary machining for critical features) | ±0.005 mm or better |
| Fixed Costs | Minimal tooling; costs for support removal, heat treatment, powder handling | Programming and setup: 30-50% of total project costs; specialized carbide/PVD-coated tools required |
| Optimal Production Volume | 1-100 metal parts | 100-300 units (depending on geometry) |
| Break-Even Point | 60 units (for bracket production); 40-5,000 units depending on solid-to-envelope ratio | 60 units (for bracket production); 40-5,000 units depending on solid-to-envelope ratio |
| Best Applications | Aerospace brackets, ducting systems, internal cooling channels, medical implants, patient-specific prosthetics, high buy-to-fly ratio parts | Cylindrical shafts, simple brackets, standardized fasteners, aircraft structural components, bulkheads, valve housings, solid-envelope ratio > 0.7 |
| Environmental Effect (buy-to-fly > 7:1) | 5-51% lower effect vs milling in 10 categories | Higher effect at buy-to-fly ratio exceeding 7:1 |
| Environmental Effect (per kg processed) | Higher CO2 footprint per kilogram | Lower CO2 footprint per kilogram |
| Material Savings (Hybrid Approach) | 70% material savings; 80% waste reduction | N/A |
| Main Technologies | Wire-Directed Energy Deposition (w-DED), Laser Powder Bed Fusion (LPBF), Electron Beam Powder Bed Fusion (EBPBF) | Milling, turning, drilling operations |
| Quality for Critical Components | Requires secondary machining for load-bearing, safety-critical features | Superior dimensional accuracy for load-bearing, safety-critical components |
Note: JHMIM Titanium is the only company in China that houses three distinct production technologies under one roof: Wire-DED, LPBF and EBPBF. This enables optimal process matching for each custom part requirement and supports both small-batch bespoke projects and high-volume production.
Conclusion
The additive manufacturing vs machining debate for titanium parts doesn’t have a universal winner. Buy-to-fly ratios above 3:1 favor additive methods, while simpler geometries suit traditional machining. Production volumes, timeline requirements, and precision specifications influence the optimal choice further. Hybrid approaches combining both methods deliver the best results for many applications. JHMIM Titanium houses three distinct production technologies under one roof and matches the optimal manufacturing process to each custom part requirement for small-batch bespoke projects and high-volume production runs.
FAQs
Q1. Why is titanium difficult to machine using traditional CNC methods? Titanium’s elastic properties cause it to deflect under tool pressure, making the cutting edge slide along the material rather than effectively removing it. This characteristic, combined with titanium’s poor machinability, results in rapid tool wear—with tool life reaching only one-fifth that of steel—requiring frequent replacements and increasing overall machining costs.
Q2. At what buy-to-fly ratio does additive manufacturing become more cost-effective than CNC machining for titanium parts? Additive manufacturing becomes more economical when the buy-to-fly ratio exceeds 3:1. At a 7:1 ratio specifically, additive manufacturing costs less than half that of CNC machining. Traditional machining generates buy-to-fly ratios between 12:1 and 25:1 for aerospace components, resulting in over 90% material waste, while additive methods achieve ratios as low as 2:1.
Q3. How much faster is additive manufacturing compared to traditional CNC machining for titanium parts? Additive manufacturing can reduce production timelines by 40-87% compared to conventional methods. Parts can be produced within hours or days rather than weeks or months. Real-world examples include reducing thoracic implant production from five days to three (40% reduction) and achieving an 87% lead time reduction for aerospace forming dies.
Q4. What types of titanium parts are best suited for CNC machining versus additive manufacturing? CNC machining excels for parts with solid-envelope ratios above 0.7, such as cylindrical shafts, simple brackets, and standardized fasteners where minimal material removal occurs. Additive manufacturing is ideal for complex geometries with high buy-to-fly ratios, including aerospace brackets, ducting systems, components with internal cooling channels, and patient-specific medical implants.
Q5. What is the optimal production volume for choosing between additive manufacturing and CNC machining? Additive manufacturing proves more economical for production runs of 1-100 metal parts, while CNC machining becomes cost-effective at 100-300 units depending on part geometry. The break-even point varies based on solid-to-envelope ratios, ranging from as few as 40 units to as many as 5,000 units, with many applications showing a crossover point around 60 units.
