3D printed bike components are changing the game in the cycling industry by improving performance and efficiency. Manufacturers who use additive manufacturing technology can now produce 38 components daily, which makes production 60% faster than traditional casting methods. This breakthrough has proven valuable in creating titanium bicycle frames and parts that provide exceptional strength-to-weight ratios.
Titanium alloy’s low density of 4.51 g/cm³ makes it 40% lighter than steel, which is why premium bicycle manufacturers prefer it. Companies like Hanglun use quad-laser metal 3D printing systems to produce parts in batches for high-end bicycle brands. The mechanical properties of 3D printed bikes are impressive, with tests showing 1035 MPa tensile strength, 998 MPa yield strength, and 13.5% elongation at break. These parts enable complex designs that traditional methods can’t achieve, such as built-in cooling structures that make brake calipers perform 23% better. Manufacturers can now create custom components and frames based on specific rider needs, making 3D printed bike components available in NZ and worldwide. This technology serves both large companies and small businesses in road, race, mountain, and track cycling markets.
Titanium Alloy Integration in Additive Manufacturing
Titanium alloys stand out as premier materials in bicycle manufacturing. Ti-6Al-4V (Grade 5) leads the pack as the top choice for high-performance components. The blend of these alloys with additive manufacturing technology creates new ways to build complex bike parts with unique properties.
Material Properties of Ti-6Al-4V for Bike Frames
Grade 5 titanium’s makeup combines 6% aluminum and 4% vanadium with titanium. This mix creates an alloy that packs remarkable mechanical strength. The material shows an impressive tensile strength of 1035 MPa and yield strength of 998 MPa through systems like the FS350M-4. The alloy stretches up to 13.5% before breaking, which gives it great resilience under stress. The material’s low density of 4.51 g/cm³ makes it a perfect fit for lightweight bike parts – it weighs just 60% of steel.
Titanium bike frames shine with benefits that go beyond just strength and weight. These frames resist corrosion naturally, so they don’t need protective coatings. This feature means they last way beyond the reach and influence of aluminum and steel frames. Titanium’s natural bounce helps absorb road vibrations, which gives riders a smooth experience on long trips.
Challenges in Welding and Post-Processing Titanium
Titanium comes with its share of challenges. The metal’s high melting point paired with poor heat flow makes welding tricky. Titanium loves oxygen too much – this means welding needs special controlled spaces. Any contamination leads to weak welds that might fail.
3D printed titanium parts need special care after printing. The process differs from regular welding. Some makers call it an “encircling and supporting” approach that skips areas where heat might concentrate [4]. All the same, keeping parts from warping remains tough, especially with complex pieces as thin as 0.9mm.
Comparison with Carbon Fiber and Aluminum Frames
Frame materials each tell their own story. Titanium frames keep their strength for decades, while aluminum frames tire out faster. Riders get a smoother experience than aluminum provides, and these frames handle impacts better than carbon fiber.
Carbon frames might crack from hard hits, but titanium usually just dents instead of breaking. This makes it a great choice for rough riding. The price tag runs higher than carbon or aluminum options because of complex manufacturing needs and material costs.
Hybrid Production Strategy: Casting Meets 3D Printing
Bicycle manufacturers now use both traditional casting methods and advanced additive manufacturing technologies. This combination helps them optimize costs and design flexibility in their production process.
Precision Casting for High-Volume Production
Die casting remains the foundation of mass-producing bicycle components. The process saves money when manufacturing large quantities of parts. The original die investment pays off quickly as production numbers increase. Parts come out with exact measurements and perfect dimensions. The process takes just 10-60 seconds per part, which means thousands of components roll off the line each day. Manufacturers mostly use aluminum because it resists corrosion and weighs less than other materials. These properties make it perfect for bike parts that see heavy use. Die casting works great for making complex shapes with thin walls and smooth finishes – exactly what standardized bike components need.
3D Printing for Custom and Small-Batch Components

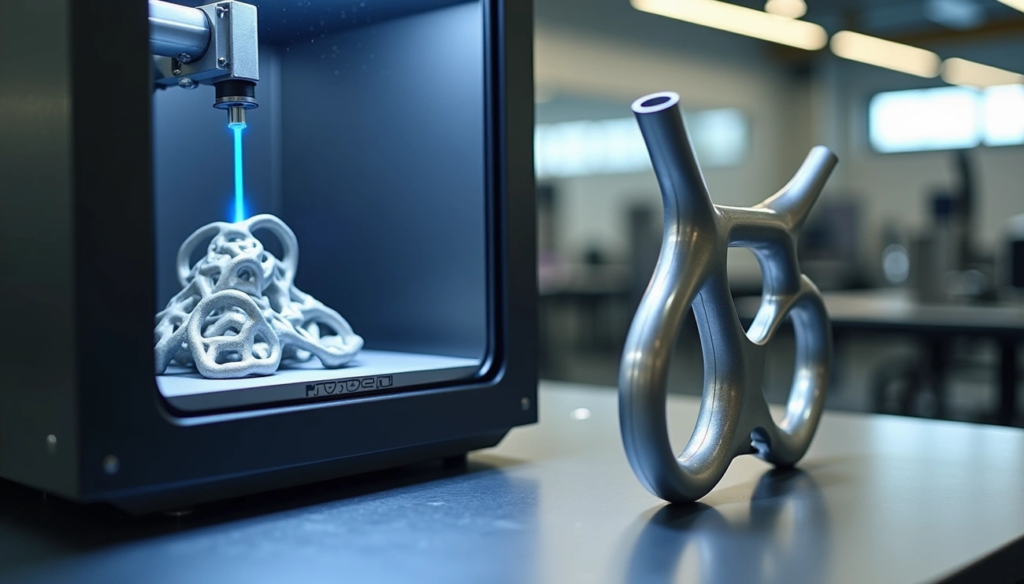

3D printing has become the go-to choice for custom and small-batch bicycle parts. This technology lets designers create complex shapes that traditional methods can’t match. RAM3D shows what’s possible – they’ve printed more than 12,000 bicycle parts using titanium and stainless steel for different manufacturers. These parts include everything from bottom brackets and brake levers to chain stays, cranks, and forks. The process also lets manufacturers tweak designs mid-production and deliver consistent results every time. Bikes can be custom-built to exact specifications, yet the process scales up easily when needed.
Batch Production with Farsoon FS350M Quad-Laser System
The Farsoon FS350M-4 quad-laser system shows what state-of-the-art batch production can do for metal bicycle components. The system’s 433 x 358 x 400 mm build space produces 38 titanium bicycle seat stay yokes daily – that’s 60% faster than traditional casting. Hanglun Technology plans to make over 50,000 titanium bicycle components each year with this system. Variable layer thickness and adaptive scanning strategies help achieve better productivity without sacrificing quality. Yanpeng Yang, Vice General Manager at Hanglun, puts it simply: “3D printing pairs perfectly with traditional precision casting. Right now, we use precision casting for big production runs and 3D printing for those smaller, custom projects”. This balanced approach creates lighter, more complex parts while cutting costs and environmental impact for small-batch production.
Design Optimization and Structural Integration

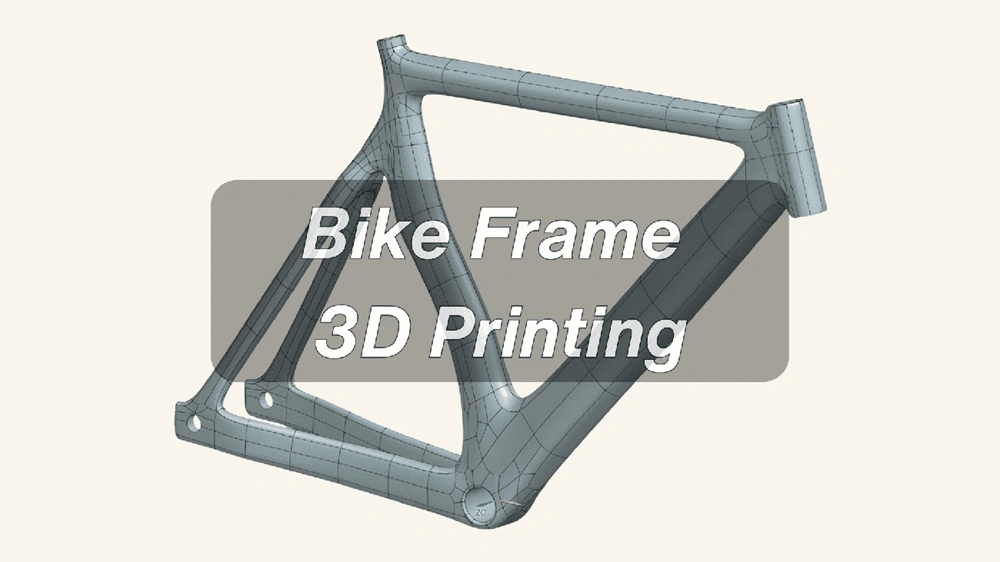

3D printing and advanced computational design tools have transformed how bike components are made. Together, they make it possible to create structures that traditional manufacturing could never achieve.
Topology Optimization for Weight Reduction
Mathematical algorithms in topology optimization find the best way to distribute material in a design space. A mountain bike stem lost 7.9% of its weight while staying just as strong through this method [14]. The process starts by defining the design space and setting material properties. Next, calculations remove extra material step by step. One team of engineers brought a bicycle stem’s weight down from 200g to 157.4g—cutting 21.3% of its weight. This math-based approach uses the least material needed while meeting strength requirements.
Part Consolidation to Eliminate Welded Joints

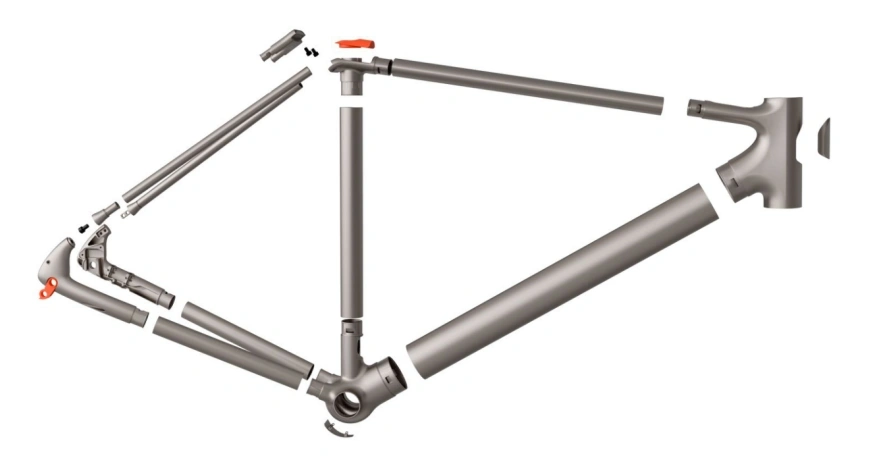

3D printing shines at turning many-part assemblies into single pieces. Regular bike frames need many welded joints that could fail. 3D printing can make frames with far fewer parts—sometimes turning more than 20 pieces into just one. Parts made this way need less assembly time, fewer stored parts, and less factory space. Best of all, these combined parts have fewer weak points and last longer than welded ones.
Flat Aero Tube Design for Seat Stay Yokes
Seat stay yokes connect seat stays to the frame and work better with 3D printing’s design freedom. Flat aero tubes in these yokes cut down air resistance and drag while riding. Titan Super Bond’s 3D-printed titanium yokes give more room for wider tires. On top of that, these streamlined designs help riders stay fresh on long trips by cutting wind resistance. These light, optimized parts reduce the bike’s weight, which helps transfer power better and makes the bike easier to handle.
Integrated Cable Routing in 3D Printed Frames

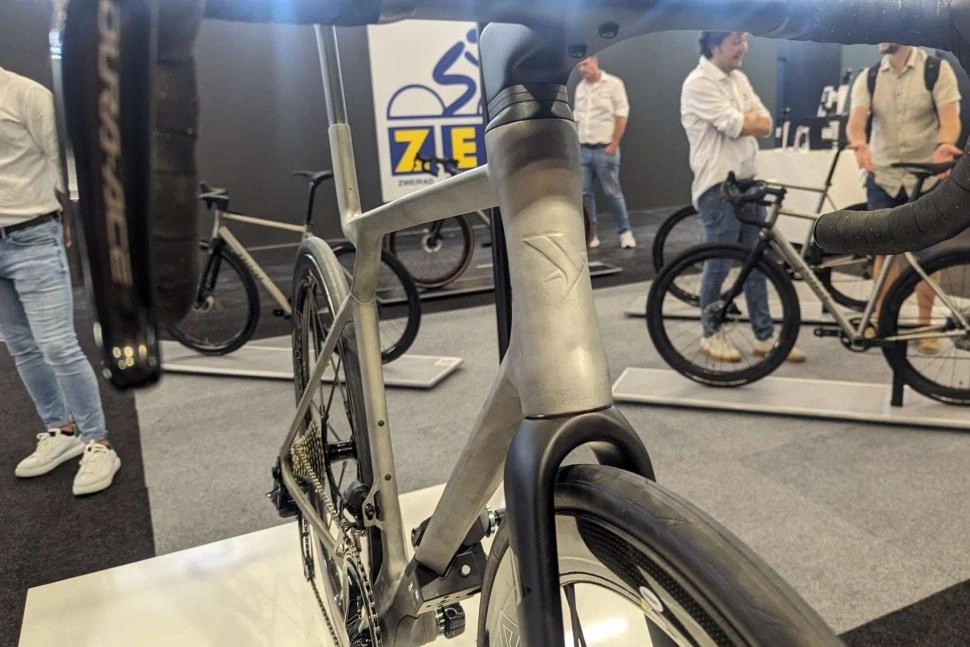

3D printing makes internal cable routing much better. Frames can now have built-in channels that keep cables inside—safe from weather and damage. This makes bikes look cleaner and helps parts last longer. Festka uses 3D printing to rethink simple frame parts. They create ways for parts to fit together while making cable installation easy. Some designs use 3D-printed titanium yokes that guide brake and derailleur housing through their structure. This shows how 3D printing makes possible what would be very hard to do with regular manufacturing.
Performance Metrics and Consumer Benefits
Lab tests show that 3D printed bike components offer real benefits beyond just looking good. These parts prove their worth with better mechanical properties and actual riding advantages.
Tensile Strength: 1035 MPa in FS350M-4 Printed Parts
Bike components made from titanium using Farsoon’s FS350M-4 system show remarkable tensile strength at 1035 MPa. This is a big deal as it means that these parts perform better than traditionally forged components. The strength-to-weight ratio you get from 3D printing titanium alloys makes these perfect for high-stress parts like bottom brackets and chain stays.
Yield Strength and Elongation at Break
The yield strength hits 998 MPa with a 13.5% elongation at break. These numbers show significant improvements over standard manufacturing methods. The combination of high yield strength and good elongation means that 3D printed bike parts stay strong under stress. They also flex enough to handle impacts well.
Better Comfort and Less Turbulence on Long Rides
Riders feel more comfortable thanks to the flat aero tube design of 3D printed titanium parts that cut down turbulence. These components reduce wheelset vibrations’ effect on the frame. Engineers can now create varying wall thicknesses in single components. This lets them fine-tune specific frame areas to dampen vibrations better. Riders feel less tired on long trips while the bike stays rigid.
3D Printed Bike Parts Price vs Traditional Manufacturing
Right now, you’ll pay premium prices for 3D printed titanium bicycle frames – anywhere from USD 3,000 to 6,000. In spite of that, these frames offer great long-term value. Titanium resists corrosion so well that these frames could last over 30 years with minimal upkeep. As more manufacturers make these parts and the technology improves, prices should drop. This will make these high-performance components available to more cyclists.
Conclusion
3D printing has revolutionized high-end bicycle component production. This breakthrough creates new possibilities for manufacturers and cyclists. The combination of titanium alloys, especially Ti-6Al-4V with its impressive strength-to-weight ratio, delivers better performance than traditional materials. A hybrid approach that combines precision casting with 3D printing helps manufacturers optimize both large-scale production and custom small-batch components.
Design freedom through 3D printing makes previously impossible features a reality. These features range from topology-optimized structures to built-in cable routing and combined parts. Such advances remove failure points and cut down overall weight. Riders get real benefits through better aerodynamics, more comfort on long rides, and better durability.
3D printed titanium components come with premium prices, but their excellent mechanical properties and decades-long lifespan make them worth the investment for dedicated cyclists. These components can handle extreme conditions while staying structurally sound, thanks to their impressive tensile strength of over 1000 MPa and substantial yield strength.
Production will become more efficient as this technology matures. Without doubt, costs will drop and make these high-performance components available to more cyclists. The bicycle industry stands at the vanguard of showing how 3D printing can change traditional products through advanced materials, better designs, and performance-focused engineering. Cycling’s future will be lighter, stronger, and more customized than ever.
Key Takeaways
Additive manufacturing is revolutionizing high-end bicycle production by combining titanium alloys with 3D printing technology to create stronger, lighter, and more customizable components than traditional methods.
• 60% efficiency boost: 3D printing produces 38 titanium bike components in 24 hours versus traditional casting methods • Superior strength: Ti-6Al-4V printed parts achieve 1035 MPa tensile strength while weighing 40% less than steel • Hybrid production strategy: Manufacturers use casting for high-volume runs and 3D printing for custom, small-batch components • Design freedom unlocks performance: Topology optimization reduces weight by 21%, while integrated features eliminate welded joints • Premium pricing with long-term value: Current costs range $3,000-6,000 but offer 30+ year lifespans with minimal maintenance
This technology enables previously impossible designs like integrated cable routing and aerodynamic structures, delivering measurable improvements in rider comfort and performance while positioning the cycling industry at the forefront of advanced manufacturing innovation.
FAQs
Q1. What are the main advantages of 3D-printed bike components? 3D printed bike components offer superior strength-to-weight ratios, enhanced design flexibility, and improved performance. They allow for complex geometries, integrated features, and customization that are difficult or impossible with traditional manufacturing methods.
Q2. How does titanium compare to other materials for bike frames? Titanium offers an excellent balance of strength, lightweight, and durability. It’s stronger than aluminum, lighter than steel, and provides better impact resistance than carbon fiber. Titanium frames also offer superior corrosion resistance and a comfortable ride quality.
Q3. Are 3D printed bike parts more expensive than traditional ones? Currently, 3D printed titanium bike components are more expensive, with frames typically costing between $3,000-$6,000. However, their long lifespan (30+ years) and minimal maintenance requirements can offset the initial cost over time.
Q4. How does additive manufacturing improve bike component design? Additive manufacturing enables topology optimization for weight reduction, part consolidation to eliminate welded joints, and integrated features like internal cable routing. These improvements result in stronger, lighter, and more aerodynamic components.
Q5. What performance benefits can riders expect from 3D-printed bike parts? Riders can expect reduced weight, improved aerodynamics, enhanced comfort on long rides, and increased durability. The ability to fine-tune specific areas of the frame also allows for better vibration damping and power transfer.
