Titanium additive manufacturing has revolutionized industrial production across aerospace, medical implants, and high-performance engineering sectors. By combining the exceptional strength-to-weight ratio and corrosion resistance of titanium alloys with modern 3D printing capabilities, engineers can now produce complex, lightweight components that were previously impossible to machine. This comprehensive guide breaks down core titanium 3D printing technologies, alloy selection, DfAM principles, and key cost factors to help you optimize your next project.
Titanium 3D Printing Technologies and Processes
Several additive manufacturing methods allow titanium component fabrication. Each method differs by energy source, operating environment and material delivery mechanism. The selection among these technologies depends on part complexity, required mechanical properties and production economics.
Selective Laser Melting (SLM) / Laser Powder Bed Fusion (LPBF)

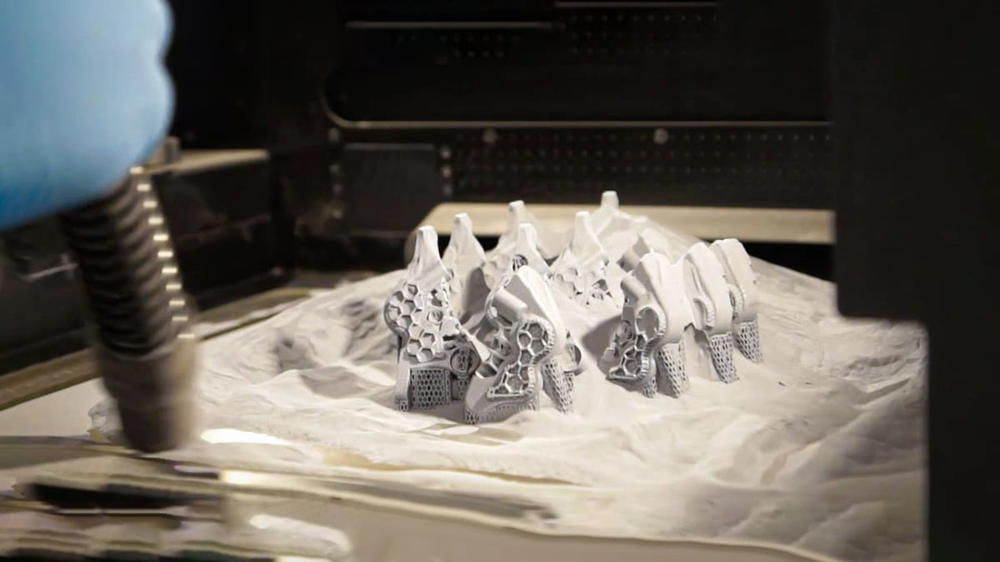

Selective laser melting uses a high-powered laser beam to selectively melt titanium powder in an inert atmosphere (argon or nitrogen) to prevent oxidation. The process operates layer-by-layer. Typical layer thicknesses range between 20 and 60 micrometers. A recoater blade spreads powder across the build platform before the laser traces the part geometry according to CAD data.
Key process parameters include laser power (100-400 W), scanning speed (200-800 mm/s) and hatch spacing (50-100 μm). The laser energy density determines densification quality. You calculate it as power divided by the product of scan speed, hatch spacing and layer thickness. LPBF titanium parts achieve relative densities exceeding 99.5% with optimized parameters.
The very high cooling rates (10³-10⁶ K/s) during LPBF result in fine martensitic microstructures in Ti-6Al-4V. This produces ultimate tensile strengths above 1000 MPa.
Electron Beam Melting (EBM) Process
Electron beam melting employs a focused electron beam as the energy source within a high-vacuum chamber. The vacuum environment eliminates atmospheric contamination, especially helpful for reactive titanium alloys. The powder bed undergoes preheating to temperatures approaching 700°C. This reduces thermal gradients and residual stresses to near-zero levels.
This raised processing temperature produces a lamellar alpha-beta microstructure rather than martensite. The result is higher ductility (10-16% elongation) compared to LPBF-processed material. EBM builds exhibit excellent fatigue properties due to minimal residual stress. The process works especially well for large structural aerospace components where stress management is critical.
Direct Energy Deposition (DED) Technology
Direct energy deposition delivers metal powder or wire through a nozzle while a laser or electron beam melts the material onto a substrate. Material deposition rates reach 3-9 kg per hour for wire-based systems. DED excels in repairing high-value components such as turbine blades and producing large-scale structures. The technology allows multi-axis fabrication and compositional grading within single parts.
Binder Jetting & Emerging Titanium AM Technologies
Binder jetting deposits liquid binder onto titanium powder layers at room temperature without a heat source. The green parts require subsequent debinding and sintering to achieve mechanical properties. Titanium binder jetting faces challenges with chemical inhomogeneity and lower mechanical performance compared to fusion-based methods. Recent developments focus on improved powder feedstocks and optimized sintering cycles to improve density and reduce distortion.
| Technology | Energy Source | Atmosphere | Best For | Typical Density |
| SLM / LPBF | Fiber Laser | Inert Gas (Argon) | Fine details, thin walls, high surface finish | > 99.5% |
| EBM | Electron Beam | High Vacuum | Stress-free parts, medical implants | > 99.3% |
| DED | Laser / Arc | Inert Shielding | Large structures, component repair | Variable |
| Binder Jetting | Chemical Binder | Ambient (Post-Sintered) | High-volume small parts, lower cost | > 97-99% |
Titanium Alloys and Materials for 3D Printing
Material selection determines final part performance in titanium 3d printing applications. Alloy composition influences mechanical properties, biocompatibility and thermal stability.
Ti-6Al-4V (Grade 5) & Ti-6Al-4V ELI (Grade 23): Industry Standards
Ti-6Al-4V accounts for more than 50% of the titanium alloy market and dominates titanium alloy 3d printing. Grade 5 contains maximum 0.20% oxygen and delivers tensile strengths of 1055-1080 MPa with 13-14% elongation. Grade 23 (ELI) limits oxygen to 0.13% maximum. This improves ductility and fracture toughness for biomedical implants while maintaining 1050 MPa tensile strength. The reduced interstitial content in Grade 23 improves fatigue resistance and biocompatibility.
Commercially Pure Titanium (CP Ti Grade 1/2) for Medical & Chemical Applications
CP titanium grades contain minimal alloying elements. They provide superior corrosion resistance and biocompatibility. Grade 2, the most common unalloyed grade, achieves 345 MPa tensile strength with 20% elongation. These grades excel in dental implants and chemical processing equipment where corrosion resistance outweighs strength requirements.
High-Temperature & Beta Titanium Alloys (Ti-6242, Ti-5553)
Ti-6Al-2Sn-4Zr-2Mo (Ti-6242) maintains mechanical strength and microstructure stability up to 550°C. This is a big deal as it means that it far exceeds Ti-6Al-4V’s 300°C limit. The near-alpha alloy demonstrates superior creep resistance for aerospace engine components. Ti-5Al-5Mo-5V-3Cr (Ti-5553), a metastable beta alloy, achieves strengths exceeding 1300 MPa through heat treatment.
Material Properties: Strength-to-Weight Ratio, Biocompatibility & Corrosion Resistance
Titanium’s density of 4.5 g/cm³ delivers strength-to-weight ratios of 300-400 MPa and surpasses steel alloys. The spontaneous formation of passive titanium oxide layers provides exceptional corrosion resistance and biocompatibility[171]. These properties enable widespread adoption in aerospace structural components and permanent medical implants.
💡 Need Custom Titanium 3D Printed Parts?
Work with our engineering team to review your CAD models, optimize for DfAM, and receive a competitive manufacturing quote within 24 hours. [Request an Instant Titanium AM Quote →]
Design Guidelines for Titanium 3D Printing (DfAM)
Successful titanium 3d printing requires adherence to geometric constraints that balance manufacturability with performance objectives. Understanding these limitations prevents build failures and excessive post-processing.
Wall Thickness, Minimum Feature Sizes, and Hole Diameters
Standard grade titanium printing accommodates minimum wall thicknesses of 1 mm. Performance grade systems achieve 0.5 mm. Structural walls and load-bearing features require 2 mm thickness to ensure mechanical integrity. Fine details down to 0.5 mm are printable, though actual achievability depends on part geometry and orientation. Hole diameters must measure at least 2 mm to enable complete powder removal from internal cavities. Complex hollow sections demand larger 7 mm diameter access ports, positioned centrally when possible.
Overhang Angles and Self-Supporting Geometries
The critical 45-degree angle relative to the build platform determines support structure requirements. Surfaces oriented below this threshold exhibit poor quality and require supports to prevent collapse and manage thermal distribution. Advanced process parameters now enable 20-degree overhangs as standard, with specialized projects achieving 10-degree angles. Documented case studies show this capability reduced production costs by 35%.
Lattice Structures and Weight Reduction Strategies
Lattice architectures deliver 50-70% weight reductions while maintaining structural performance. These cellular structures use approximately 95% of input powder and improve material efficiency compared to conventional subtractive methods.
3D Printing Titanium Cost: Key Pricing Factors
Understanding the economics of titanium additive manufacturing is critical for engineering teams transitioning from conventional subtractive processes. Titanium 3D printing costs are dictated by raw material specifications, machine run-time, and post-processing complexity.
1. Titanium Powder Material Costs & Powder Utilization
High-purity spherical titanium powder (such as gas-atomized Ti-6Al-4V) represents a significant fraction of raw production expenses. Particle size distribution (15–45 µm for SLM vs. 45–106 µm for EBM) directly influences powder pricing. Optimizing powder sieving and recycling ratios significantly reduces per-part manufacturing costs.
2. Machine Time, Layer Thickness, and Build Speed
Equipment hourly rates cover capital depreciation, inert gas consumption (Argon), and laser power usage. Printing at finer layer thicknesses (e.g., 30 µm) yields superior surface finish but increases build time. Utilizing multi-laser industrial systems accelerates deposition rates and lowers unit cost.
3. Support Structures and Material Efficiency
Overhanging features require support structures for anchoring and heat dissipation. Support design impacts cost through active powder consumption and the manual labor or secondary CNC milling required for support removal.
4. Post-Processing Expenses
Post-processing often accounts for 30% to 50% of total part cost. This includes vacuum thermal stress relief, Hot Isostatic Pressing (HIP) to eliminate internal micro-voids, and secondary CNC machining for tight-tolerance mating surfaces (+/-0.02 mm).
Industrial Applications of 3D Printed Titanium
Titanium 3D printing has transitioned from rapid prototyping to mission-critical end-use production across demanding high-performance industries.
1. Titanium 3D Printing in Aerospace & Defense
Aerospace manufacturers leverage titanium AM to achieve substantial weight reduction through topology optimization and consolidation of multi-piece assemblies. Key applications include jet engine brackets, environmental control system ducting, turbine blades, and structural airframe components requiring exceptional strength-to-weight ratios.
2. Medical and Dental Implants with Porous Structures

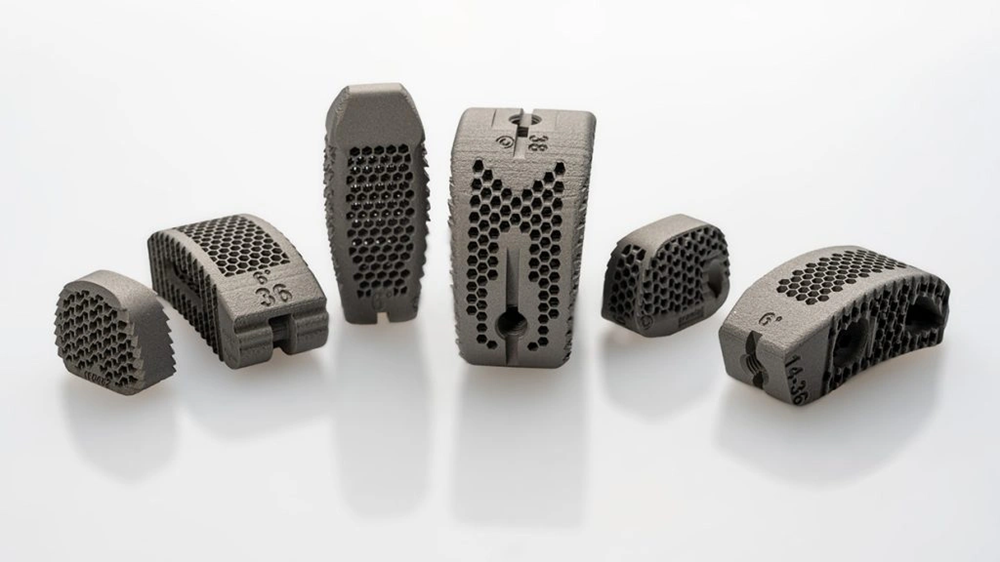

Biocompatible Ti-6Al-4V ELI and CP Titanium are widely used for orthopedic implants (hip stems, spinal cages, and cranial plates). Direct 3D printing enables trabecular porous structures that mimic natural human bone matrix, promoting rapid osseointegration and reducing stress shielding.
3. Automotive & Motorsport Lightweight Structures
In Formula 1 and hypercars, titanium 3D printing enables custom high-stress components such as brake calipers, suspension brackets, exhaust manifolds, and turbocharger impellers, significantly reducing unsprung mass without sacrificing structural integrity.
How to Choose the Right Titanium 3D Printing Service Partner
Partner selection affects final part quality, production timelines, and project economics in titanium alloy 3d printing.
Evaluating AM Equipment Capabilities and Build Volumes
Build volume constraints determine maximum part dimensions without sectioning. Standard LPBF systems accommodate 245mm x 245mm x 330mm envelopes. High-resolution configurations limit builds to 88mm x 88mm x 70mm, while large-format platforms extend capacity to 400mm x 800mm x 500mm for aerospace structural components.
Oxygen control during selective laser melting titanium processing is essential, as contamination degrades mechanical properties. Advanced systems maintain oxygen below 25 ppm through vacuum-chamber architectures.
Quality Control, Testing, and Post-Processing (HIP & CNC Machining)
Titanium 3d printed components undergo more rigorous testing than traditionally manufactured parts. Verification protocols include tensile testing, high-cycle fatigue analysis, and fracture toughness evaluation. Certifications such as ISO 9001, AS9100, and ISO 13485 demonstrate compliance with aerospace and medical manufacturing standards.
Post-processing capabilities separate qualified providers from simple fabricators. Hot isostatic pressing eliminates internal porosity at 900-1050°C under 100 MPa argon pressure. CNC machining delivers tight tolerances on surfaces where slm titanium 3d printing alone falls short.
Requesting Quotes and Design for Manufacturability (DFM) Reviews
Instant quoting platforms return binding prices and fixed delivery schedules within minutes. Engineering teams provide DFM feedback that identifies geometric concerns before production commitment[501].
Conclusion
Titanium additive manufacturing represents a major advancement in aerospace, medical and industrial sectors. This piece covered technologies from LPBF to EBM, material selection principles for Ti-6Al-4V and specialized alloys, design parameters, and partner evaluation criteria. Titanium 3D printing continues to enable complex geometries impossible through traditional methods because of its strength-to-weight ratio and biocompatibility. Engineers given this knowledge can confidently guide technology selection and optimize designs for manufacturability. They can also identify qualified service partners for successful project execution.
Ready to Manufacture Your Titanium Components?
Get full engineering support, material selection guidance, and competitive B2B pricing.Request an Instant Quote →
FAQs
Q1. Is titanium 3D printing affordable for individual hobbyists and restoration projects? Currently, titanium 3D printing remains cost-prohibitive for most individual users due to expensive equipment and material costs. However, you can access this technology by using professional 3D printing services that will manufacture custom titanium parts based on your designs. This approach is more practical than purchasing your own equipment, especially for occasional projects like creating replacement parts for vintage vehicles.
Q2. What makes metal 3D printing more expensive than traditional manufacturing? Metal 3D printing costs are driven by several factors: high-grade titanium powder materials, specialized equipment operating in controlled atmospheres (vacuum or inert gas), significant machine time for layer-by-layer fabrication, extensive post-processing requirements including heat treatment and machining, and rigorous quality control testing. The technology also requires substantial initial capital investment in industrial-grade printers and supporting infrastructure.
Q3. Can you 3D print titanium parts at home? Home-based titanium 3D printing is not practical for most individuals. The process requires industrial equipment like Selective Laser Melting or Electron Beam Melting systems, controlled atmospheric conditions, hazardous powder handling protocols, and expensive post-processing capabilities. For occasional titanium parts, sending designs to professional printing services is the most cost-effective and safe approach.
Q4. What are the main advantages of 3D printed titanium compared to traditionally manufactured titanium parts? 3D printed titanium enables complex geometries impossible with conventional methods, including internal lattice structures that reduce weight by 50-70% while maintaining strength. The technology eliminates tooling costs, enables rapid prototyping, allows for design optimization through topology optimization, and reduces material waste. Additionally, it facilitates customization for medical implants and aerospace components with patient-specific or application-specific geometries.
Q5. Which titanium alloy is most commonly used in 3D printing? Ti-6Al-4V (Grade 5) is the most widely used titanium alloy in 3D printing, accounting for over 50% of the titanium alloy market. It offers an excellent balance of strength (1055-1080 MPa tensile strength), ductility, and processability. For medical applications, Ti-6Al-4V ELI (Grade 23) is preferred due to its lower oxygen content, which enhances biocompatibility and fatigue resistance while maintaining comparable strength properties.
